Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the pressure relief valve to the right lower quarter panel.
  2. Apply pressure to the pressure release valve retainers until firmly seated.
  3. Install the right side rear compartment trim. Refer to Compartment Trim Panel Replacement - Rear .
  4. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER in Bumpers.
  5. Close the rear compartment.

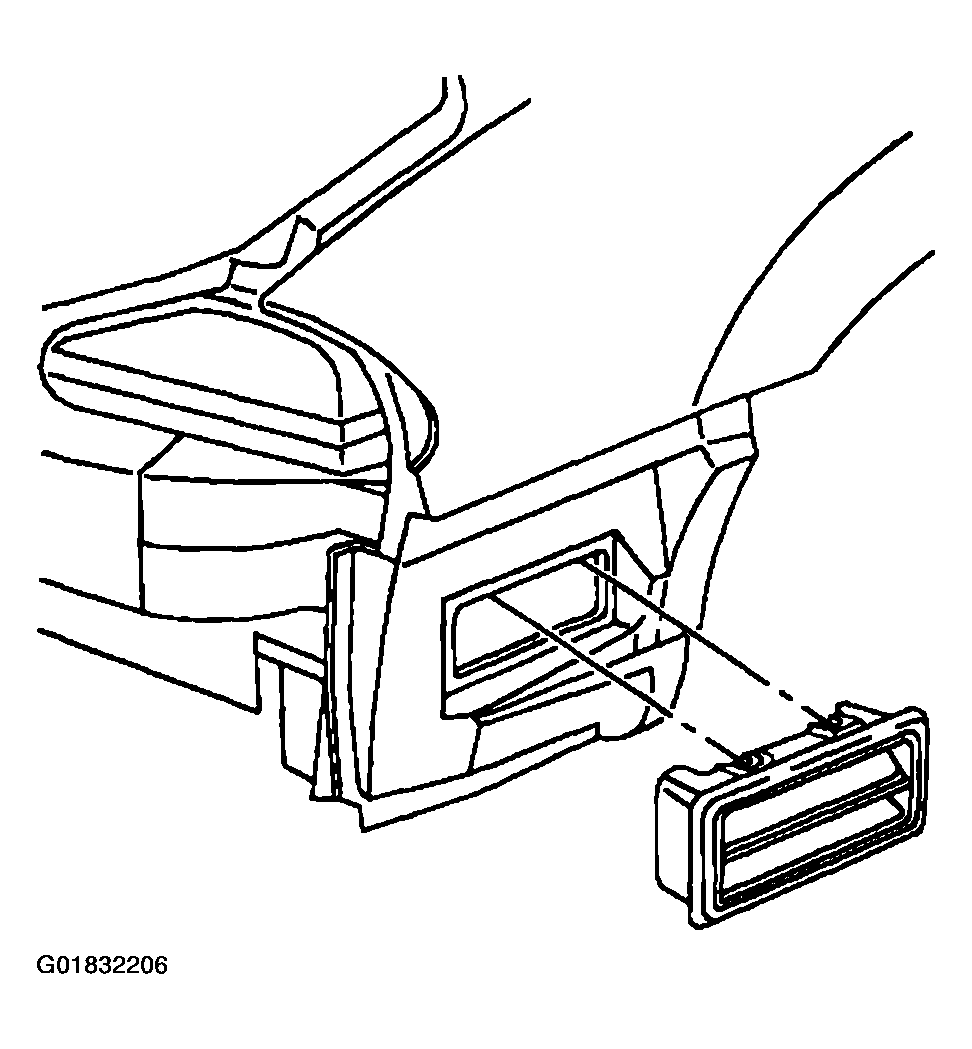

    Fig 1: Installing Pressure Relief Valve To Right Lower Quarter Panel
    G01832206Courtesy of GENERAL MOTORS CORP.
