Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear compartment lid lock cylinder actuator cable from the rear compartment lid lock cylinder.
  3. Remove the rear compartment lid lock cylinder to rear compartment lid retainer.

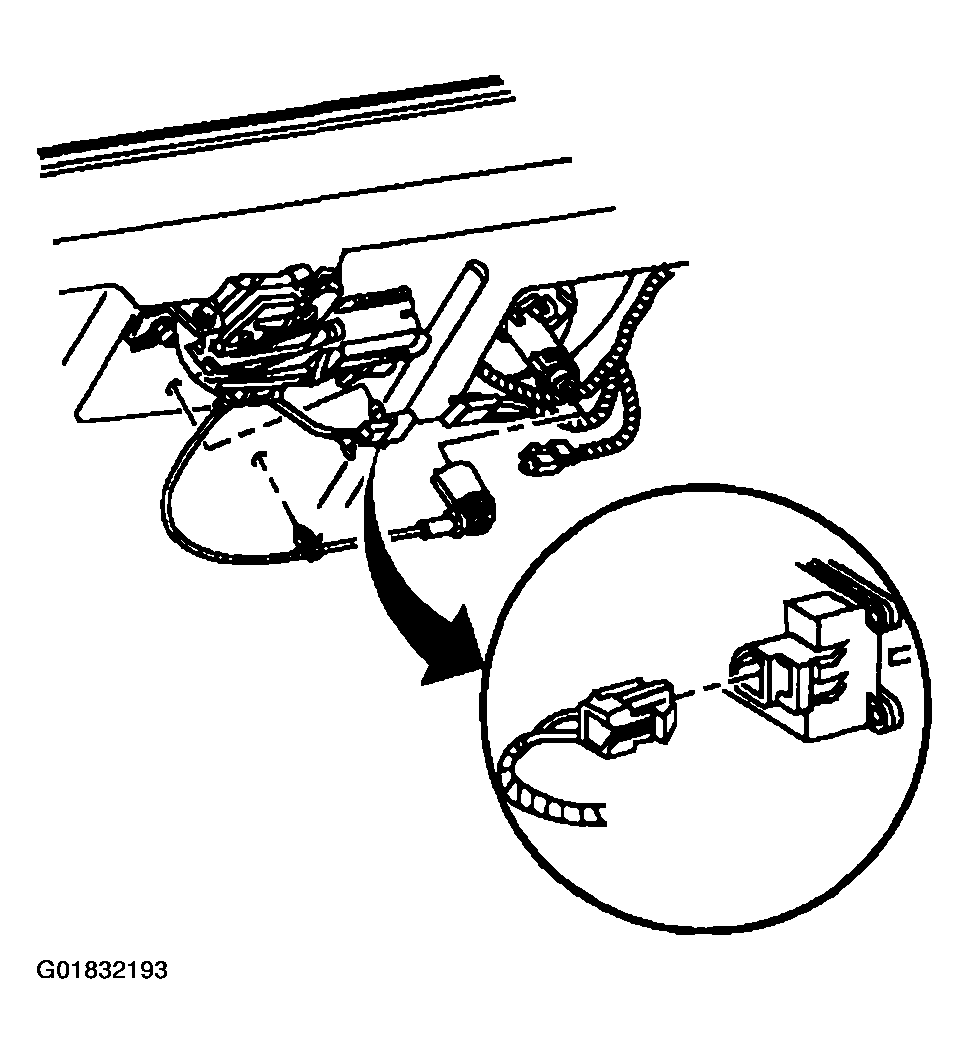

    Fig 1: Removing Rear Compartment Lid Lock Cylinder Actuator Cable From Rear Compartment Lid Lock Cylinder
    G01832193Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear compartment lid lock cylinder and gasket from the rear compartment lid.

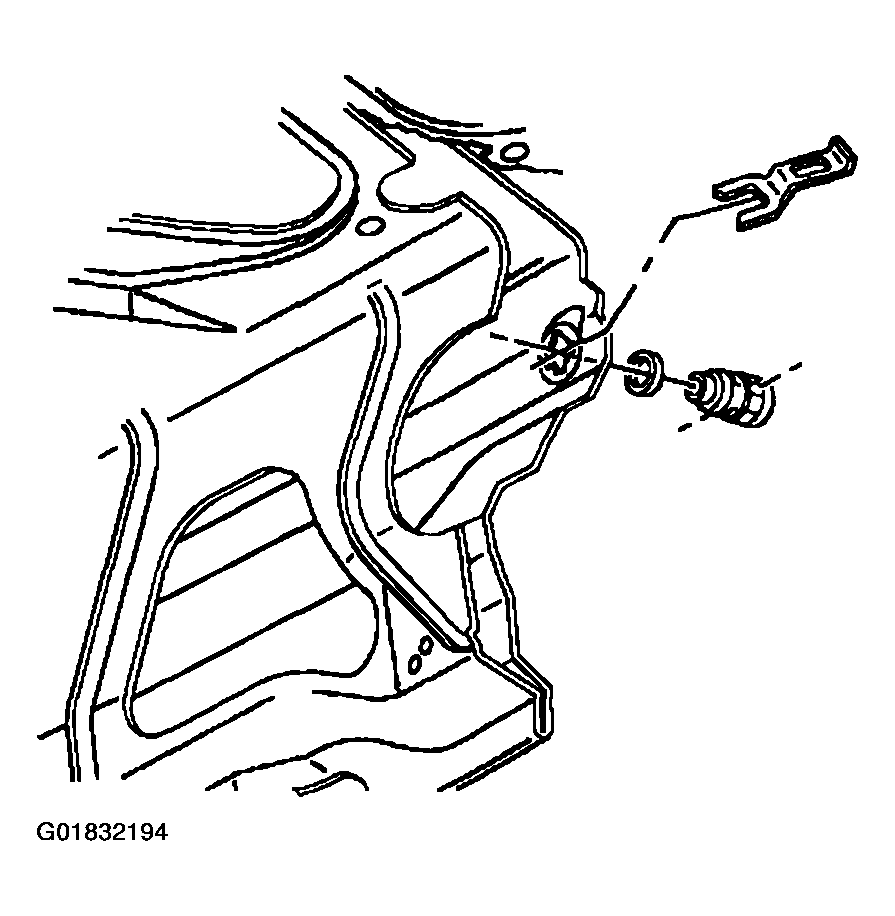

    Fig 2: Removing Rear Compartment Lid Lock Cylinder And Gasket From Rear Compartment Lid
    G01832194Courtesy of GENERAL MOTORS CORP.
