Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment lid lock cylinder and gasket to the rear compartment lid.
  2. Install the rear compartment lid retainer to the rear compartment lid lock cylinder.

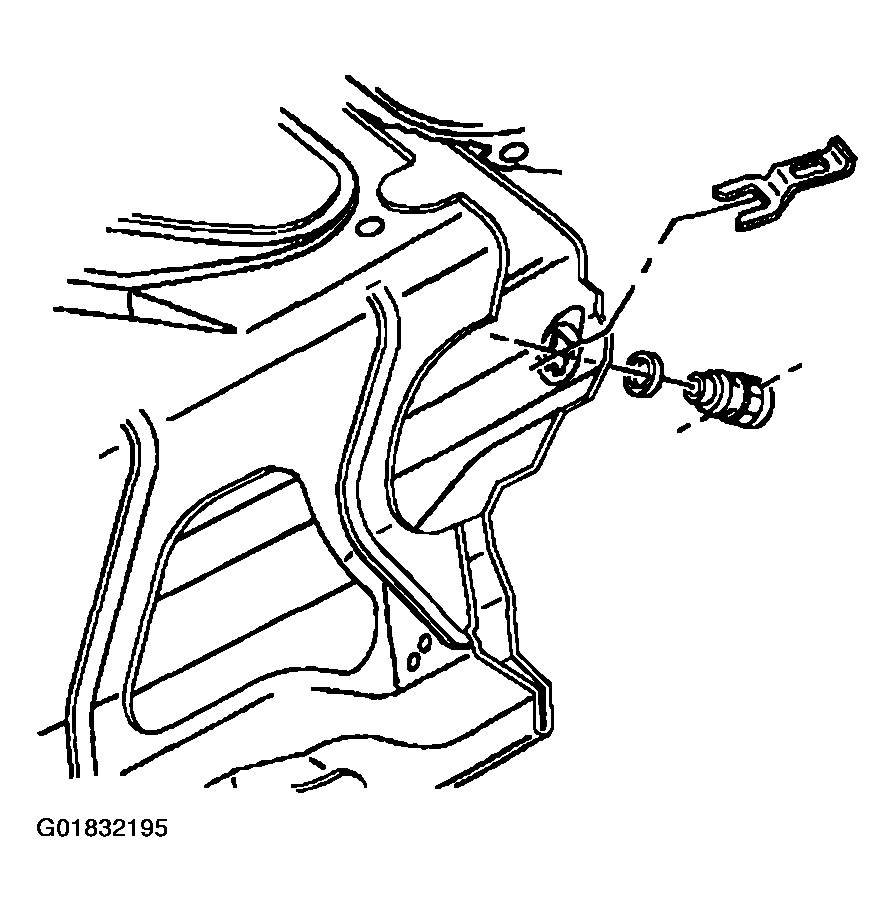

    Fig 1: Installing Rear Compartment Lid Lock Cylinder And Gasket To Rear Compartment Lid
    G01832195Courtesy of GENERAL MOTORS CORP.
  3. Install the rear compartment lid lock cylinder actuator cable to the rear compartment lid lock cylinder.
  4. Close the rear compartment.

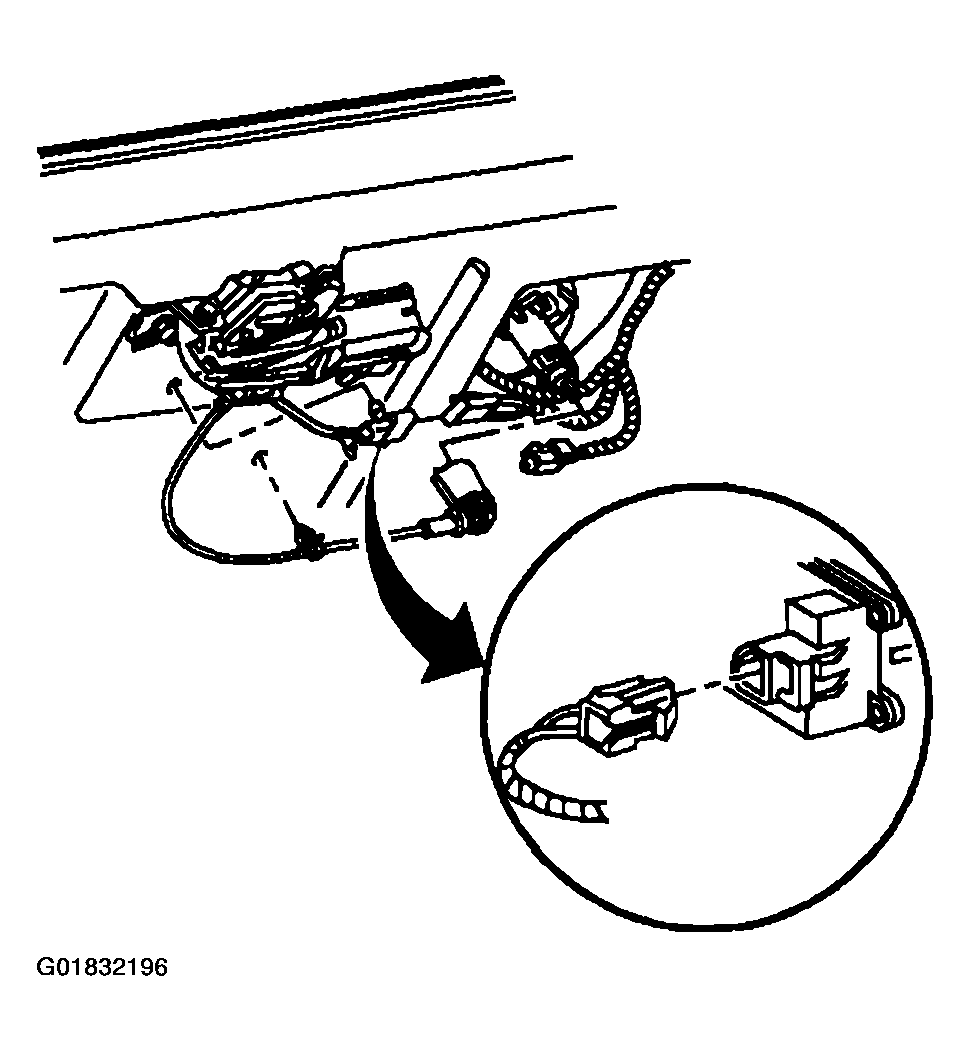

    Fig 2: Installing Rear Compartment Lid Lock Cylinder Actuator Cable To Rear Compartment Lid Lock Cylinder
    G01832196Courtesy of GENERAL MOTORS CORP.
