Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Disconnect the electrical connector from the lock actuator.
  3. Disconnect the lock cylinder cable from the lock cylinder.
  4. Remove the lock actuator to rear compartment lid latch bolts.
  5. Remove the lock actuator from the rear compartment lid latch.

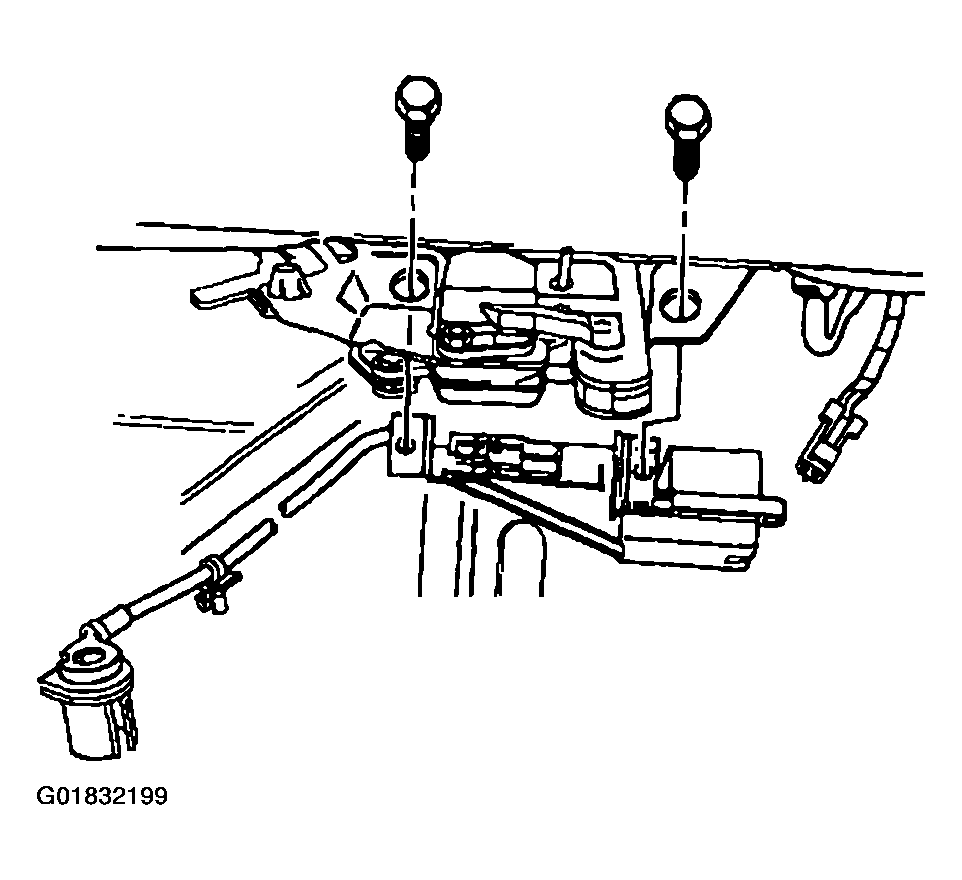

    Fig 1: Removing Lock Actuator To Rear Compartment Lid Latch Bolts
    G01832199Courtesy of GENERAL MOTORS CORP.
