Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock actuator to the rear compartment lid latch.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the lock actuator to rear compartment lid latch bolts.

    Tighten

    Tighten the lock actuator to rear compartment lid latch bolts to 6 N.m (53 lb in).

  3. Connect the electrical connector to the lock actuator.
  4. Connect the lock cylinder cable to the lock cylinder.
  5. Close the rear compartment.

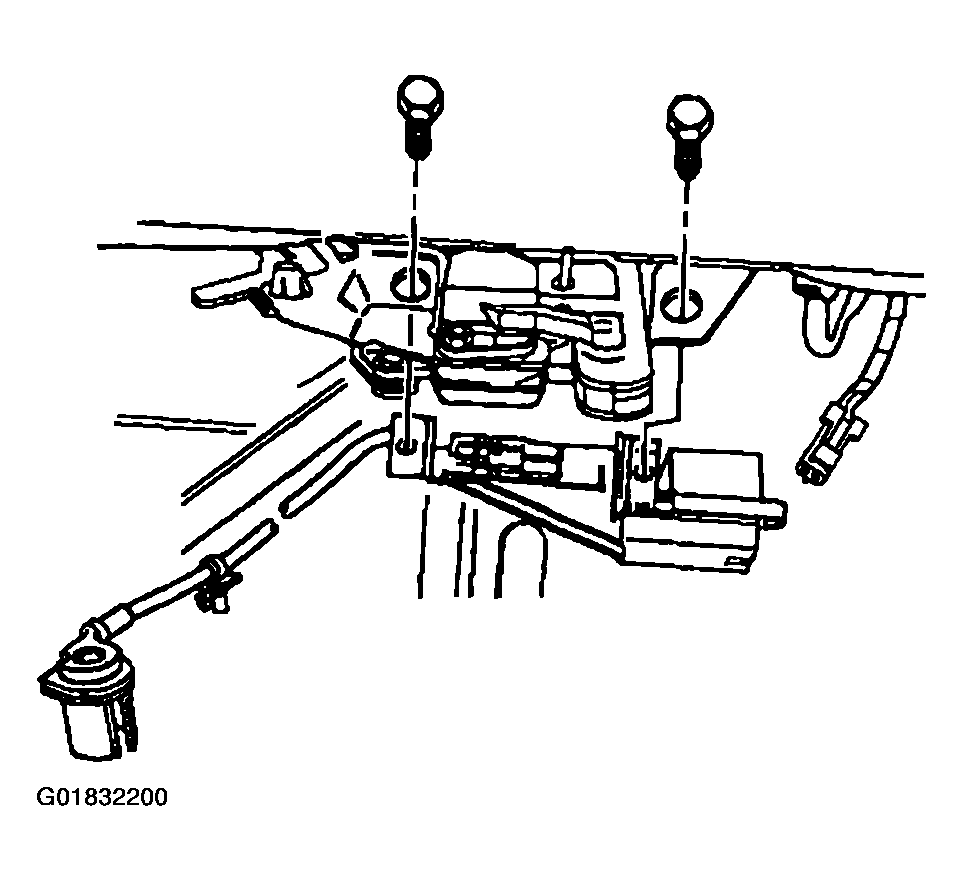

    Fig 1: Installing Lock Actuator To Rear Compartment Lid Latch Bolts
    G01832200Courtesy of GENERAL MOTORS CORP.
