Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Use a grease pencil to mark the location of the rear compartment lid latch to the rear compartment lid.
  3. Disconnect the electrical connectors from the rear compartment lid latch.
  4. Disconnect the lock cylinder actuator cable from the lock cylinder.
  5. Remove the rear compartment lid latch to rear compartment lid bolts.
  6. Remove the rear compartment lid latch from the rear compartment lid.

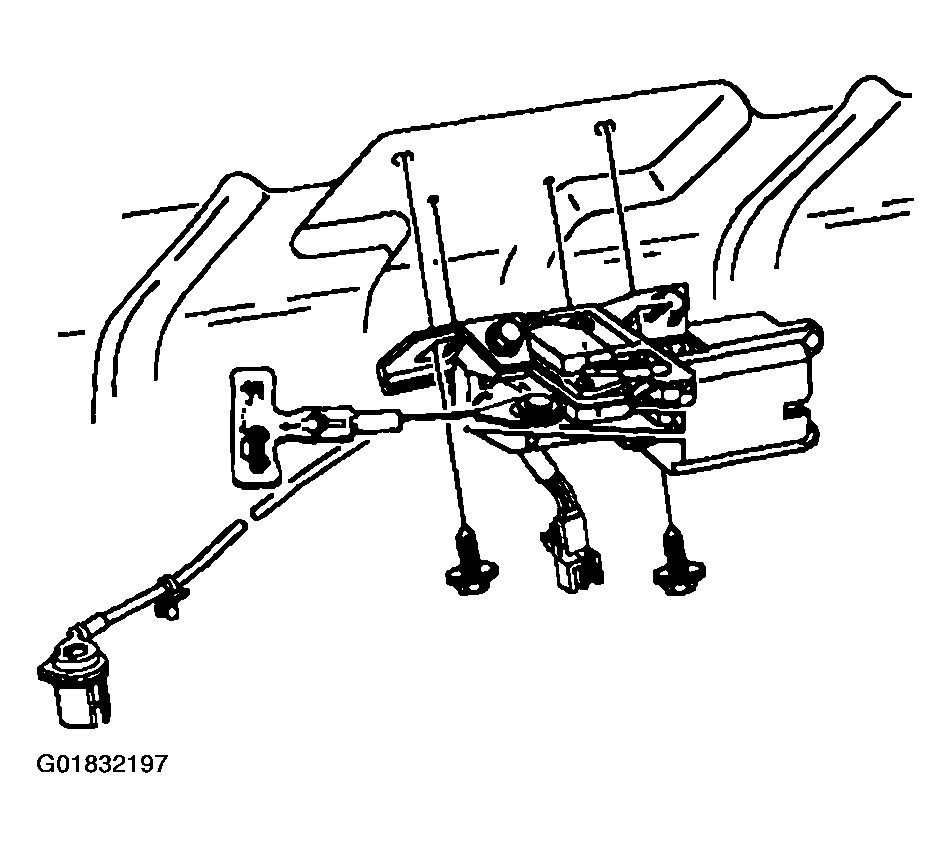

    Fig 1: Disconnecting Electrical Connectors From Rear Compartment Lid Latch
    G01832197Courtesy of GENERAL MOTORS CORP.
