Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid latch to the alignment marks on the rear compartment lid.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear compartment lid latch to rear compartment lid bolts.

    Tighten

    Tighten the rear compartment lid latch to rear compartment lid bolts to 10 N.m (89 lb in).

  3. Connect the electrical connectors to the rear compartment lid latch.
  4. Connect the lock cylinder actuator cable to the lock cylinder.
  5. Close the rear compartment.

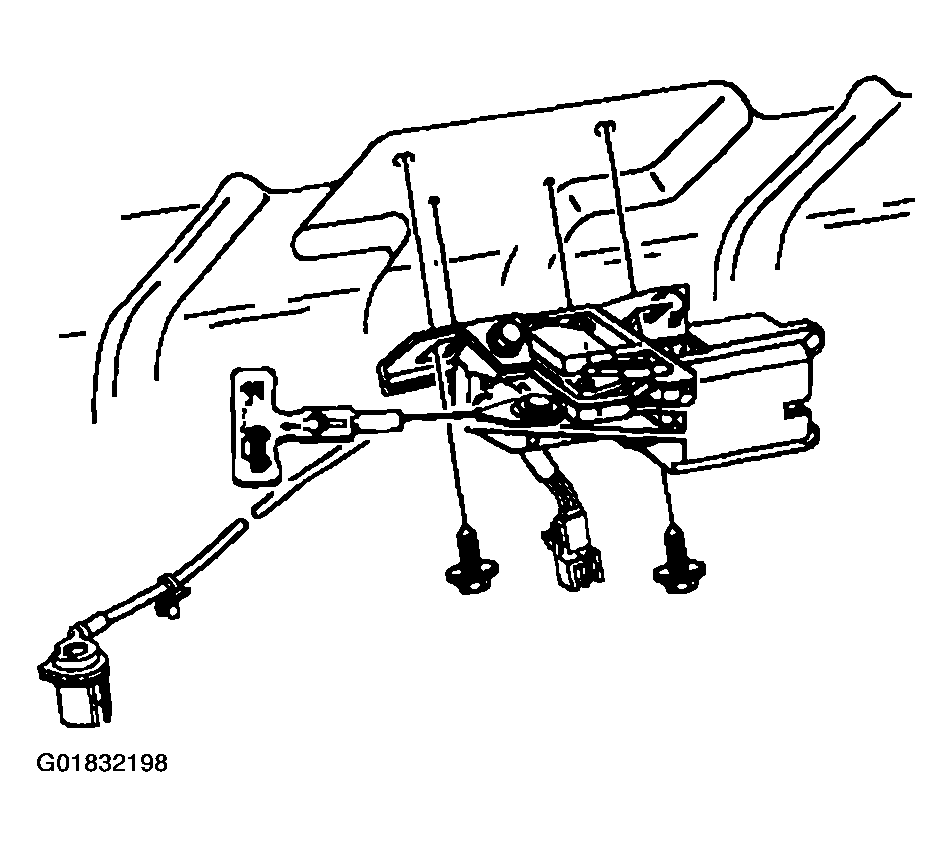

    Fig 1: Connecting Electrical Connectors From Rear Compartment Lid Latch
    G01832198Courtesy of GENERAL MOTORS CORP.
