Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear compartment lid. Refer to Compartment Lid Replacement - Rear
  3. Remove the rear compartment lid struts. Refer to Strut Replacement - Rear Compartment Lid
  4. Use a grease pencil to mark the rear compartment hinge to body location.
  5. Remove the rear compartment lid hinge to body bolts.
  6. Remove the rear compartment lid hinge from the body.

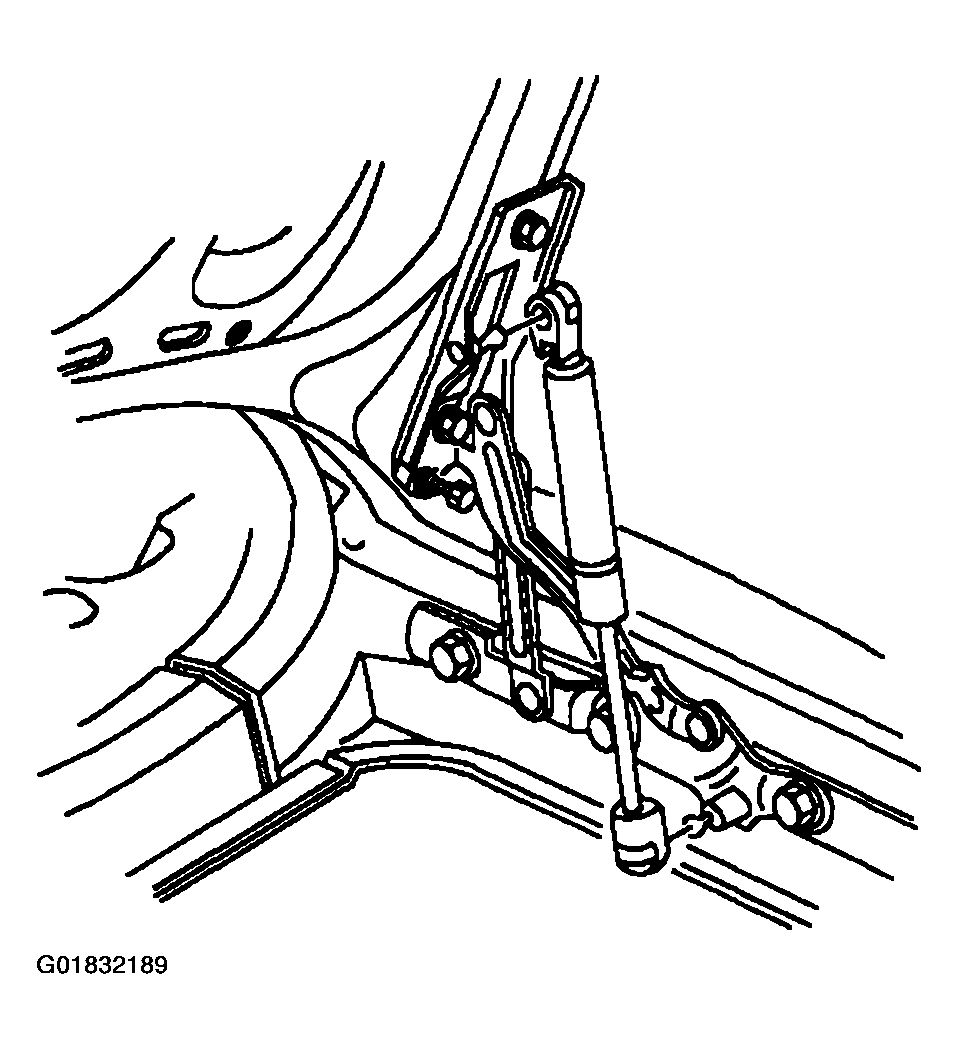

    Fig 1: Removing Rear Compartment Lid Struts
    G01832189Courtesy of GENERAL MOTORS CORP.
