Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the fuel filler door.
  2. Remove the fuel filler cap.
  3. Remove the bolts from the fuel filler pocket at the fuel filler neck.

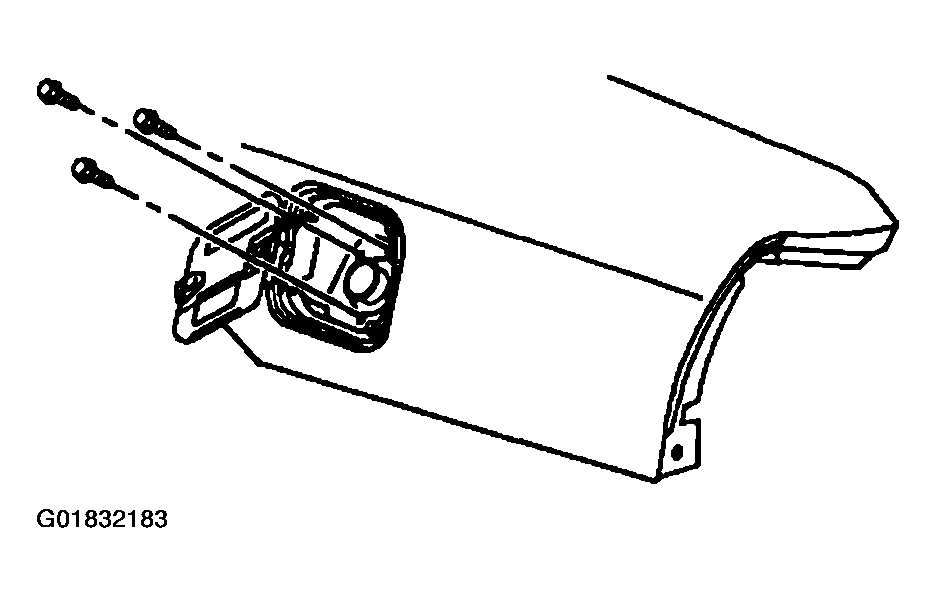

    Fig 1: Removing Bolts From Fuel Filler Pocket At Fuel Filler Neck
    G01832183Courtesy of GENERAL MOTORS CORP.
  4. Apply tape to the opening around the fuel filler pocket
  5. Remove the fuel filler pocket using a small flat-bladed tool, pressing down and out from the top edge of the fuel filler pocket.

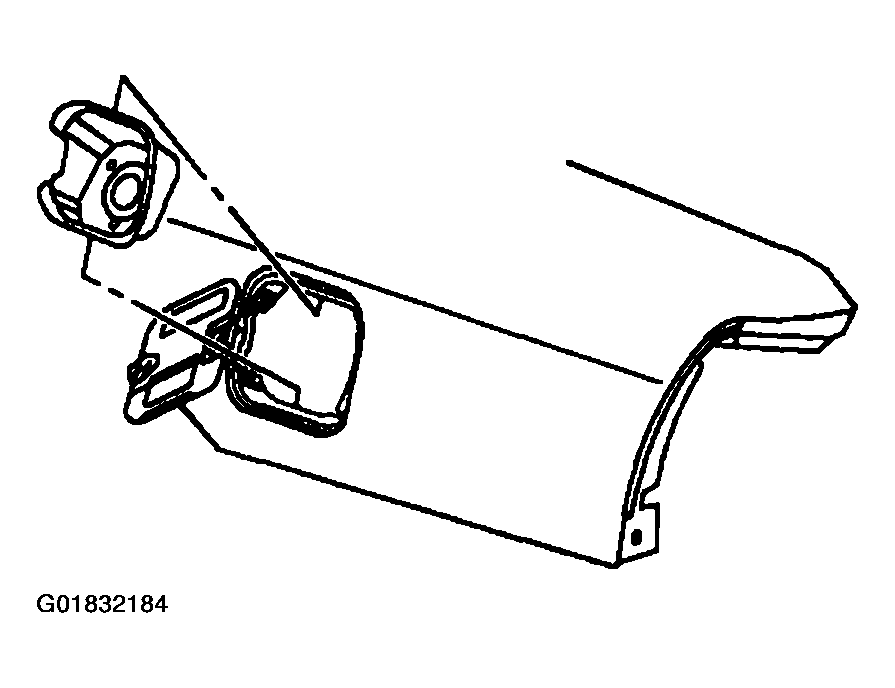

    Fig 2: Removing Fuel Filler Pocket
    G01832184Courtesy of GENERAL MOTORS CORP.
