Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel filler pocket to the fuel filer neck.
  2. Press in until the fuel filler pocket is fully seated to the quarter panel.

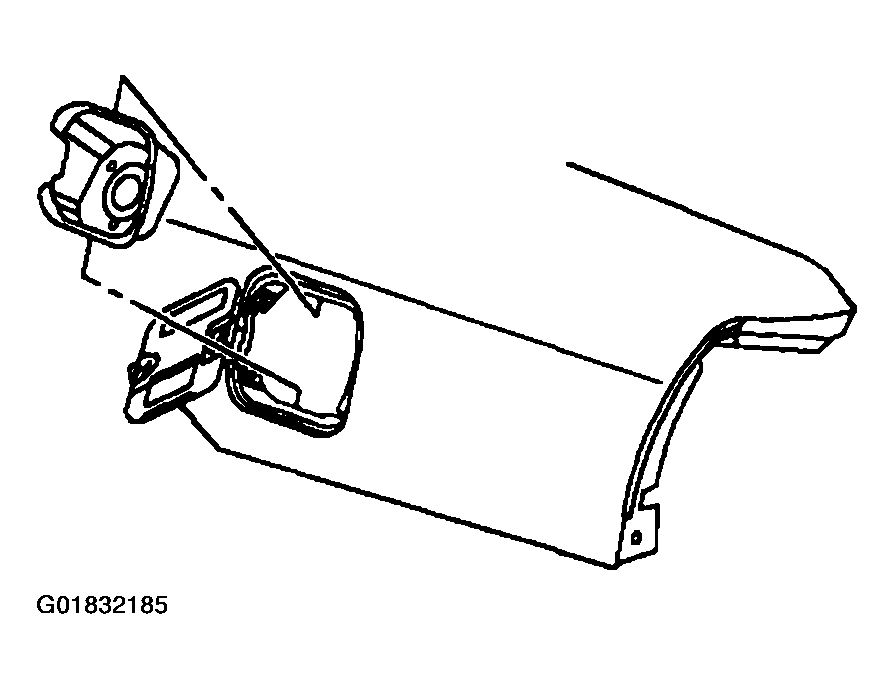

    Fig 1: Installing Fuel Filler Pocket To Fuel Filer Neck
    G01832185Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the fuel filler neck bolts.

    Tighten

    Tighten the fuel filler neck bolts to 5 N.m (44 lb in).

  4. Remove all tape from fuel filler pocket opening.
  5. Replace the fuel filler cap.
  6. Close the fuel filler door.

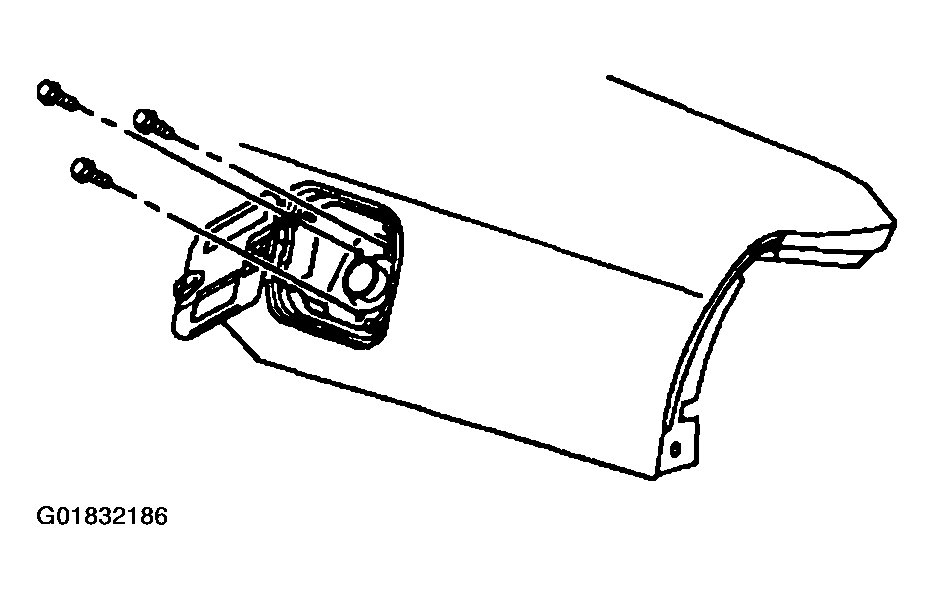

    Fig 2: Installing Fuel Filler Neck Bolt
    G01832186Courtesy of GENERAL MOTORS CORP.
