Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the fuel filler door.
  2. Remove the fuel filler pocket. Refer to Fuel Filler Pocket Replacement
  3. Remove the fuel filler door to body nuts.
  4. Remove the fuel filler door from the body.

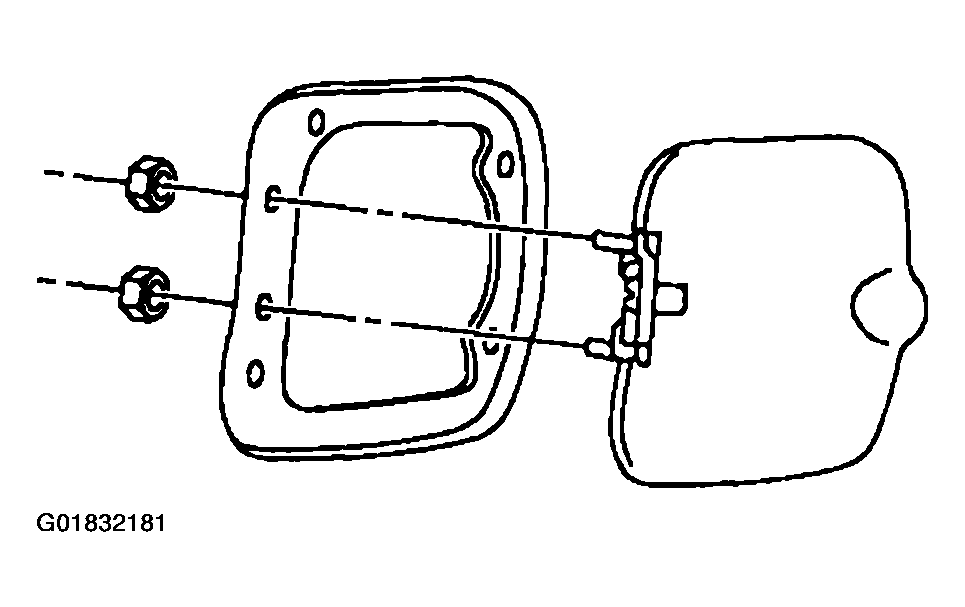

    Fig 1: Removing Fuel Filler Door From Body
    G01832181Courtesy of GENERAL MOTORS CORP.
