Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the fuel filler door to the fuel filler door alignment holes in the body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the fuel filler door to body nuts.

    Tighten

    Tighten the fuel filler door to body nuts to 10 N.m (89 lb in).

  3. Install the fuel filler pocket. Refer to Fuel Filler Pocket Replacement
  4. Close the fuel filler door.

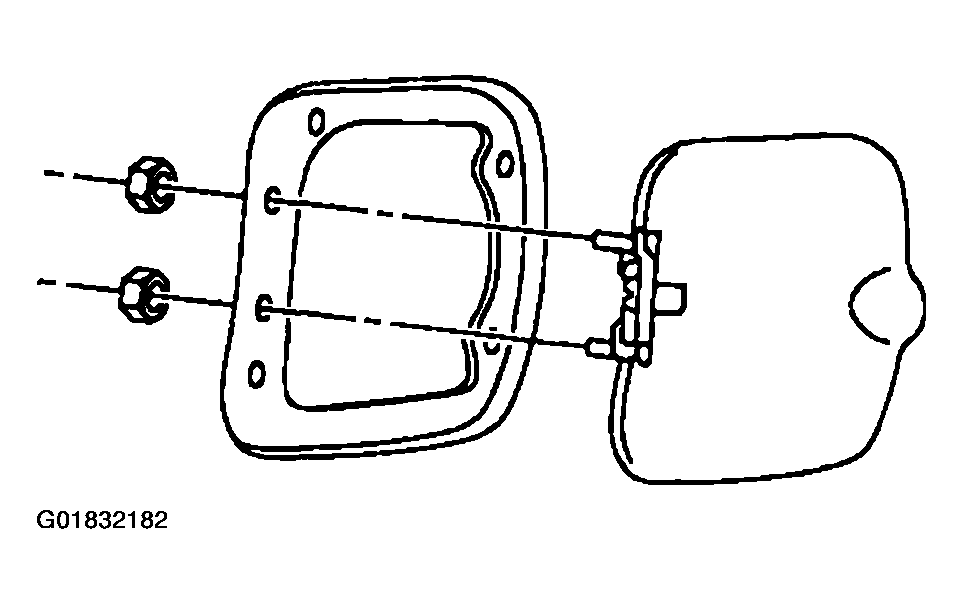

    Fig 1: Installing Fuel Filler Door To Body
    G01832182Courtesy of GENERAL MOTORS CORP.
