Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the left rear compartment trim panel to the vehicle.
  2. Align the right rear compartment trim panel to the vehicle.
  3. Apply pressure to the left, the right and the rear of the rear compartment trim panel until fully seated.
  4. Install the rear compartment trim panel over the compartment lid lock striker.
  5. Install the rear compartment sill plate. Refer to Compartment Sill Plate Replacement - Rear

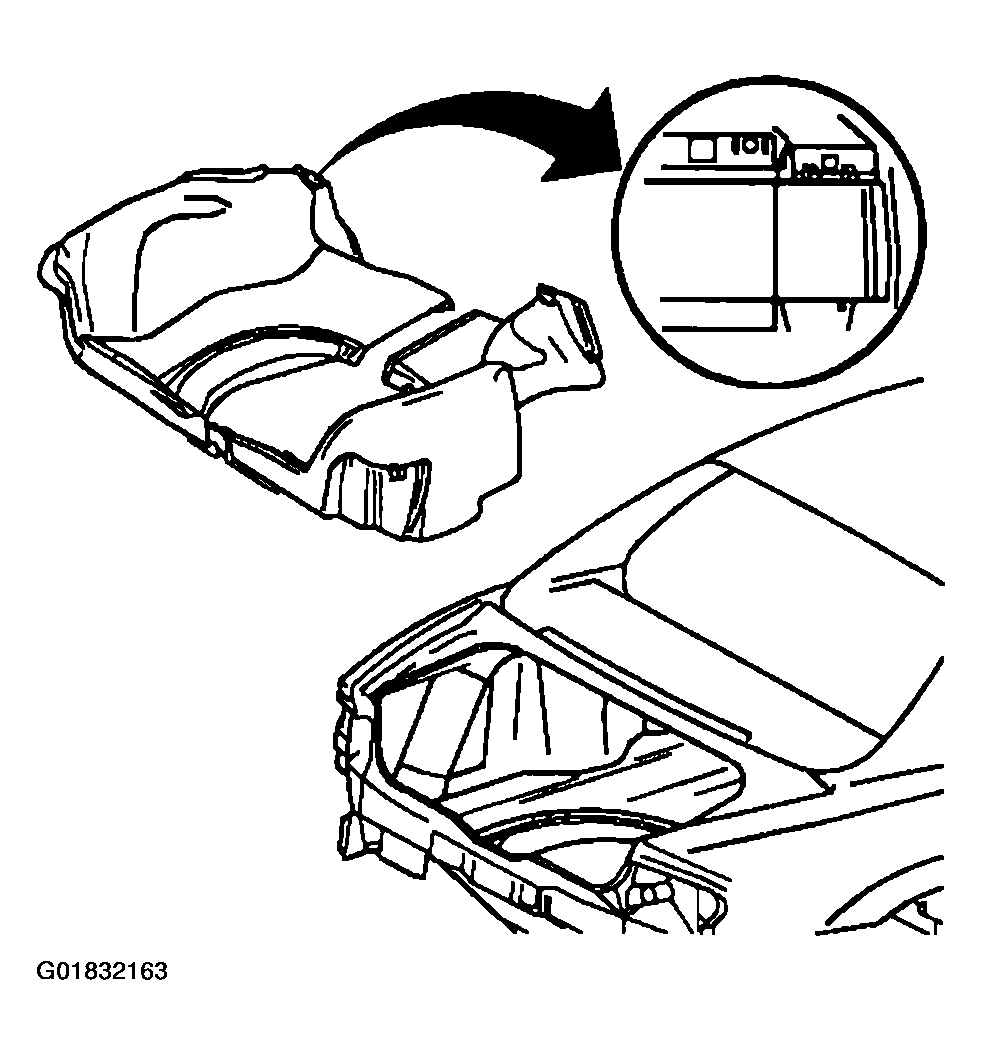

    Fig 1: Installing Left And Right Side Of Rear Compartment Trim Panel From Vehicle
    G01832163Courtesy of GENERAL MOTORS CORP.
  6. Install the spare tire cover in the rear compartment.

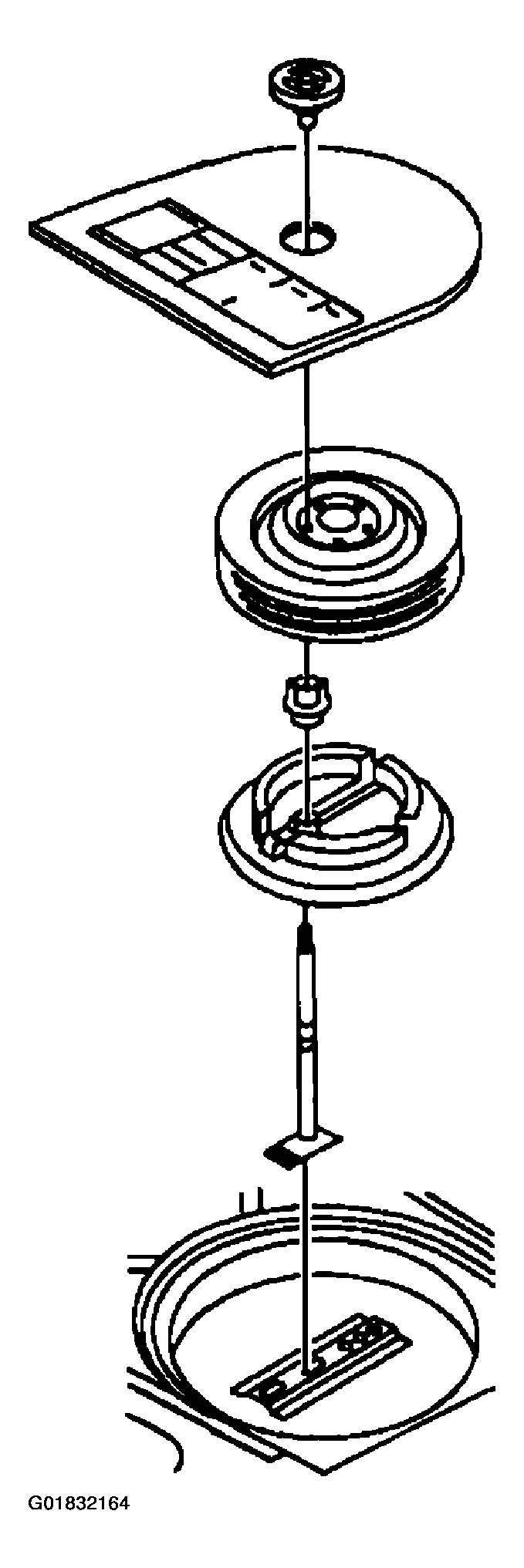

    Fig 2: Installing Spare Tire Cover In Rear Compartment
    G01832164Courtesy of GENERAL MOTORS CORP.
  7. Install the rear compartment mat to the rear compartment.
  8. If equipped with rear split folding seats, install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.
  9. Position the communication interface module and the bracket in the rear compartment.

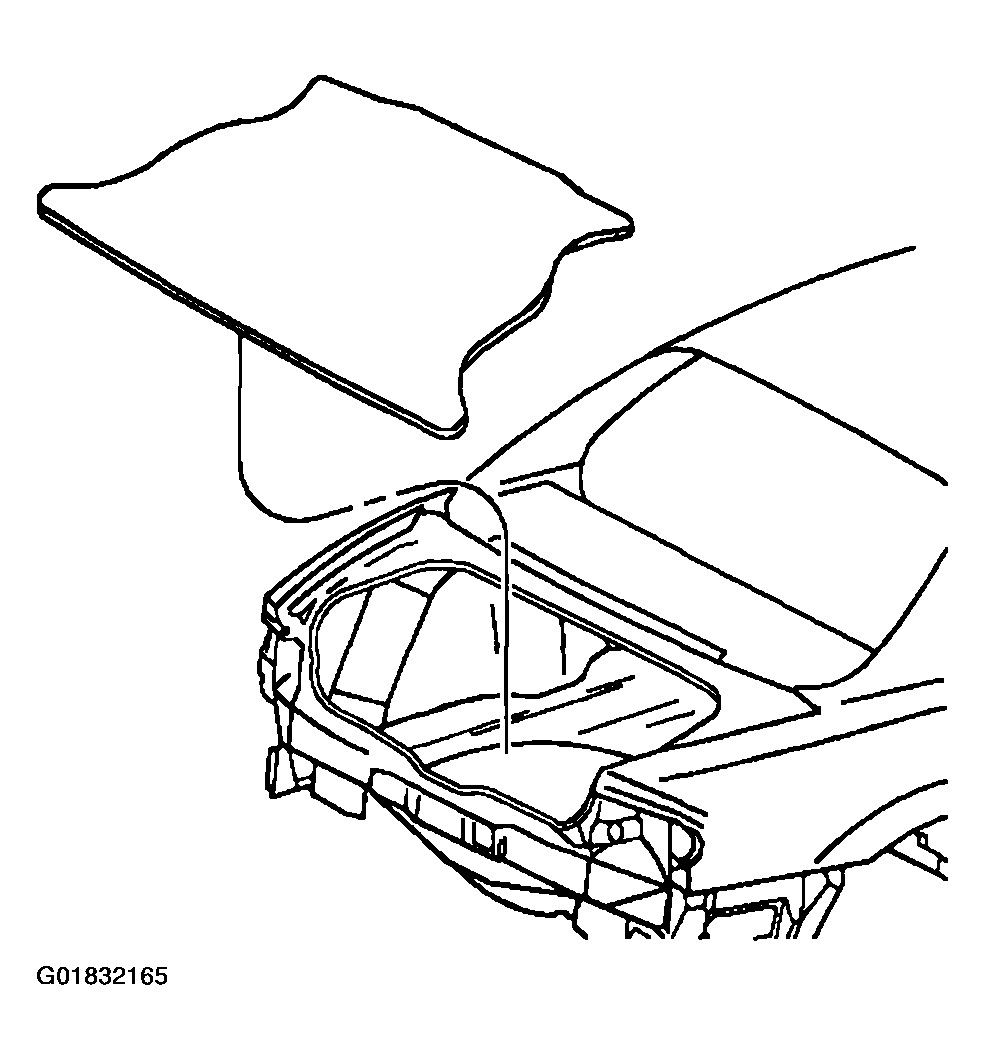

    Fig 3: Installing Rear Compartment Mat To Rear Compartment
    G01832165Courtesy of GENERAL MOTORS CORP.
  10. Connect the GPS antenna cable by pushing in on the metal sleeve.
  11. Connect the two electrical connectors to the module.
  12. Connect the cellular antenna by pressing in on the square plastic housing.

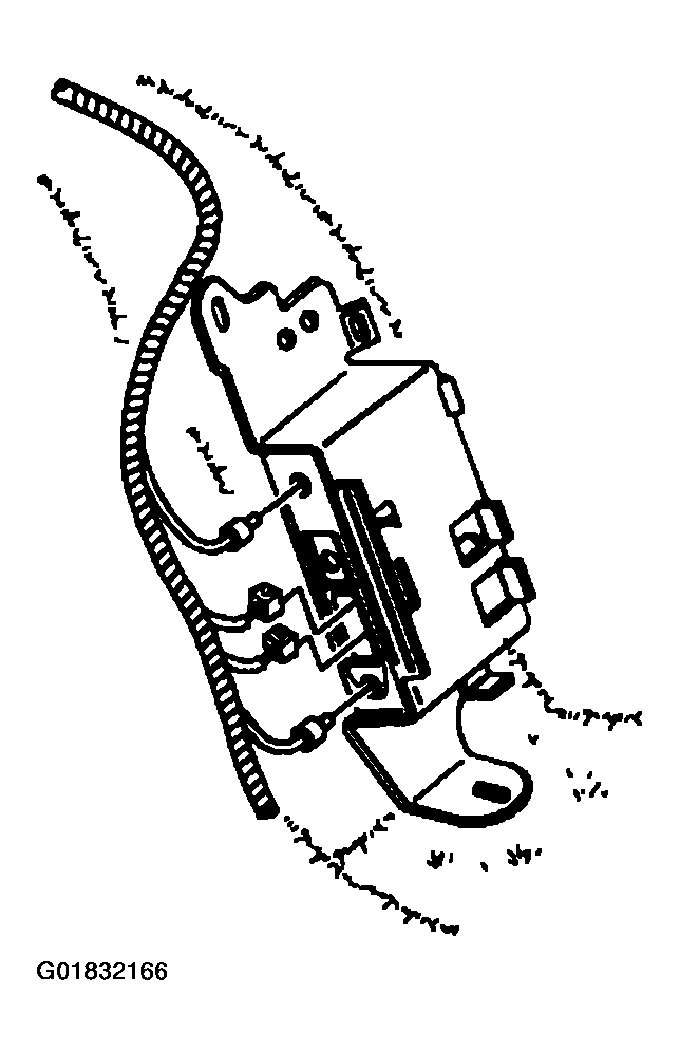

    Fig 4: Installing Communication Interface Module And Bracket In Rear Compartment
    G01832166Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  13. Install the interface module bracket nuts.

    Tighten

    Tighten the nuts to 4 N.m (35 lb in).

  14. Install the rear compartment convenience net and retainers. Refer to Compartment Convenience Net Replacement - Rear
  15. Close the rear compartment.

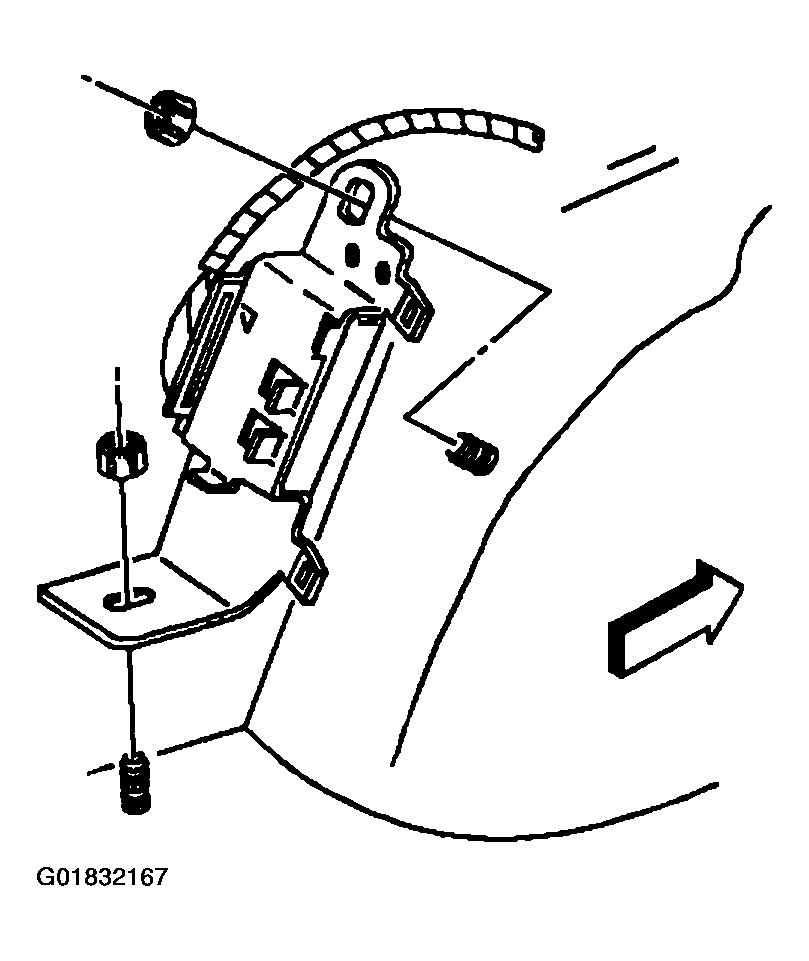

    Fig 5: Installing Interface Module Bracket Nuts
    G01832167Courtesy of GENERAL MOTORS CORP.
