Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Pull up on the rear compartment sill plate to release the spring clips.
  3. Remove the rear compartment sill plate from the rear compartment.

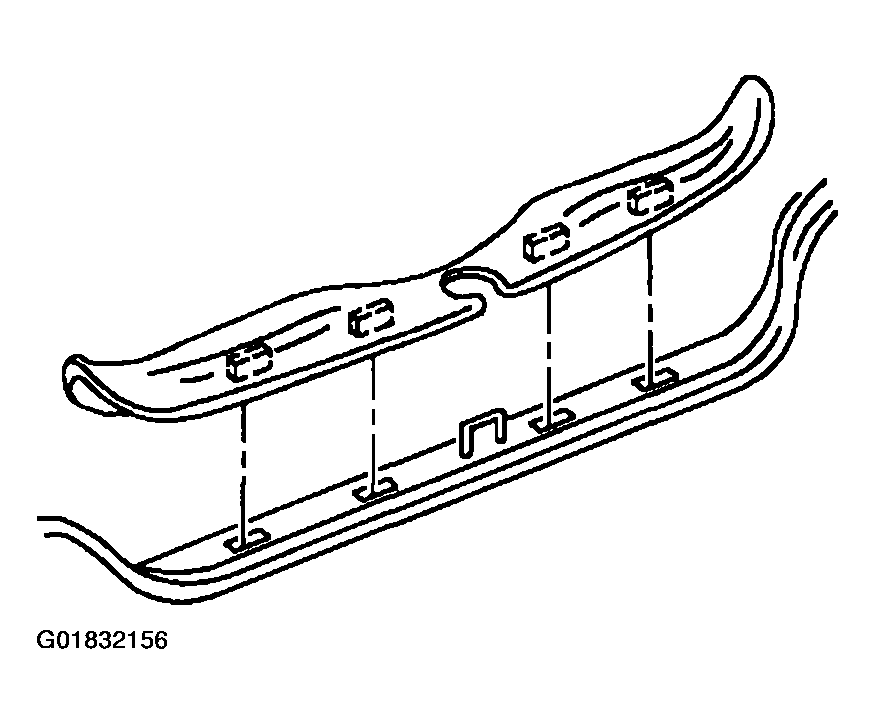

    Fig 1: Removing Rear Compartment Sill Plate From Rear Compartment
    G01832156Courtesy of GENERAL MOTORS CORP.
