Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license lamps. Refer to LICENSE LAMP REPLACEMENT in Lighting Systems.
  2. Remove the rear compartment lid trim to rear compartment lid screws.

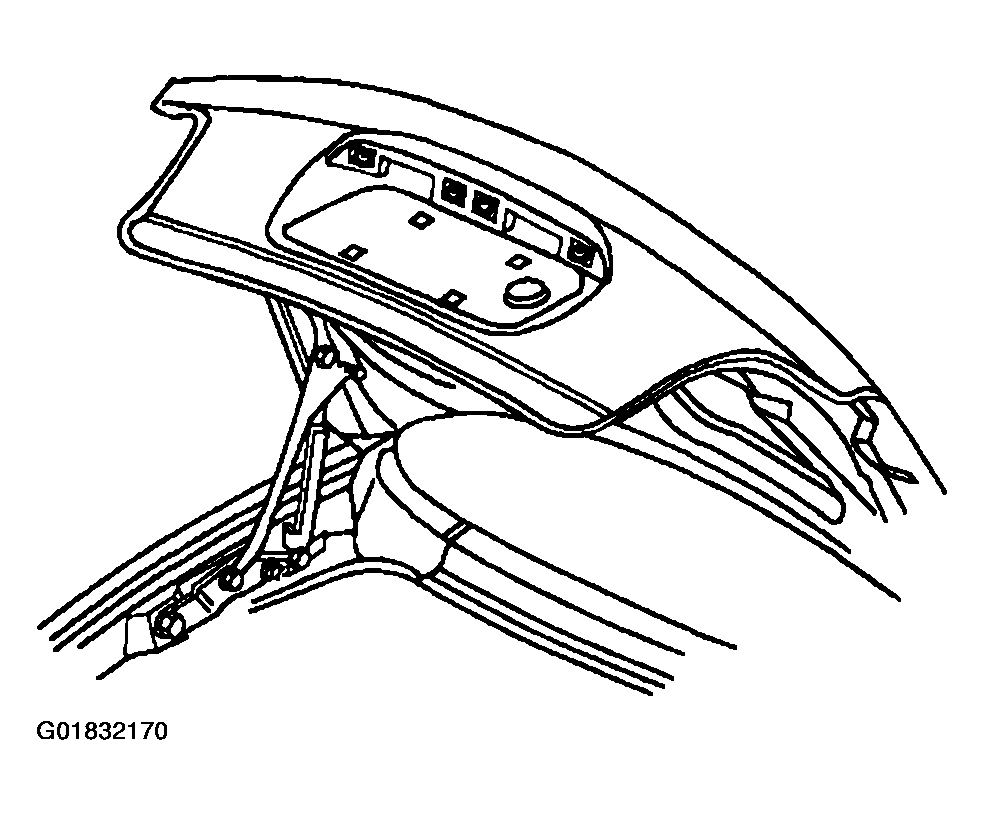

    Fig 1: Removing Rear Compartment Lid Trim To Rear Compartment Lid Screws
    G01832170Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear compartment lid trim from the rear compartment lid.

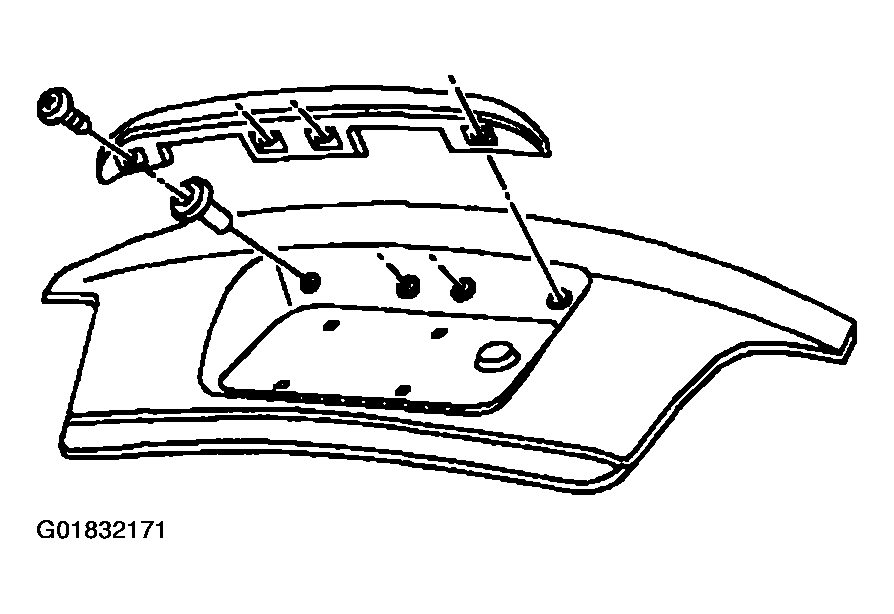

    Fig 2: Removing Rear Compartment Lid Trim From Rear Compartment Lid
    G01832171Courtesy of GENERAL MOTORS CORP.
