Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear compartment lid trim to the rear compartment lid.

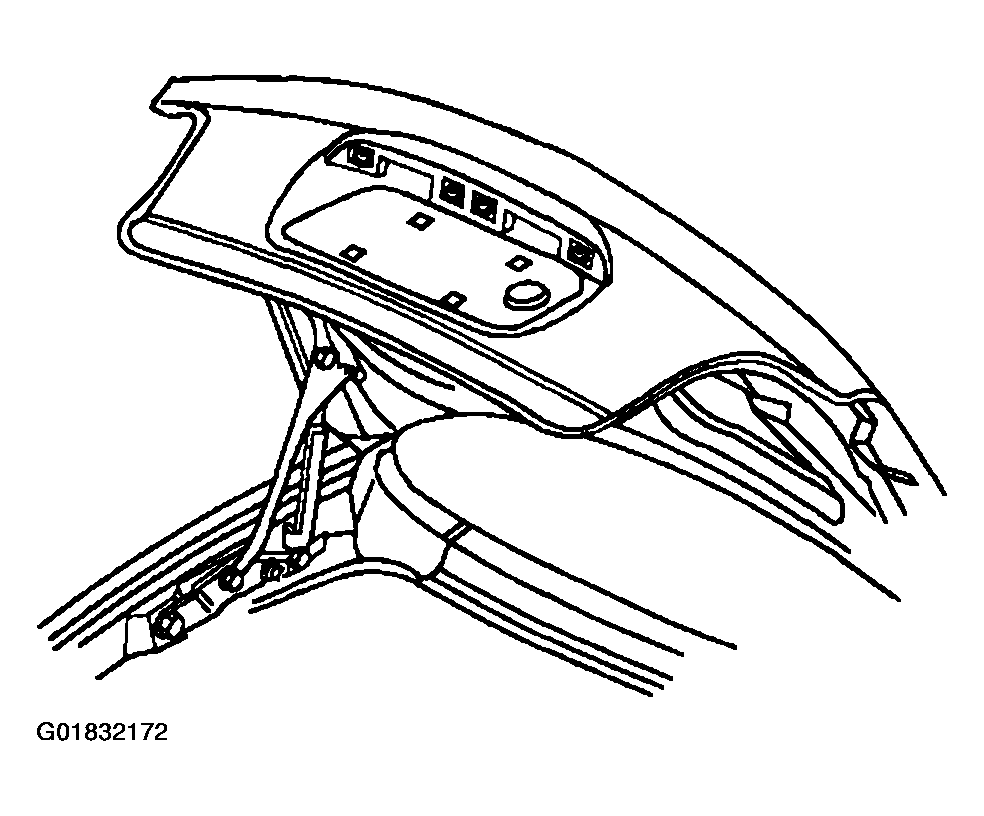

    Fig 1: Aligning Rear Compartment Lid Trim To Rear Compartment Lid
    G01832172Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear compartment lid trim to rear compartment lid screws.

    Tighten

    Tighten the rear compartment lid trim screws to 2 N.m (18 lb in).

  3. Install the license lamps. Refer to LICENSE LAMP REPLACEMENT in Lighting Systems.

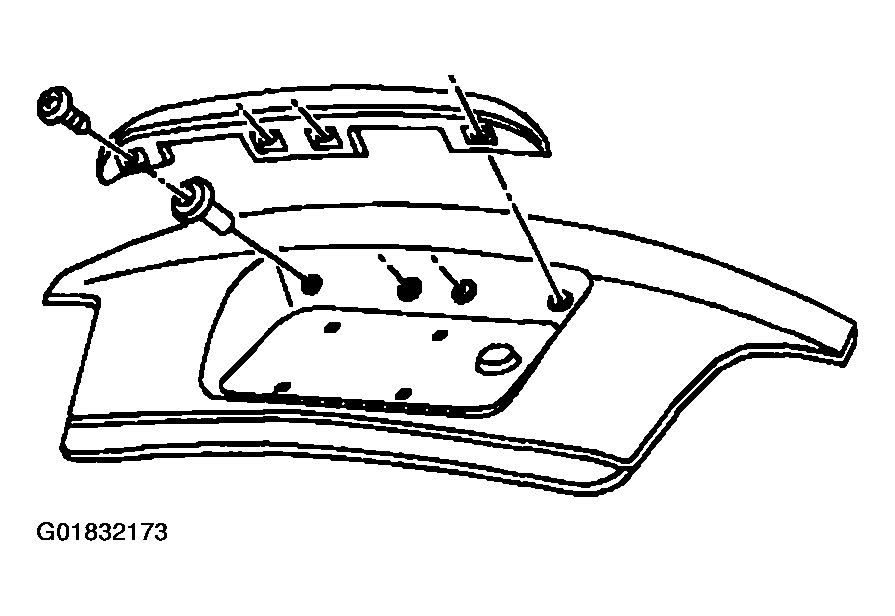

    Fig 2: Installing Rear Compartment Lid Trim To Rear Compartment Lid Screws
    G01832173Courtesy of GENERAL MOTORS CORP.
