Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear compartment convenience net from the rear compartment convenience net retainers near the tail lamps.
  3. Remove the rear compartment convenience net retainers.
  4. Remove the rear compartment convenience net from the rear compartment.

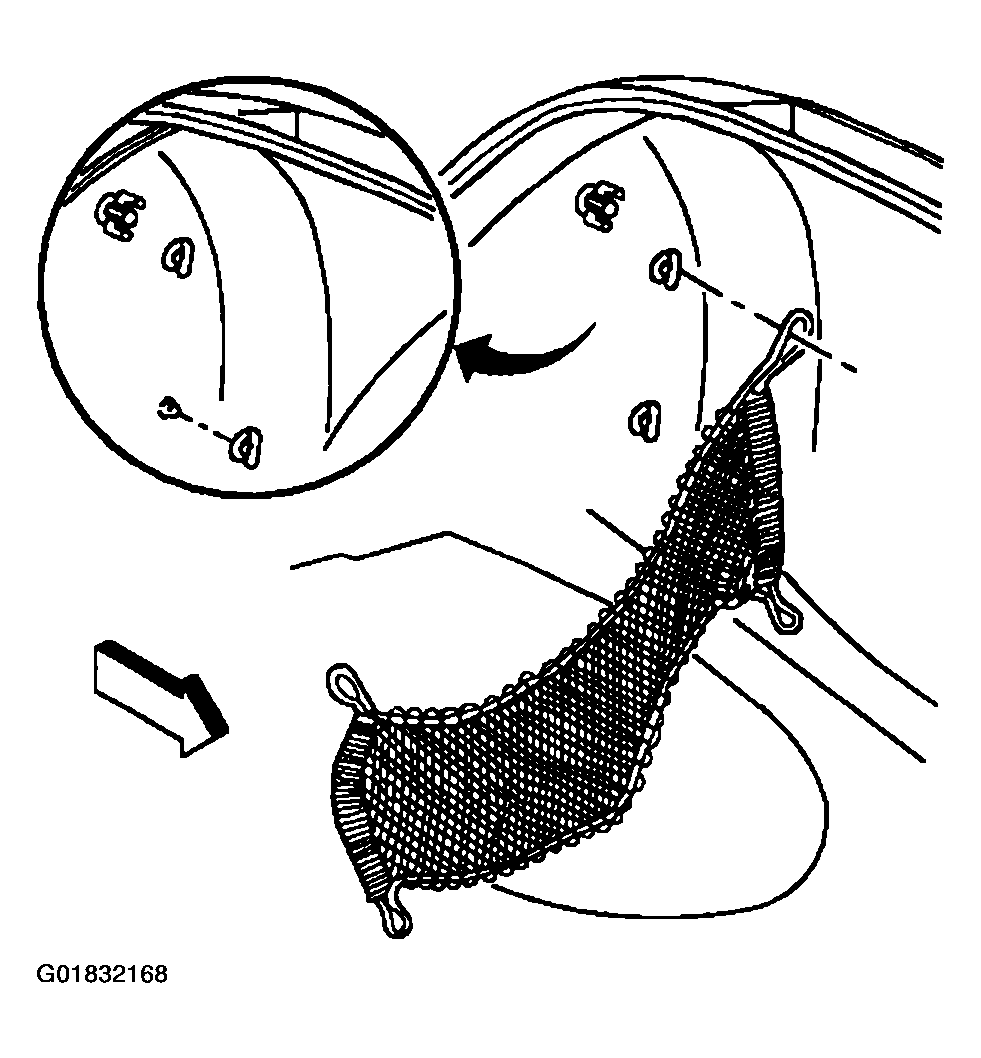

    Fig 1: Removing Rear Compartment Convenience Net
    G01832168Courtesy of GENERAL MOTORS CORP.
