Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step will ensure that the DTC is not a history code.
  2. 3. Tests for the proper operation of the circuit in the high voltage range.
  3. 4. Tests for the proper operation of the circuit in the low voltage range. If the fuse in the jumper wire opens when you perform this test, the signal circuit is shorted to voltage.

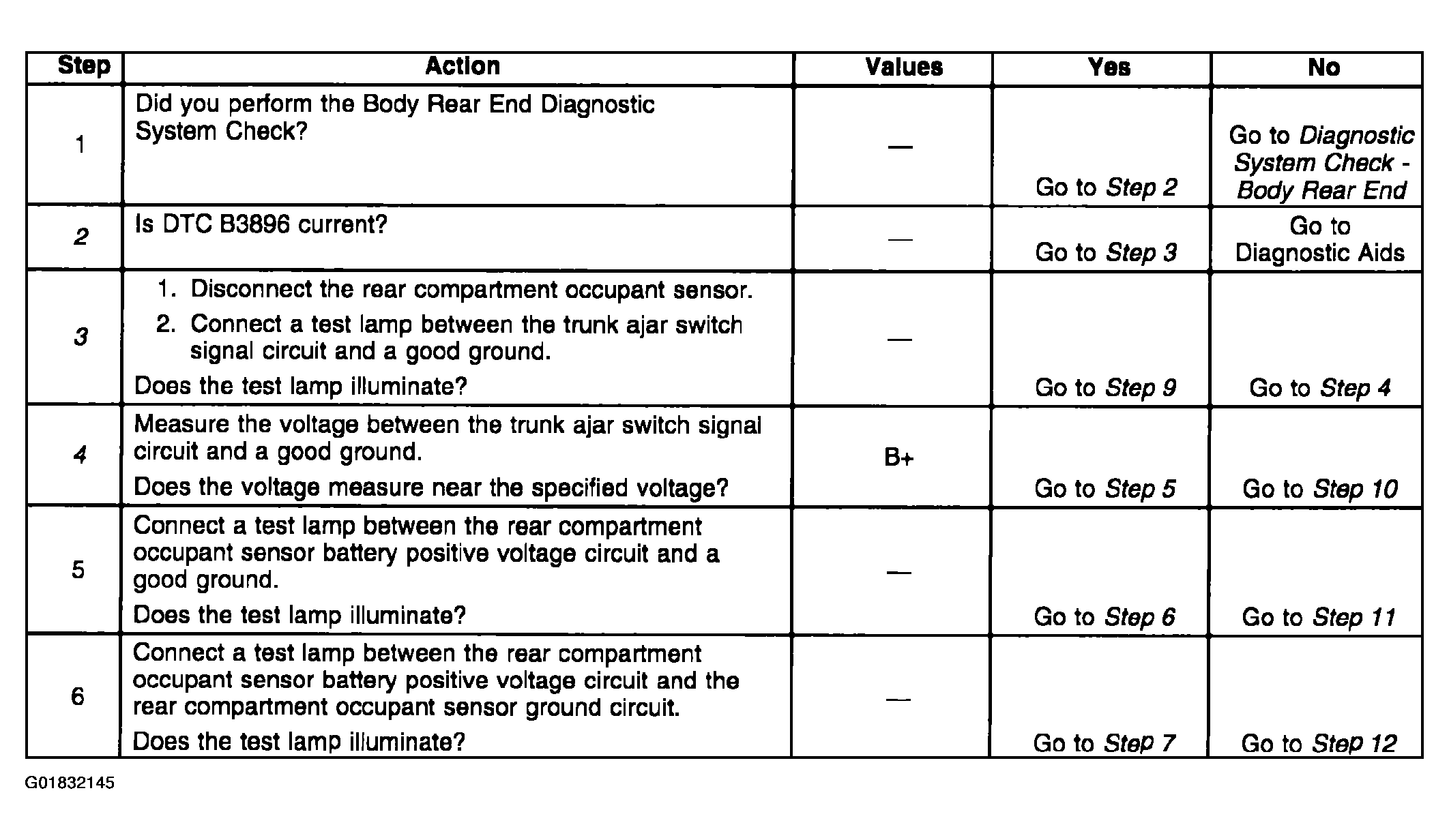

    Fig 1: DTC B3896 (1 Of 2)
    G01832145Courtesy of GENERAL MOTORS CORP.

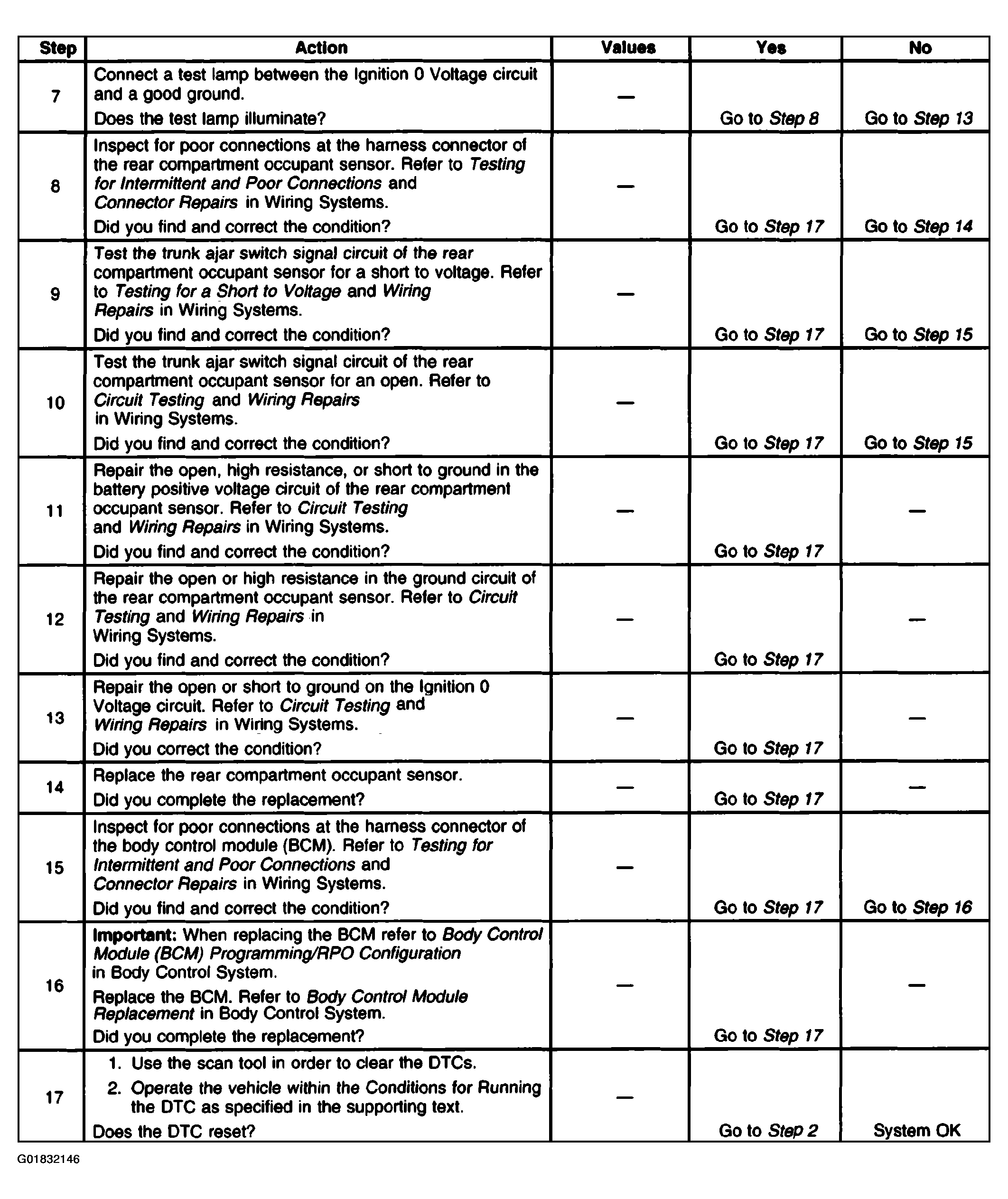

    Fig 2: DTC B3896 (2 Of 2)
    G01832146Courtesy of GENERAL MOTORS CORP.
