Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. Listen for the rear compartment lid latch to operate. Repeat the commands as necessary.
3. Verifies that the body control module is providing voltage to the rear compartment lid latch.
4. Tests for an open in the ground circuit to the rear compartment lid latch.
5. Tests if voltage is constantly being applied to the rear compartment lid latch.

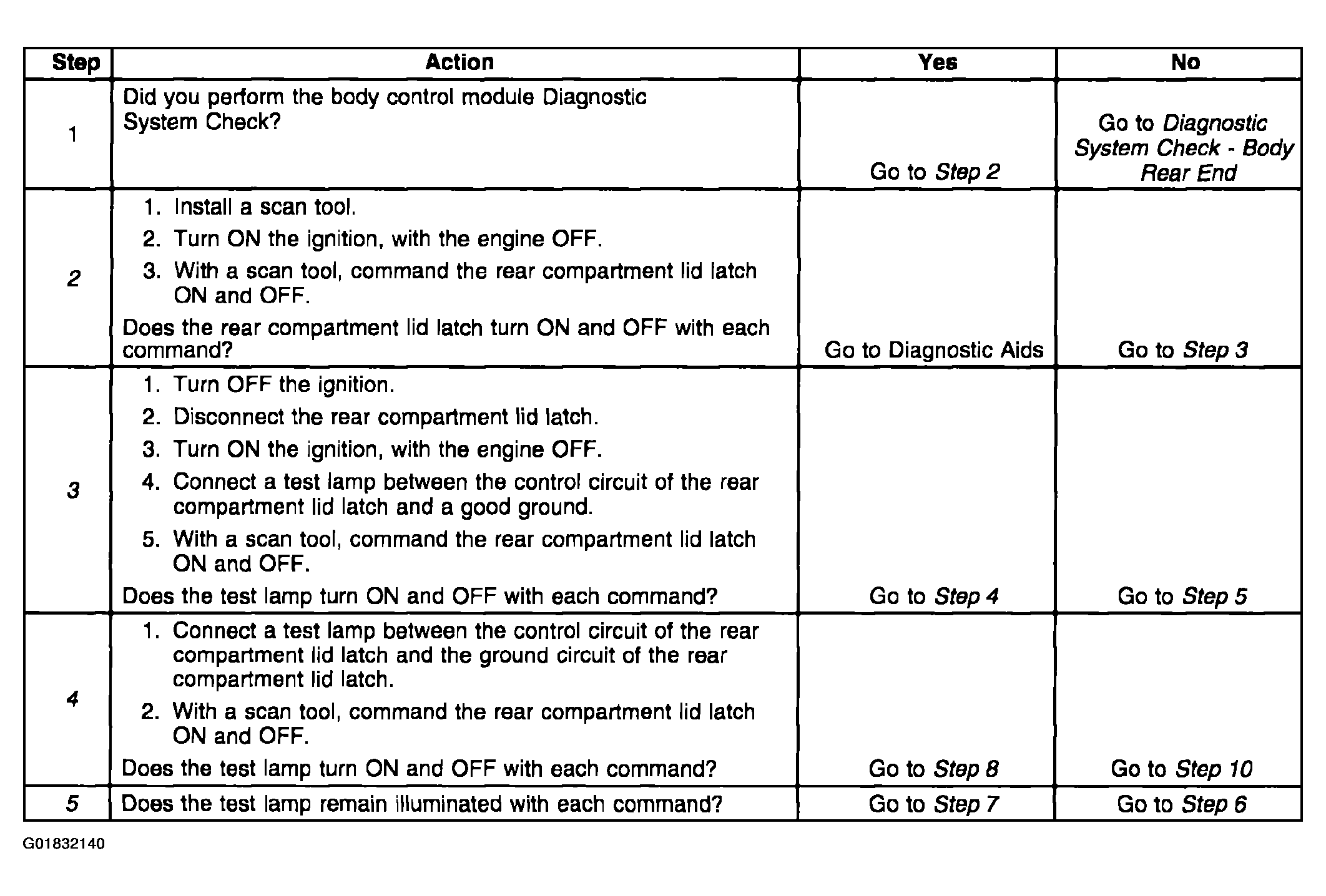

Fig 1: DTC B3247 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

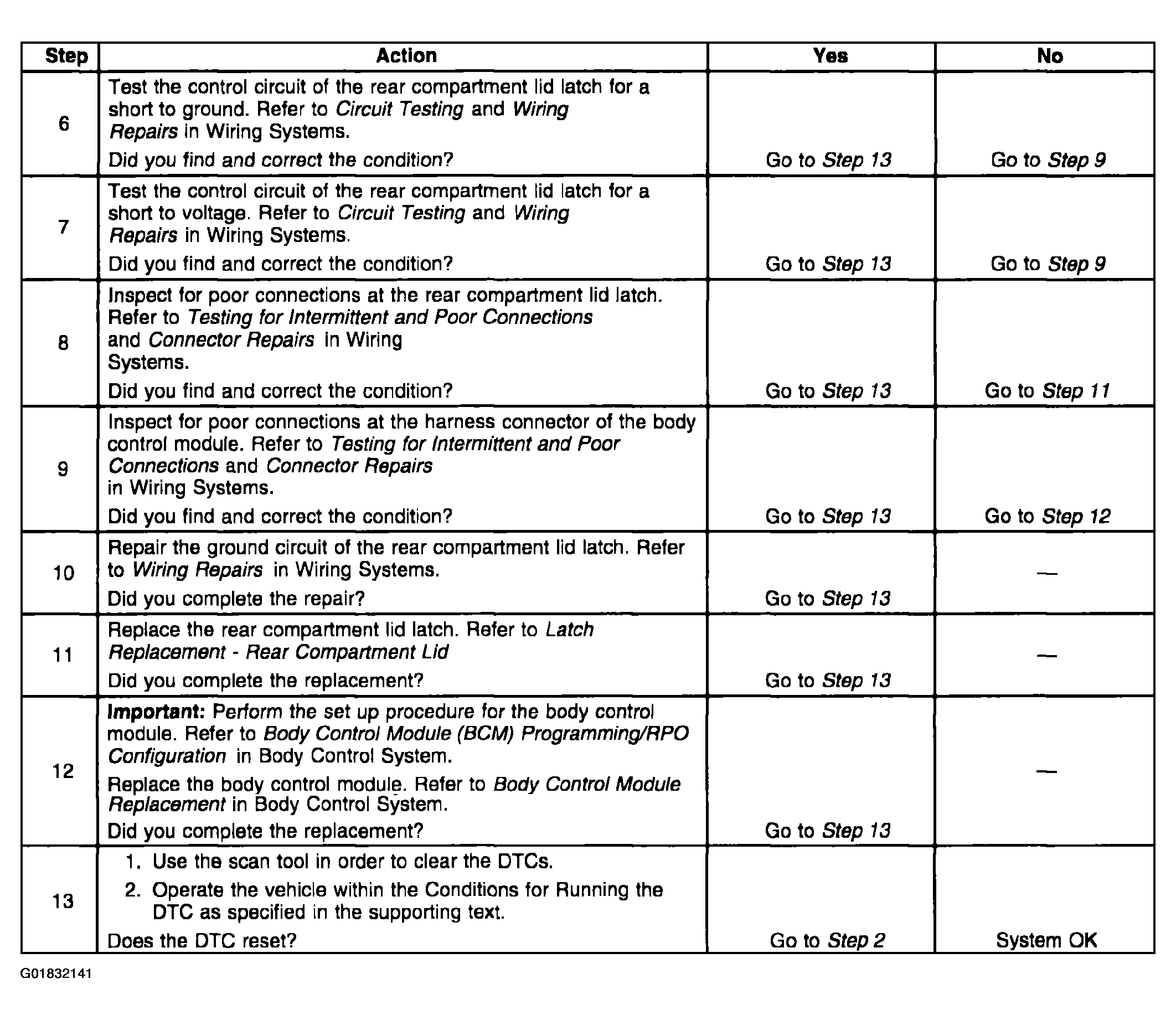

Fig 2: DTC B3247 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
