Body Rear End Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

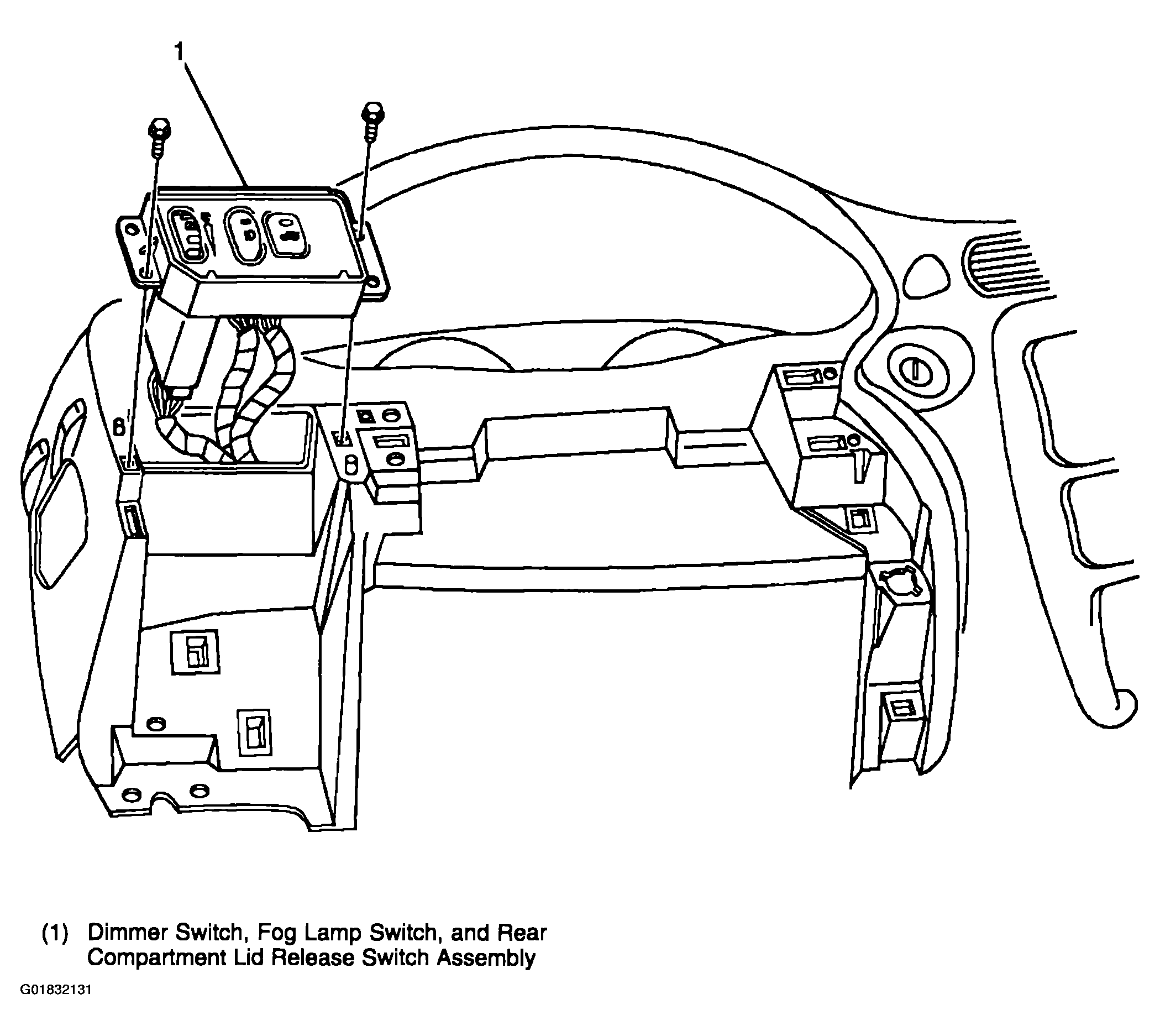

Fig 1: Left Side Of Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

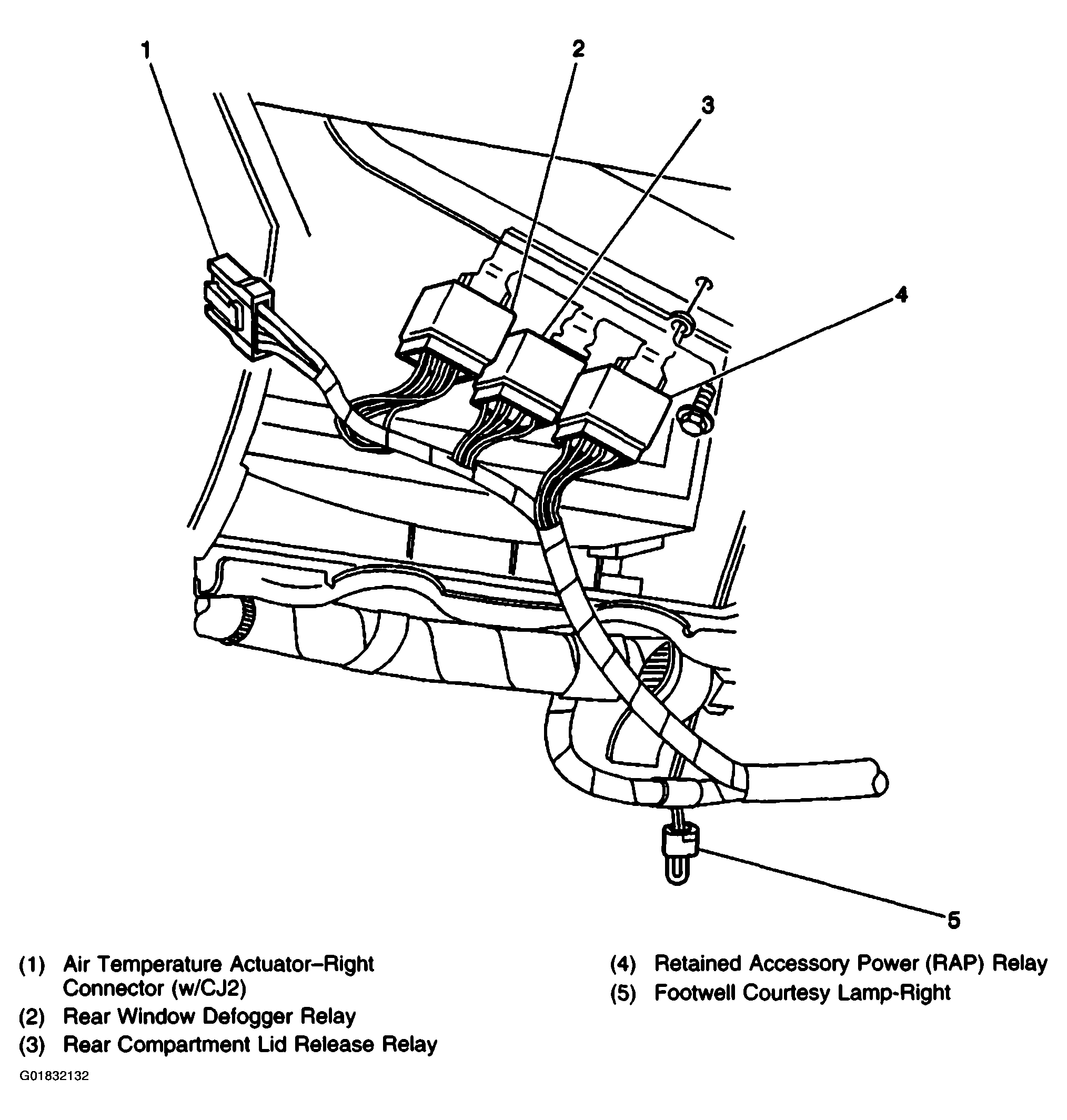

Fig 2: Behind Instrument Panel Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

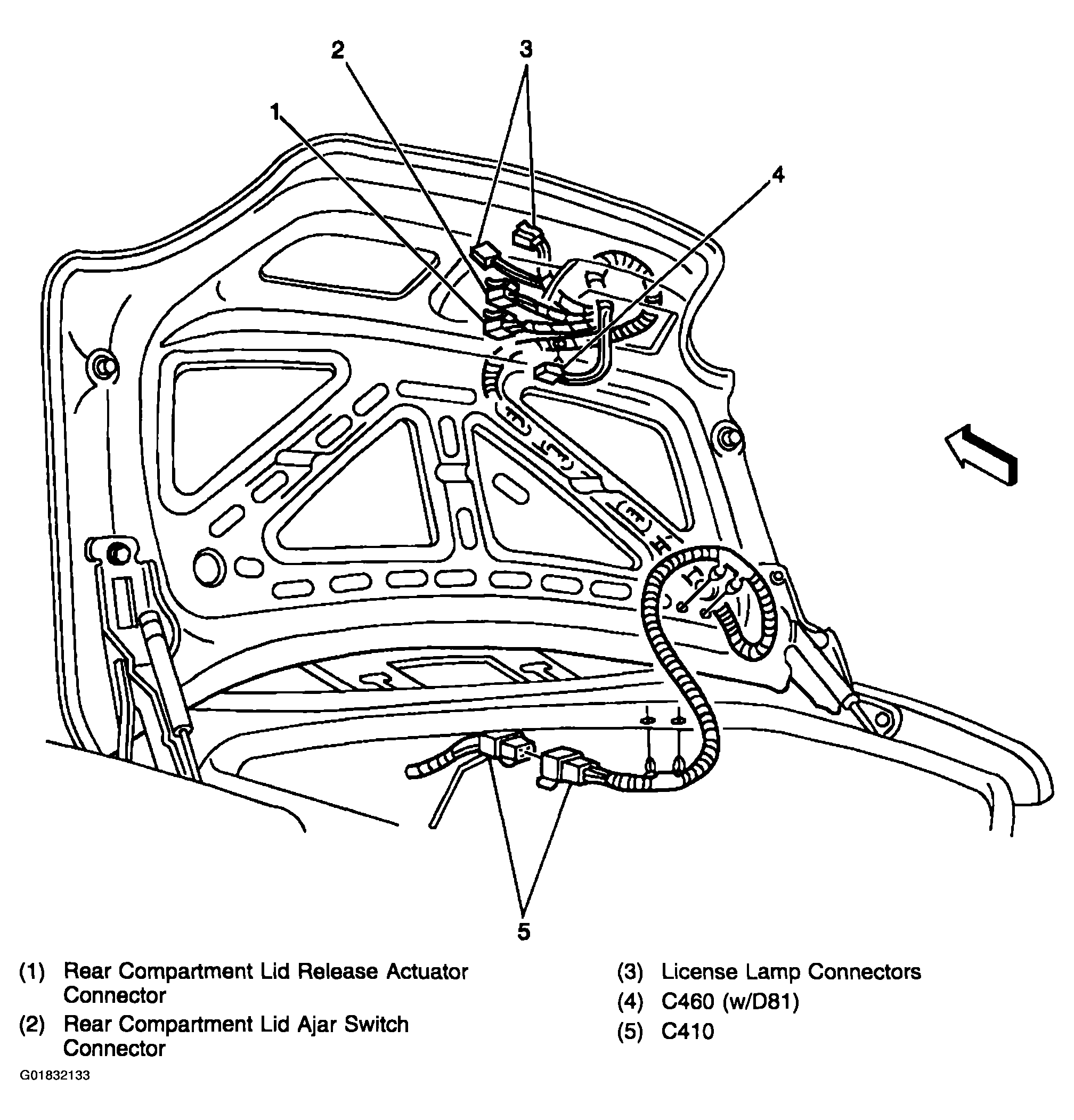

Fig 3: Under Rear Compartment Lid Component Views

Courtesy of GENERAL MOTORS CORP.

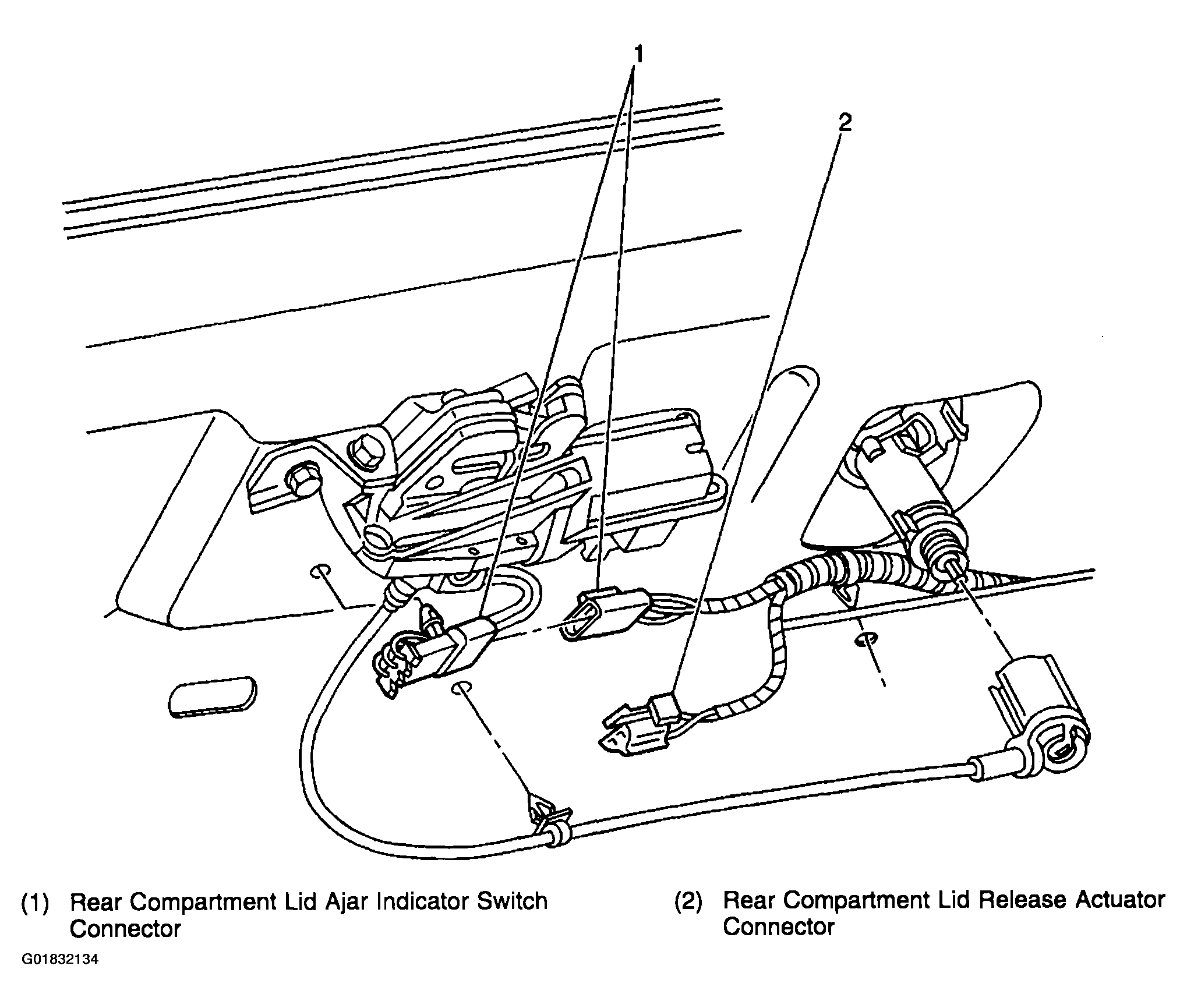

Fig 4: Inside Rear Compartment Component Views

Courtesy of GENERAL MOTORS CORP.
