Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

When replacing an weld joint molding do the following:
1. 1.1. Use tape to protect the mounting surface during removal.
2. 1.2. Use tape for alignment marks for installation of the molding.
Heat the weld joint molding using a J 25070.
Apply heat using a circular motion for about 30 seconds.

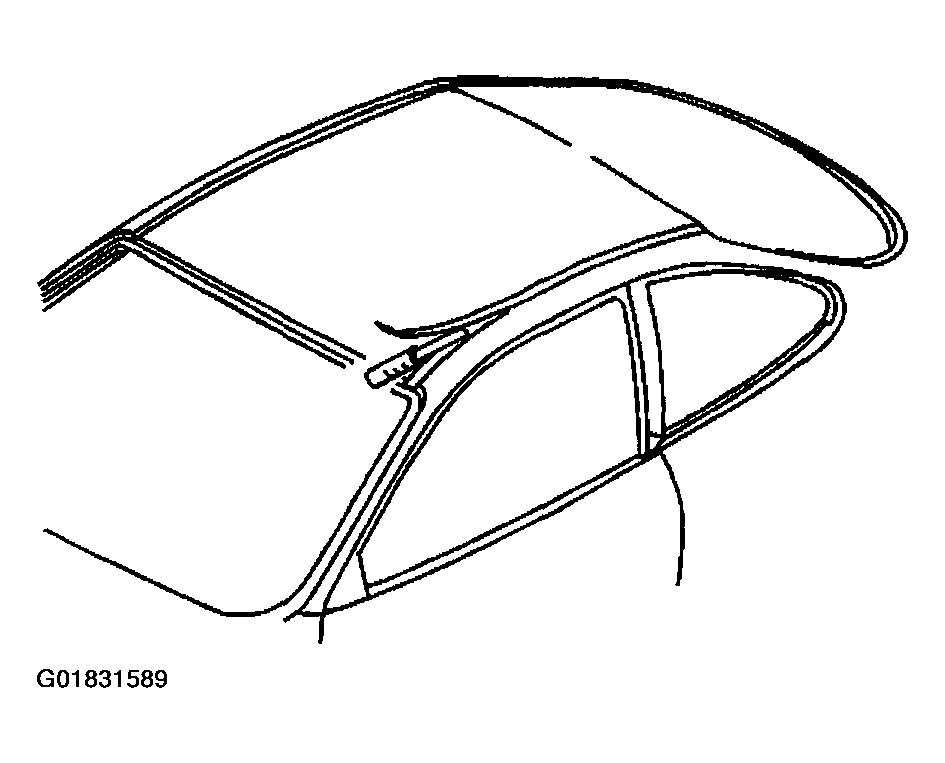

Fig 1: Heat Weld Joint Molding Using J 25070
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE .
Use a plastic, flat-bladed tool to remove the weld joint molding from the panel surface.
When replacing, remove all adhesive as follows:

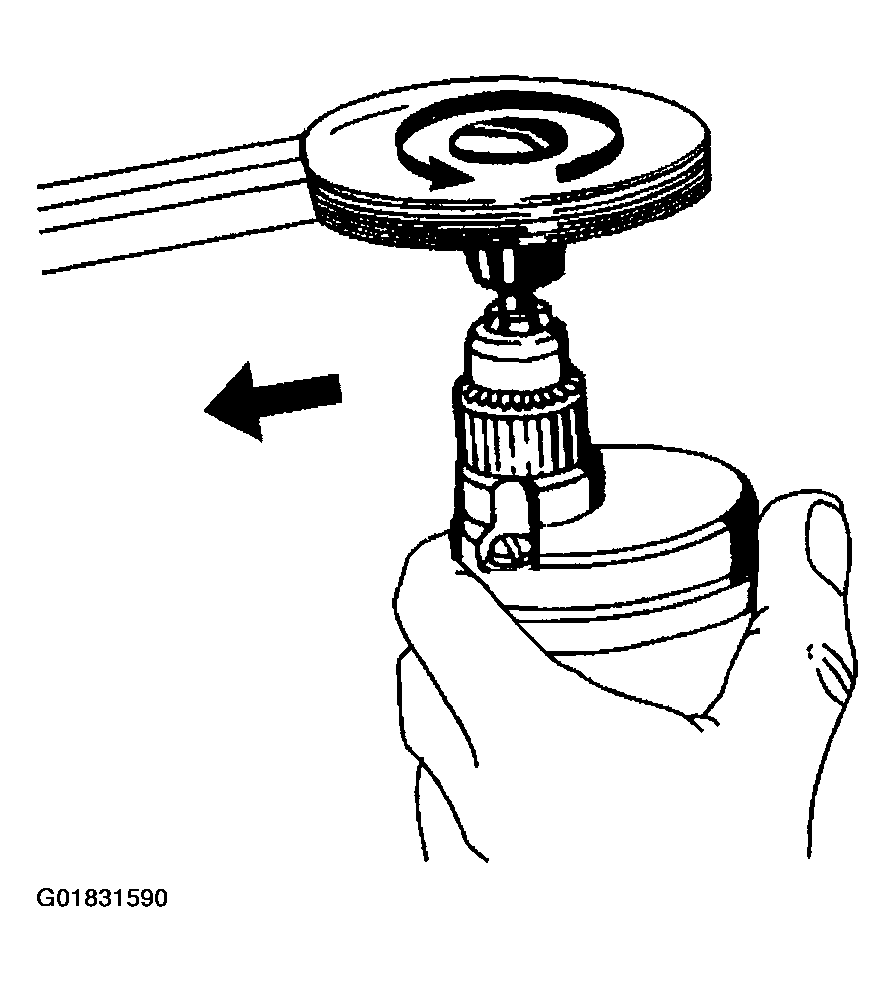

- For body panels use a 3M™ Scotch Brite molding adhesive remover disk 3M™ P/N 07502 or equivalent.
- For plastic panels use a lint free cloth and Varnish Makers and Painters (VMP) naptha or a 50/50 mixture by volume of isopropyl alcohol and water to remove the adhesive.
Fig 2: Remove Weld Joint Molding Using Flat - Bladed Tool
Courtesy of GENERAL MOTORS CORP.
