Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Important: Apply the emblem/nameplate in an environment that is free from dust or other dirt that could come into contact with the sticky backing. Foreign material may cause improper adhesion.

Ensure the area where the emblem/nameplate will be installed is clean and dry.
Apply tape and mark the location as shown for the Oldsmobile nameplate.
Heat the mounting surface to approximately 27-41 °C (80-105°F) using the J 25070 , if necessary.
Ensure that the temperature of the emblem/nameplate is approximately 29-32°C (85-90°F).

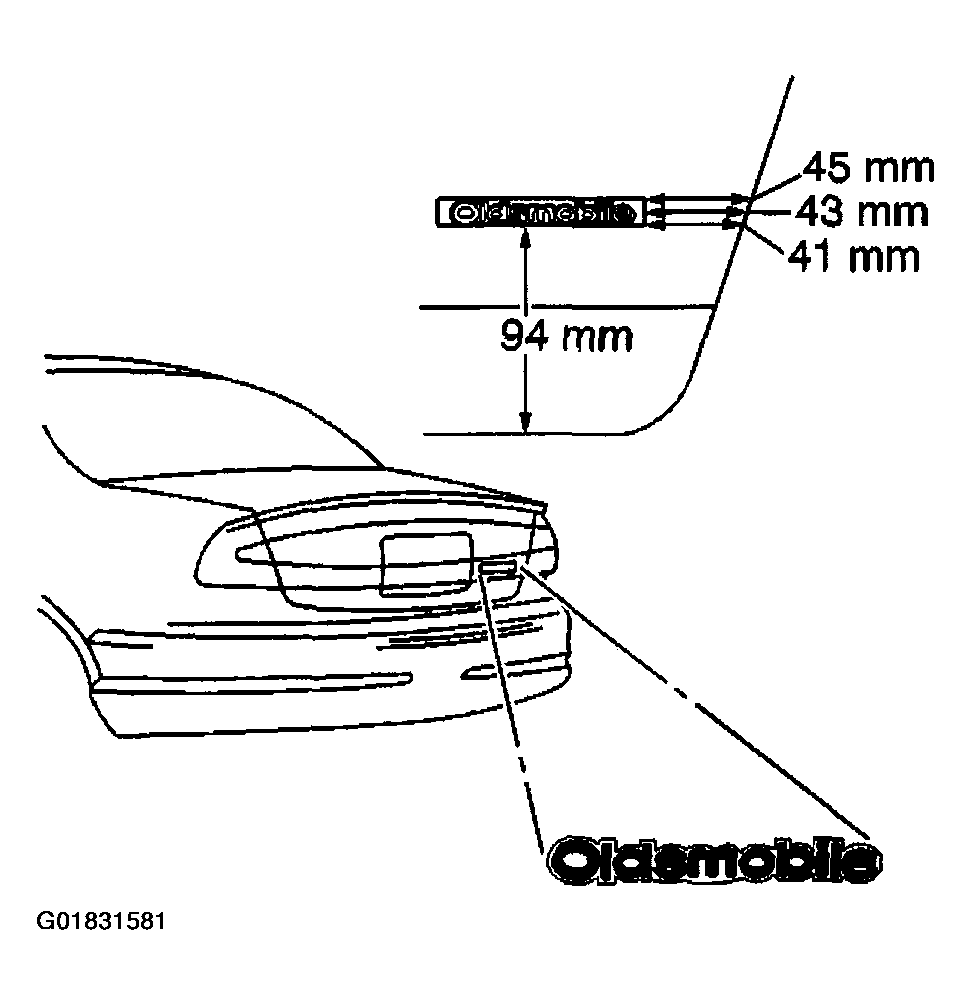

Fig 1: Position Emblem/Nameplate To Location Marks & Press To Mounting Surface
Courtesy of GENERAL MOTORS CORP.

Important: Do not touch the adhesive backing on the emblem/nameplate.
Remove the protective liner from the back of the emblem/nameplate.
Position the emblem/nameplate to the location marks and press the emblem/nameplate to the mounting surface.
Apply equal pressure along the emblem/nameplate to uniformly bond the item to the mounting surface.
Remove the protective tape from the mounting surface.
