Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

When replacing or repairing an emblem/nameplate do the following:
1. 1.1. Use tape to protect the mounting surface during removal.
2. 1.2. Use tape for alignment marks for installation of the emblem/nameplate.
To remove an emblem/nameplate, heat the emblem/nameplate using J 25070.
Apply heat using a circular motion for about 30 seconds.

NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE .
Use a plastic, flat-bladed tool to remove the emblem/nameplate from the panel surface.

Fig 1: Remove Emblem/Nameplate Using Flat - Bladed Tool
Courtesy of GENERAL MOTORS CORP.

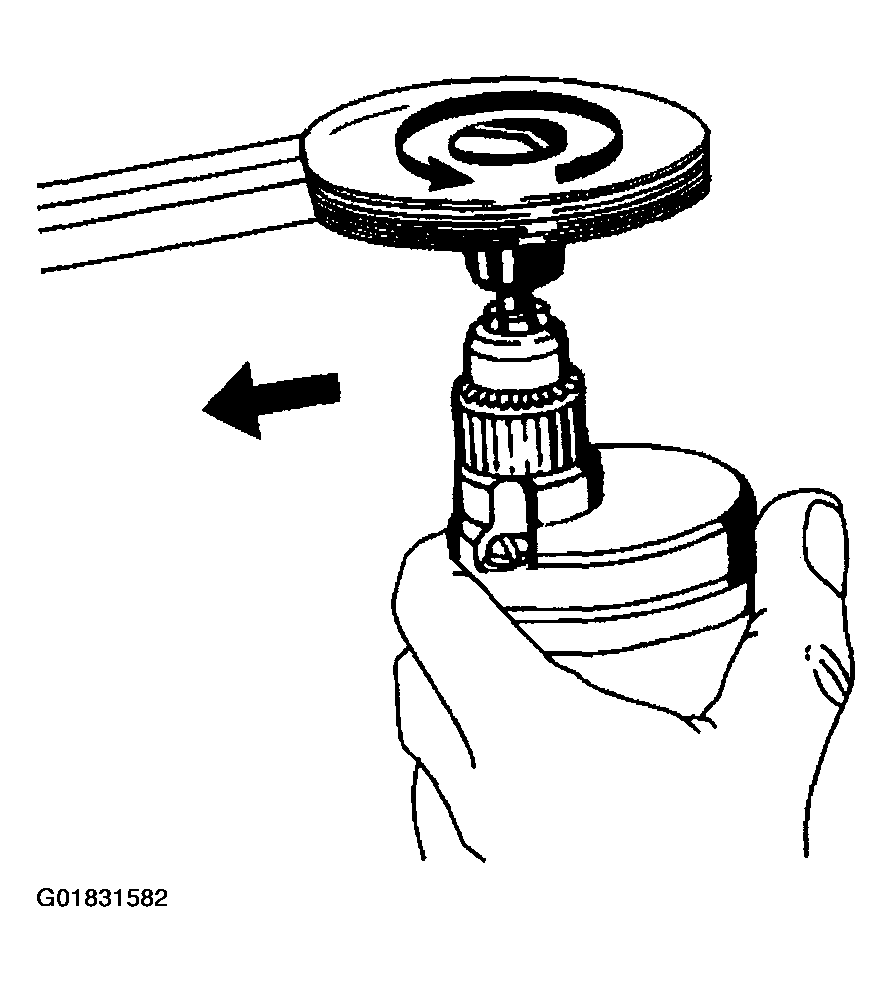

When replacing, remove all adhesive as follows:
- For body panels use a 3M™ Scotch Brite molding adhesive remover disk 3M™ P/N 07502 or equivalent.
- For plastic panels use a lint free cloth and Varnish Makers and Painters (VMP) naptha or a 50/50 mixture by volume of isopropyl alcohol and water to remove the adhesive.
