Heated Seats Schematics (Driver)

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

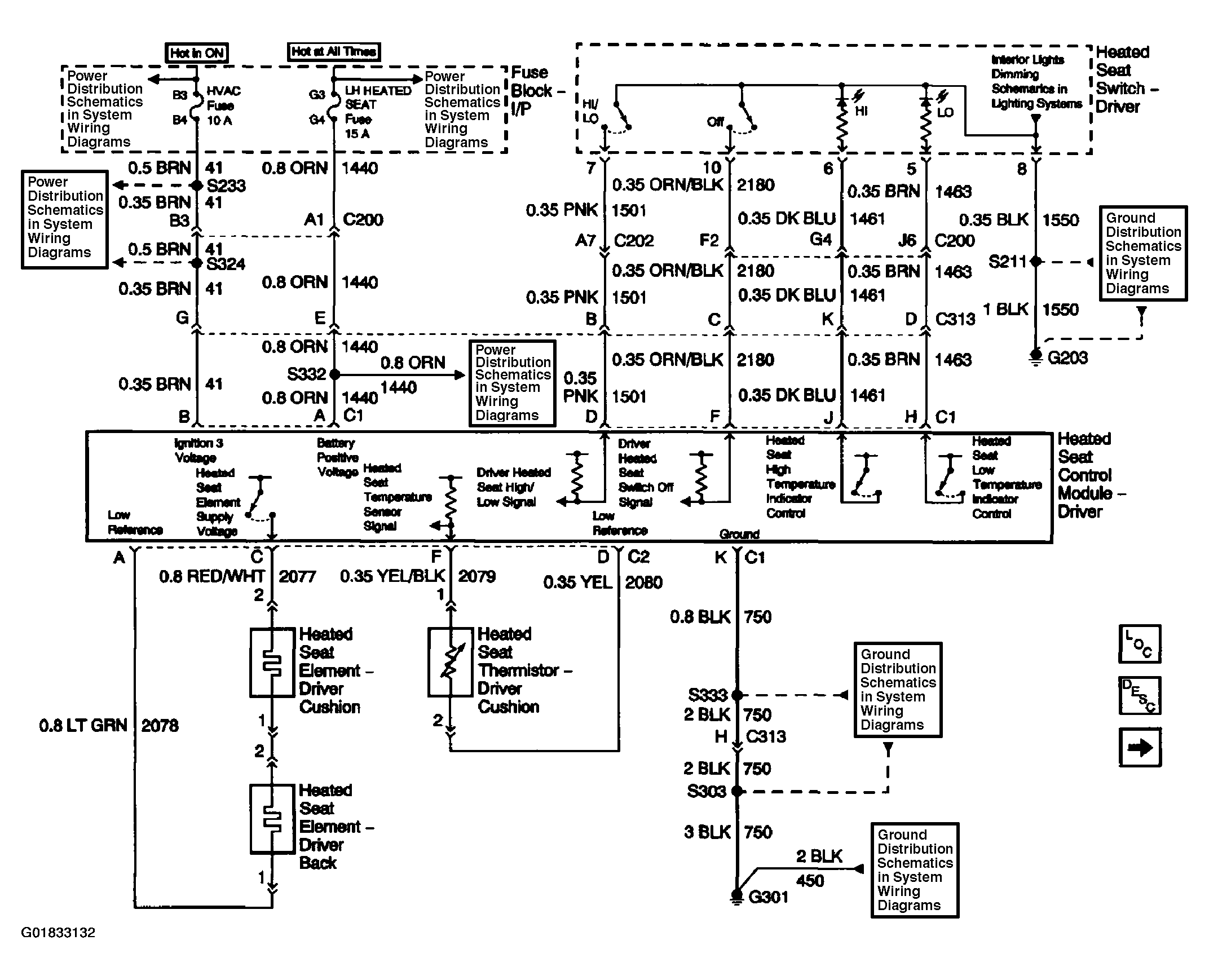

Fig 1: Heated Seats Schematics (Driver)
G01833132Courtesy of GENERAL MOTORS CORP.
