Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat back recliner handle. Refer to Seat Back Recliner Handle Replacement - Front .
  2. Remove the screws from the seat cushion trim panel.
  3. Remove the seat cushion trim panel.

    Pull the seat cushion trim panel to release the two retaining clips located on each side the recliner handle hole.

  4. Disconnect the power seat switches electrical connectors.
  5. Remove the seat cushion trim panel from the seat.
  6. Remove the six-way power seat switch, if required. Refer to Seat Switch Replacement - Power .

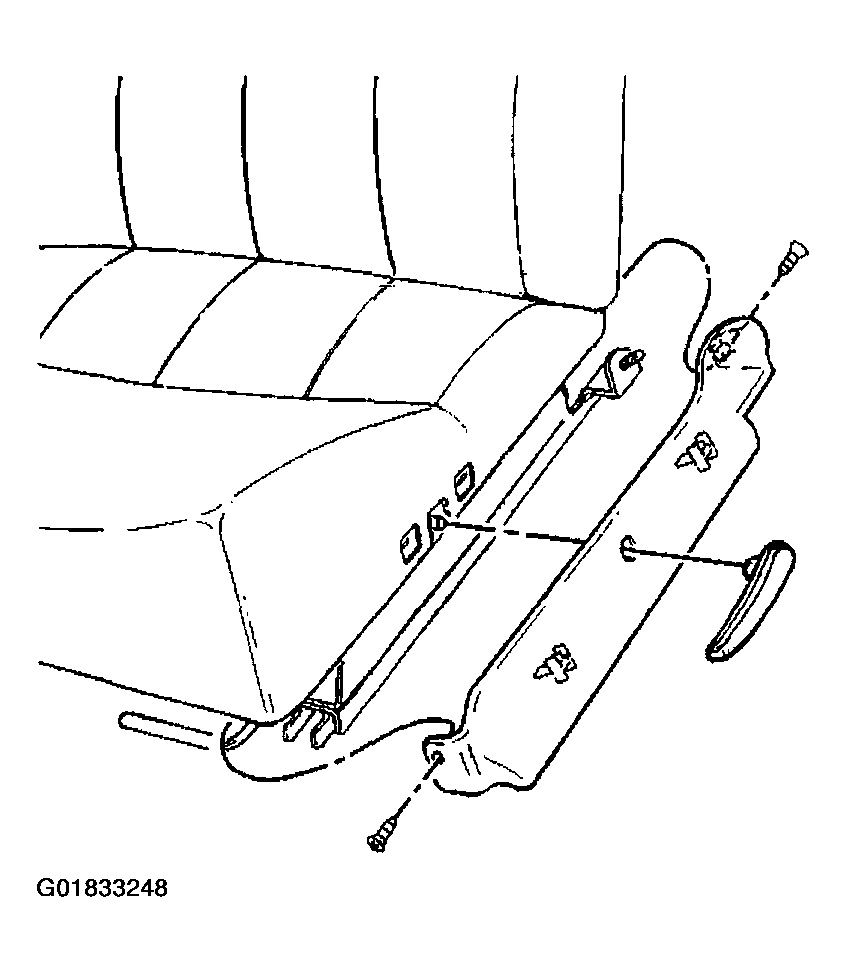

    Fig 1: Removing Six-Way Power Seat Switch
    G01833248Courtesy of GENERAL MOTORS CORP.
