Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the six-way power seat switch, if required. Refer to Seat Switch Replacement - Power .
  2. Connect the power seat switches electrical connectors.
  3. Install the seat cushion trim panel, pressing in until the two retaining clips are fully seated.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the seat cushion trim panel screws.

    Tighten

    Tighten the seat cushion trim panel screws to 3 N.m (27 lb in).

  5. Install the front seat back recliner handle. Refer to Seat Back Recliner Handle Replacement - Front .

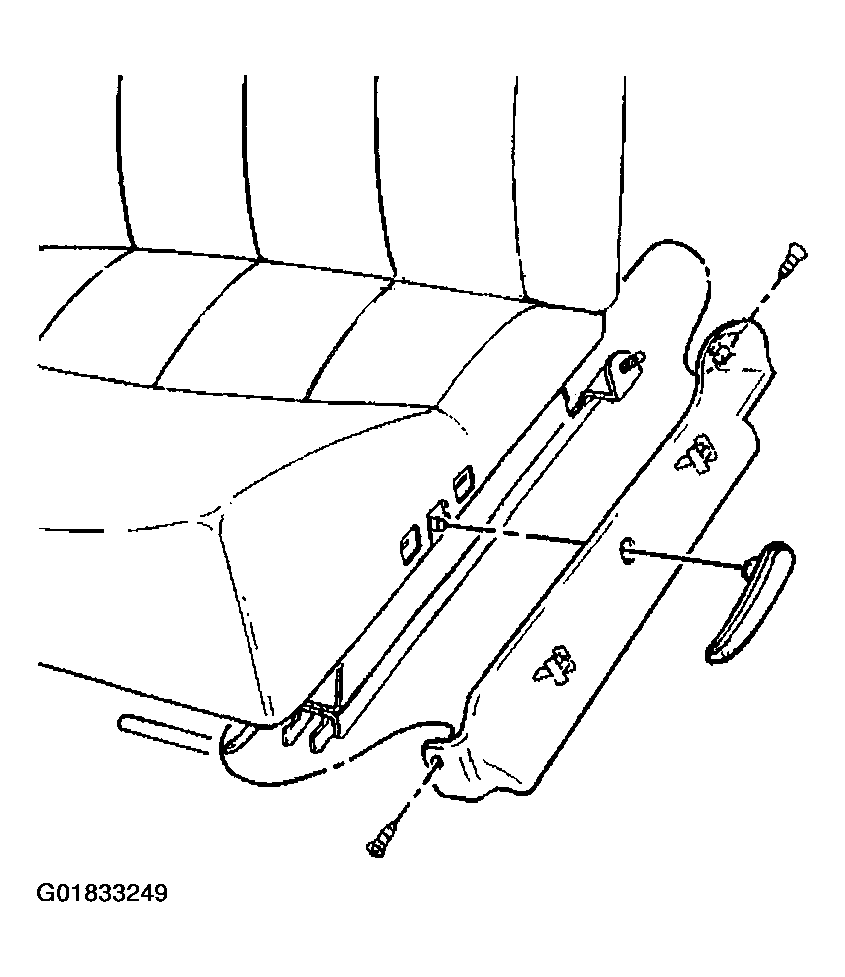

    Fig 1: Installing Six-Way Power Seat Switch
    G01833249Courtesy of GENERAL MOTORS CORP.
