Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the finish trim panel. Refer to Trim Panel Replacement - Front Seat .
  2. Remove the power seat switch screws.
  3. Remove the power seat switch from the finish trim panel.

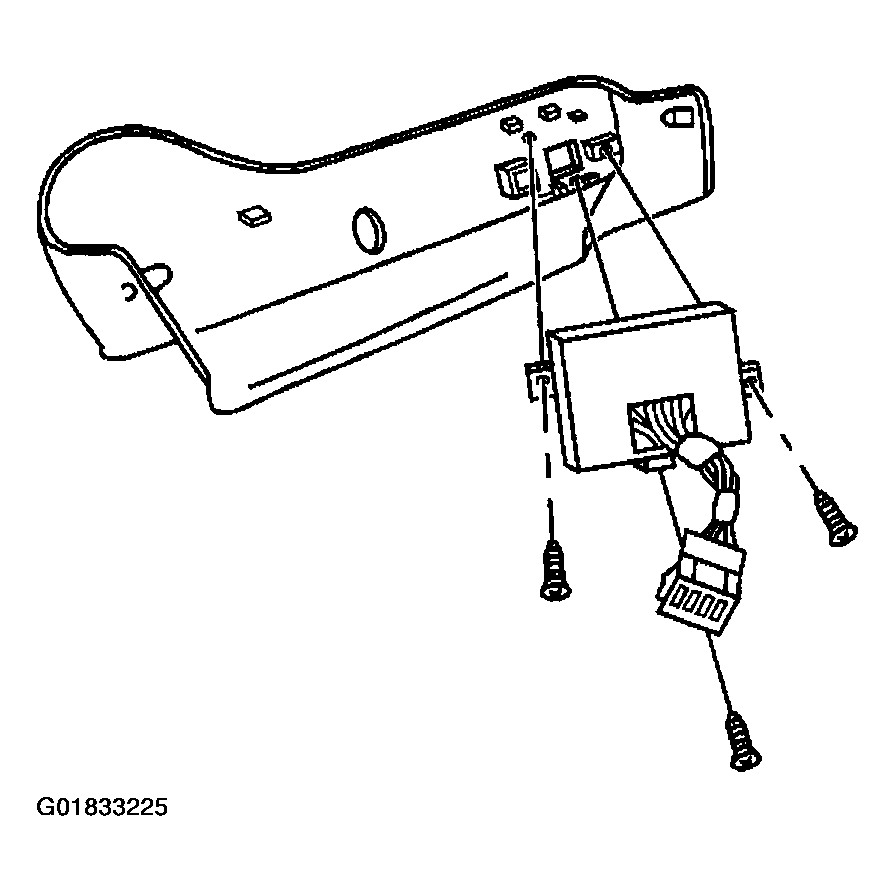

    Fig 1: Removing Power Seat Switch Screws
    G01833225Courtesy of GENERAL MOTORS CORP.
