Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
  2. Unsnap the seat cushion retainer from the floor using a flat-bladed tool.
  3. Remove the seat cushion retainer from the floor.

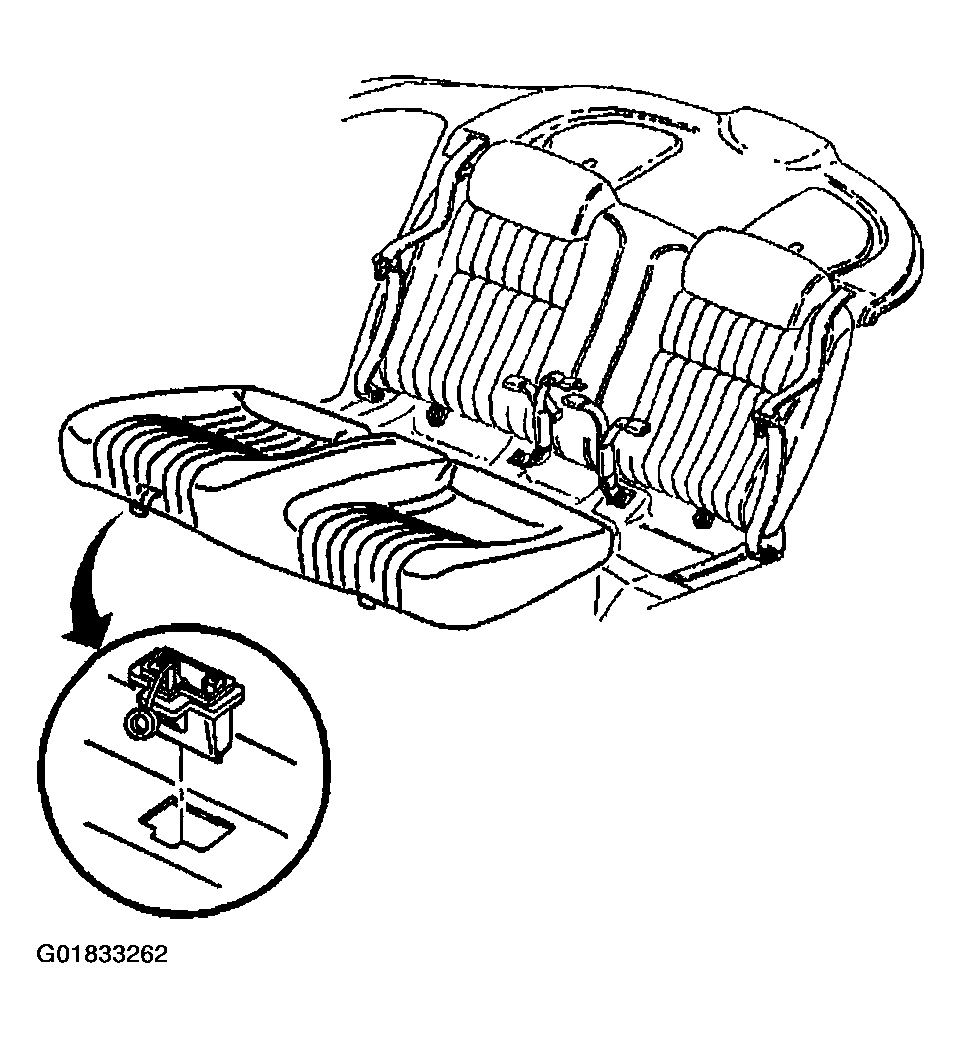

    Fig 1: Removing Seat Cushion Retainer From Floor
    G01833262Courtesy of GENERAL MOTORS CORP.
