Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the tabs on both of the rear seat cushion retainers.

    Lift the front of the seat cushion upwards.

  2. Remove the seat cushion from the vehicle.

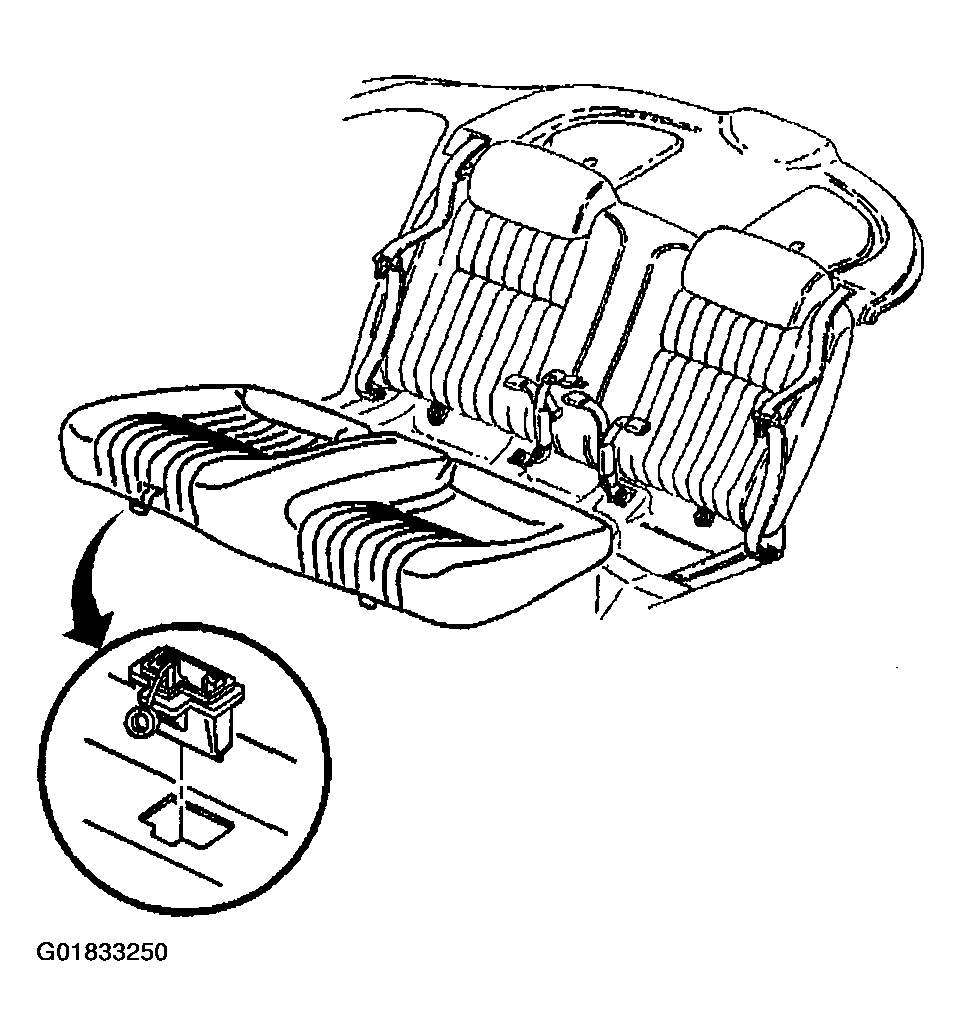

    Fig 1: Removing Seat Cushion From Vehicle
    G01833250Courtesy of GENERAL MOTORS CORP.
