Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion into the vehicle.

    Route the seat center belts through the seat cushion.

  2. Align the seat cushion loops to the retainers.

    Firmly push on the seat cushion to engage the retainers.

  3. Pull upwards on the front of the seat cushion. If the retainers do not hold tightly, replace the seat cushion retainers. Refer to Seat Cushion Retainer Replacement - Rear .

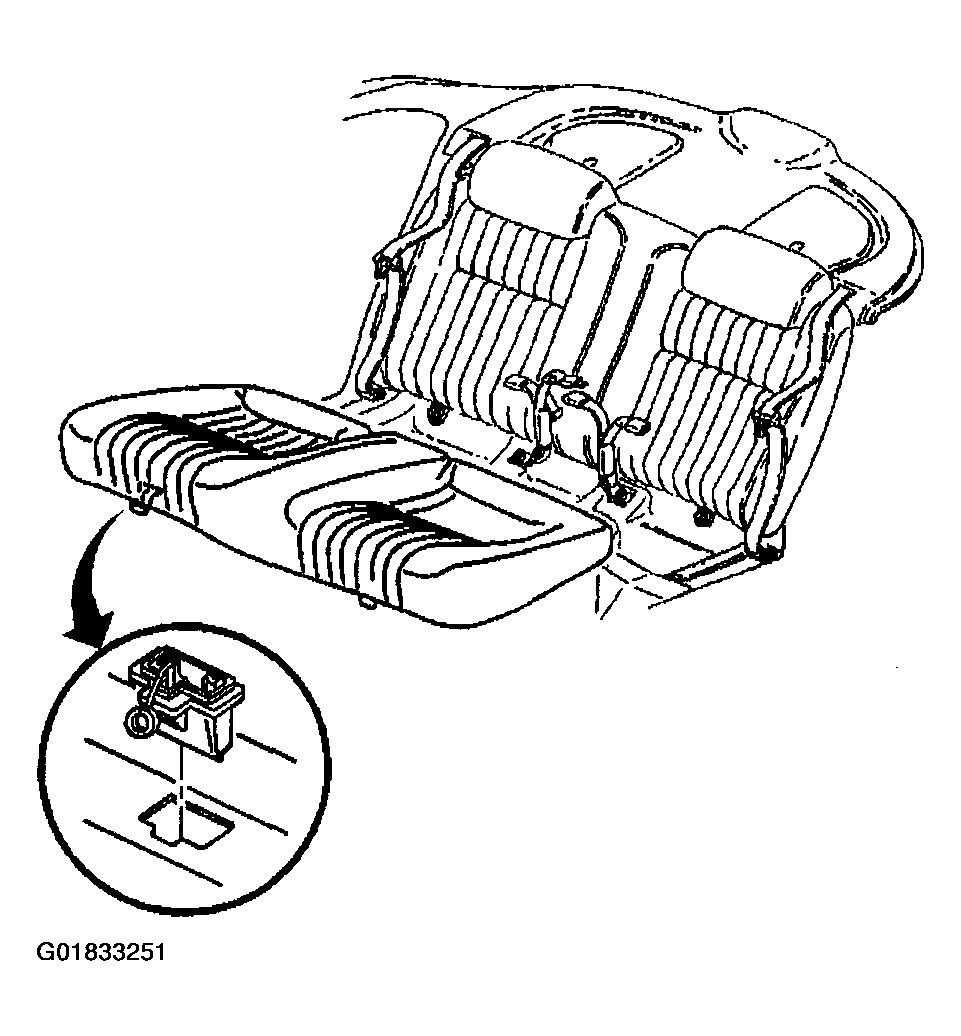

    Fig 1: Aligning Seat Cushion Loops To Retainers
    G01833251Courtesy of GENERAL MOTORS CORP.
