Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat cushion cover. Refer to Seat Cushion Cover Replacement - Front .
  2. Remove the front seat cushion pad from the cushion frame.

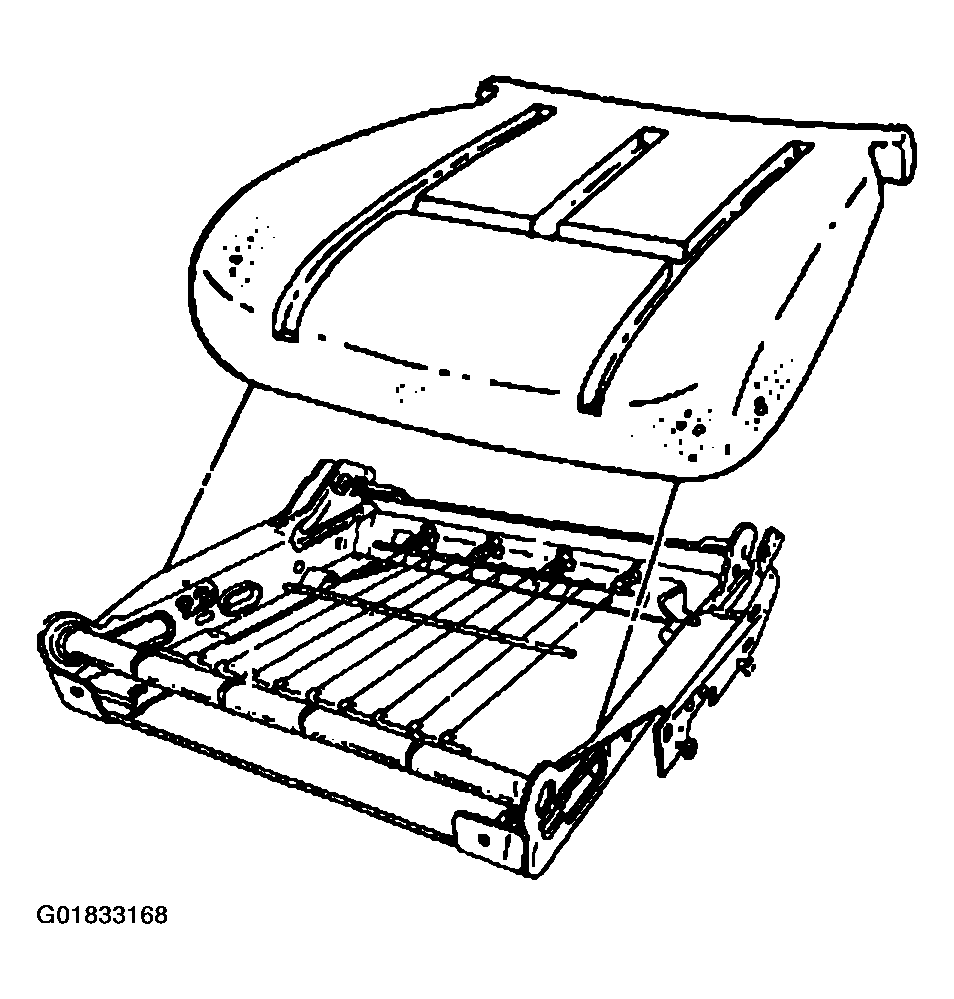

    Fig 1: Removing Front Seat Cushion Pad From Cushion Frame
    G01833168Courtesy of GENERAL MOTORS CORP.
