Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat cushion pad to the cushion frame.
  2. Install the front seat cushion cover. Refer to Seat Cushion Cover Replacement - Front .

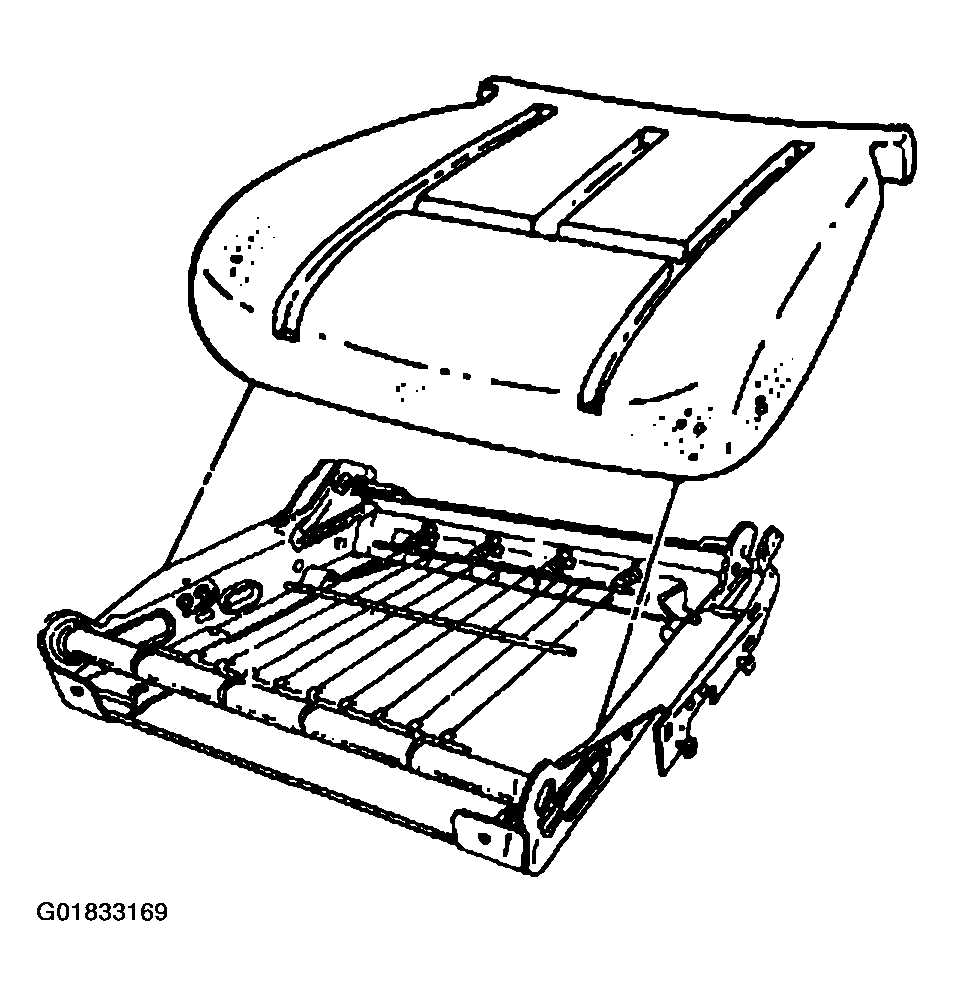

    Fig 1: Installing Front Seat Cushion Pad To Cushion Frame
    G01833169Courtesy of GENERAL MOTORS CORP.
