Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat cushion cover. Refer to Seat Cushion Cover Replacement - Front .
  2. Remove the front seat cushion pad from the cushion frame.
  3. Remove the front seat adjuster. Refer to Seat Adjuster Replacement - Front (Six-Way Power)  or Seat Adjuster Replacement - Front (Two-Way Manual) .
  4. If the vehicle is equipped with a heater module, cut the tie straps and remove the module.
  5. Disconnect the seat electric harness from the cushion support.

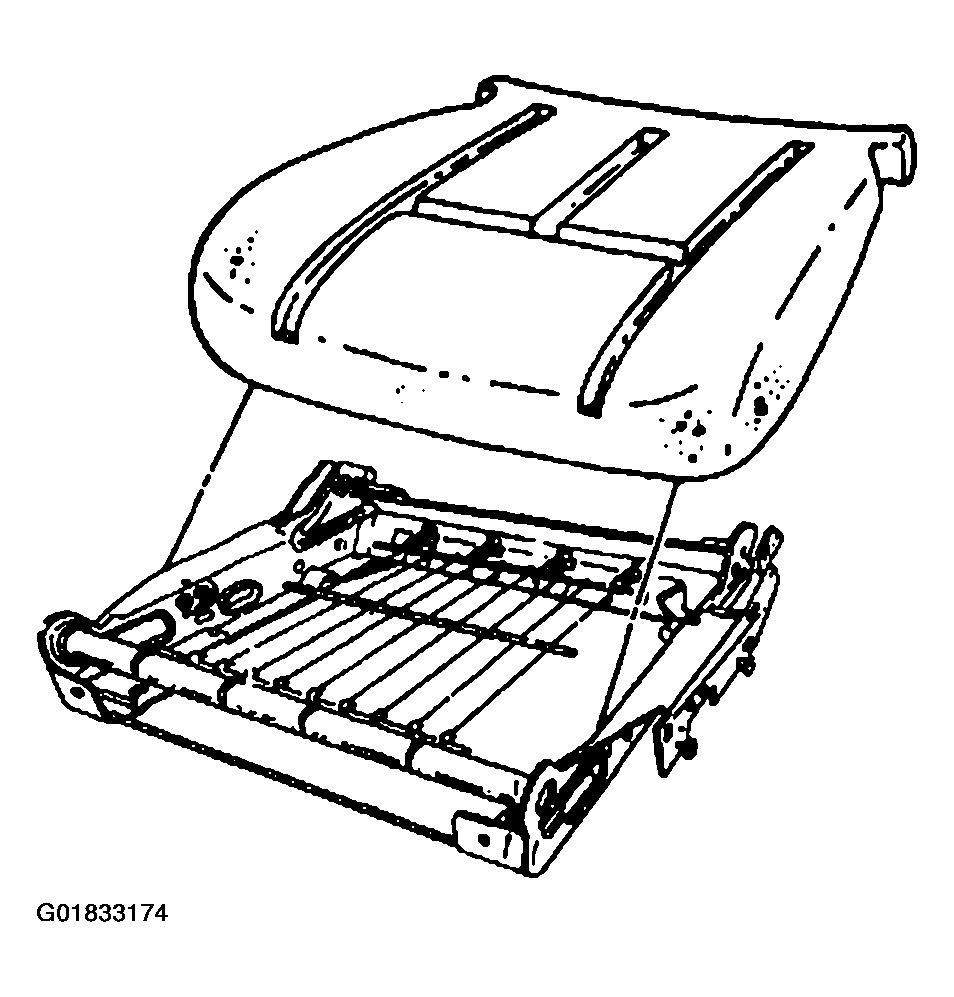

    Fig 1: Removing Front Seat Cushion Pad From Cushion Frame
    G01833174Courtesy of GENERAL MOTORS CORP.
