Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the seat electric harness to the cushion support.
  2. If equipped, position the heater module to the frame and install new tie straps.
  3. Install the front seat adjuster. Refer to Seat Adjuster Replacement - Front (Six-Way Power)  or Seat Adjuster Replacement - Front (Two-Way Manual) .
  4. Install the front seat cushion pad to the cushion frame.
  5. Install the front seat cushion cover. Refer to Seat Cushion Cover Replacement - Front .

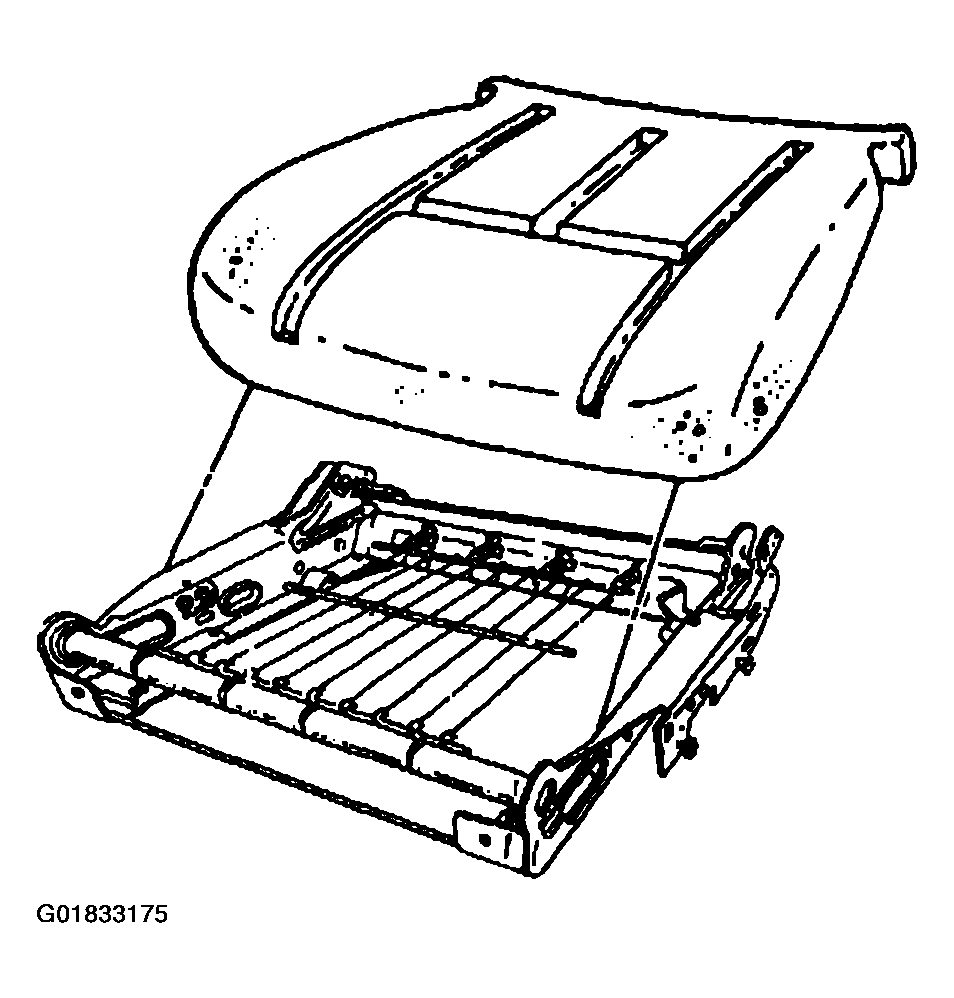

    Fig 1: Installing Front Seat Cushion Pad To Cushion Frame
    G01833175Courtesy of GENERAL MOTORS CORP.
