Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
  2. Remove the hog rings from the rear seat cushion cover.

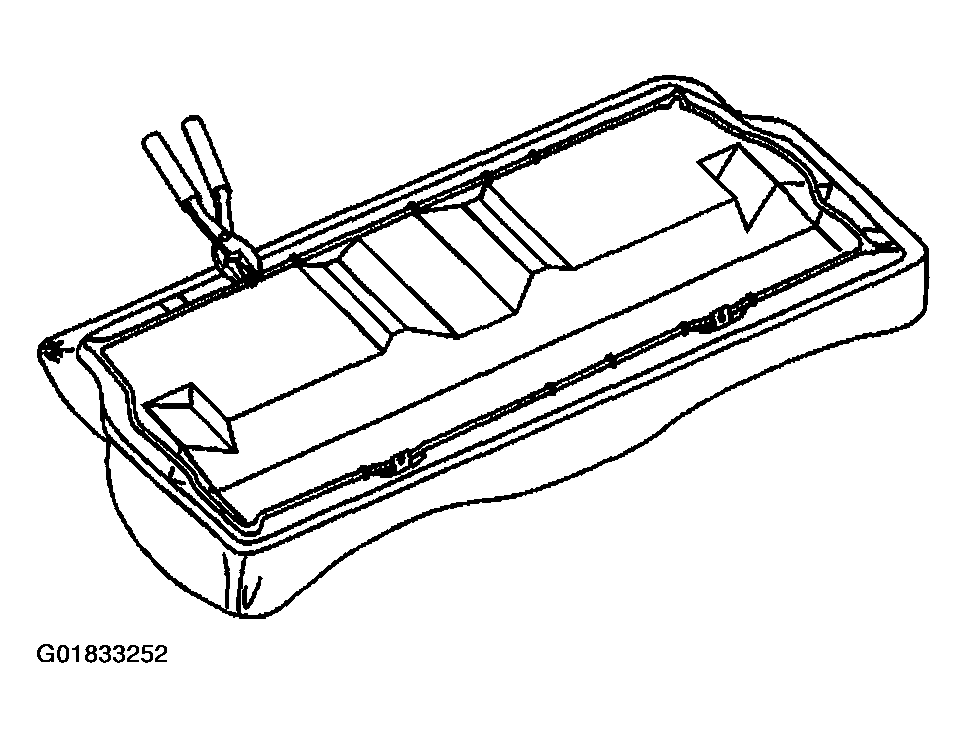

    Fig 1: Removing Hog Rings From Rear Seat Cushion Cover
    G01833252Courtesy of GENERAL MOTORS CORP.
  3. Reach inside of the rear seat cushion cover in order to unfasten the hook and the loop retainers securing the rear seat cushion cover to the pad.

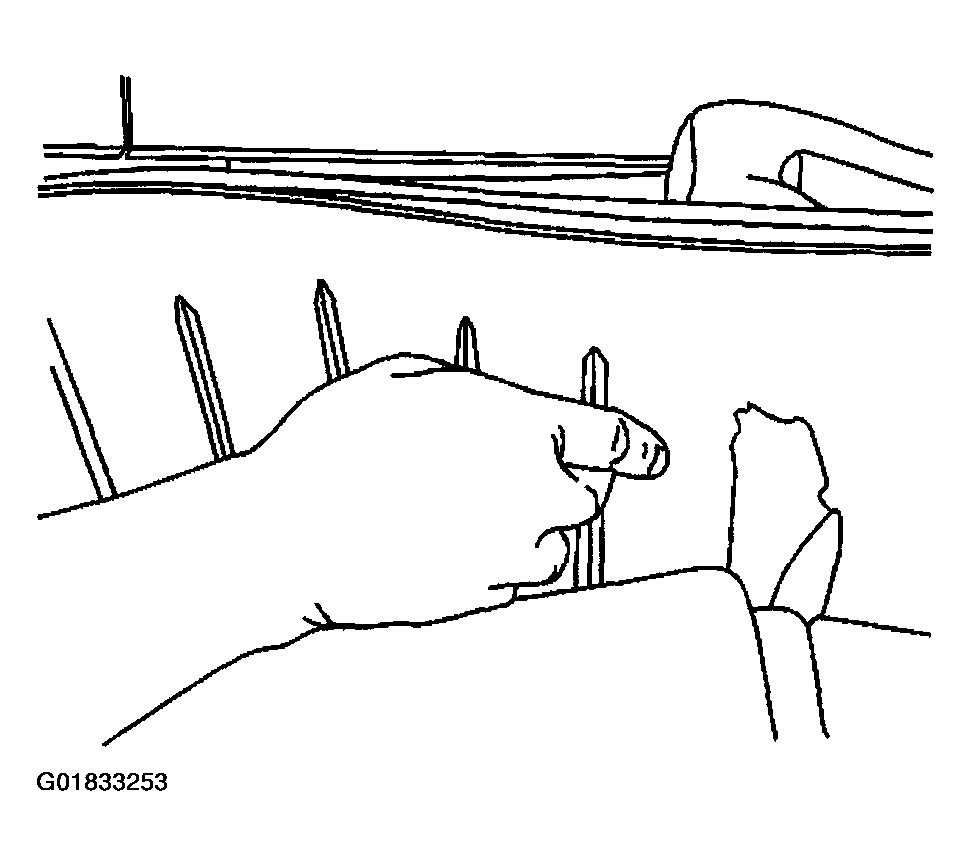

    Fig 2: Unfastening Hook And Loop Retainers Securing Rear Seat Cushion Cover To Pad
    G01833253Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear seat cushion cover from the pad.

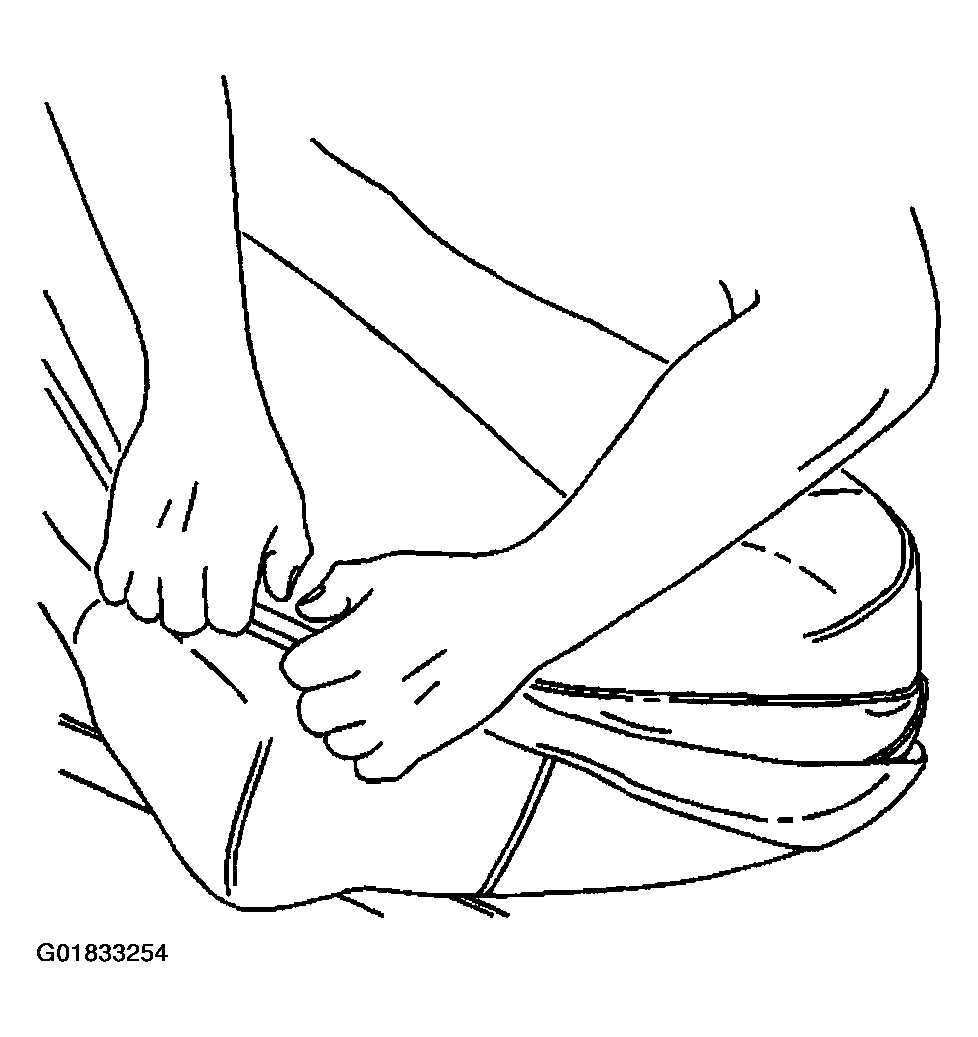

    Fig 3: Removing Rear Seat Cushion Cover From Pad
    G01833254Courtesy of GENERAL MOTORS CORP.
