Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

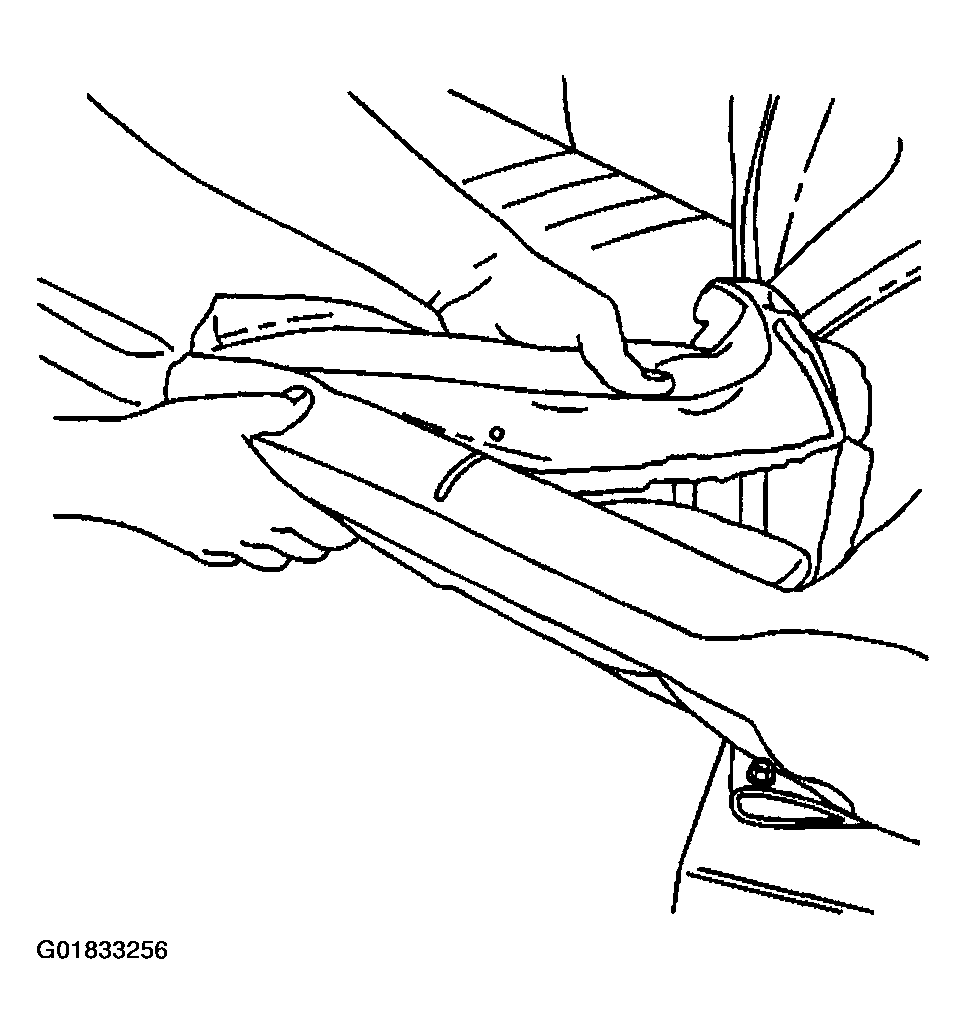

Position the rear seat cushion cover to the pad.

Fig 1: Positioning Rear Seat Cushion Cover To Pad
Courtesy of GENERAL MOTORS CORP.

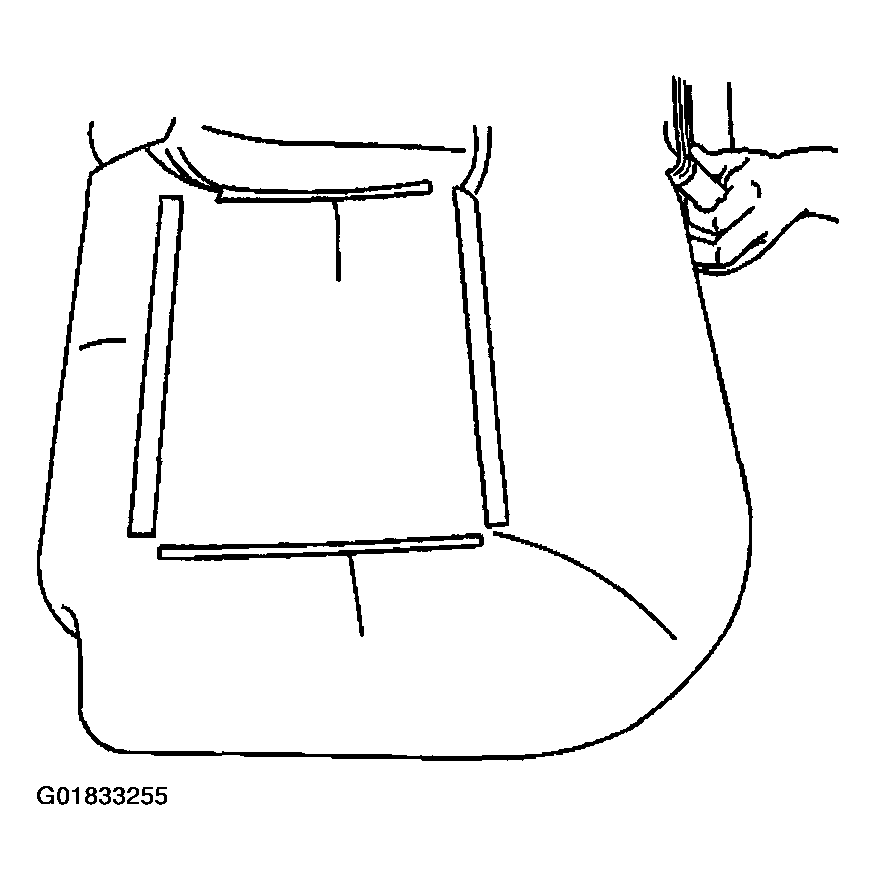

Align the alignment marks on the rear seat cushion cover to the alignment marks on the pad.

Fig 2: Aligning Alignment Marks On Rear Seat Cushion Cover To Alignment Marks On Pad
Courtesy of GENERAL MOTORS CORP.

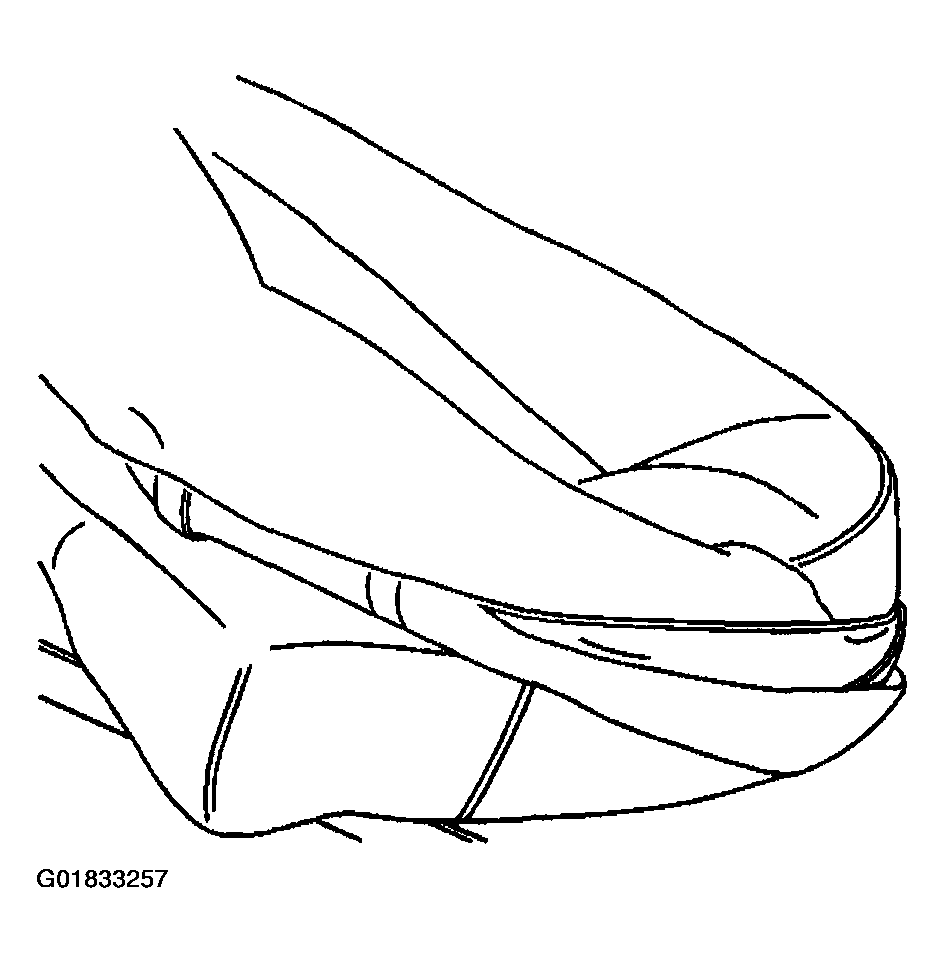

Pull the rear seat cushion cover over the pad and aline the hook and the loop retainers.

Fig 3: Pulling Rear Seat Cushion Cover Over Pad
Courtesy of GENERAL MOTORS CORP.

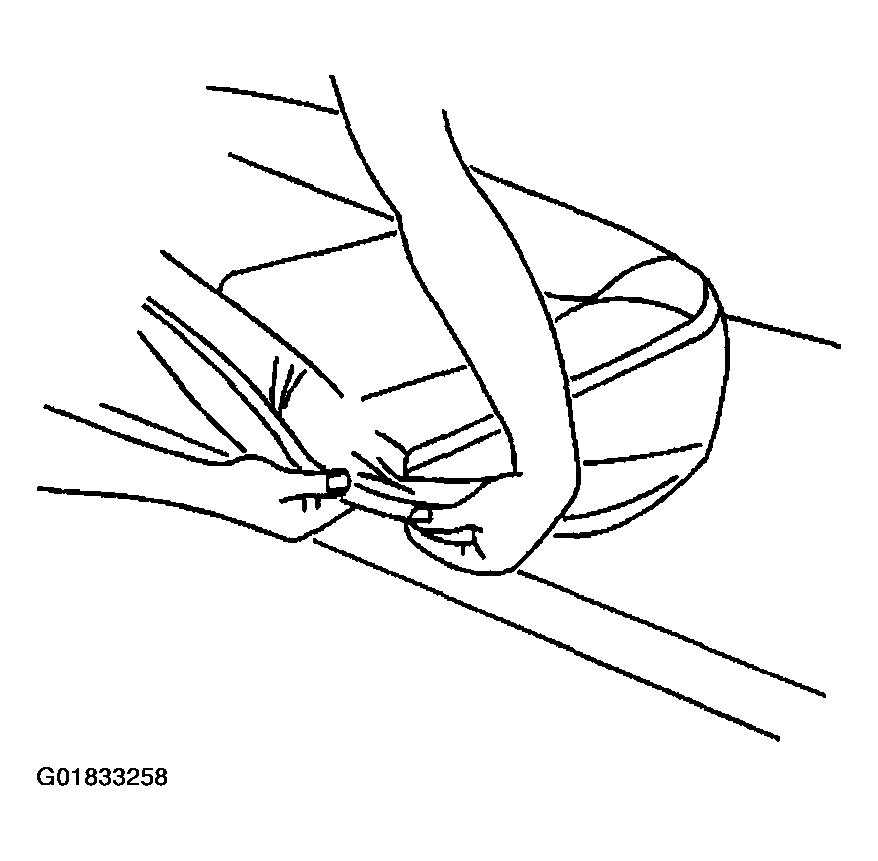

Pull the rear seat cushion cover over the pad and pull over and under the edge.

Fig 4: Pulling rear seat cushion cover over pad
Courtesy of GENERAL MOTORS CORP.

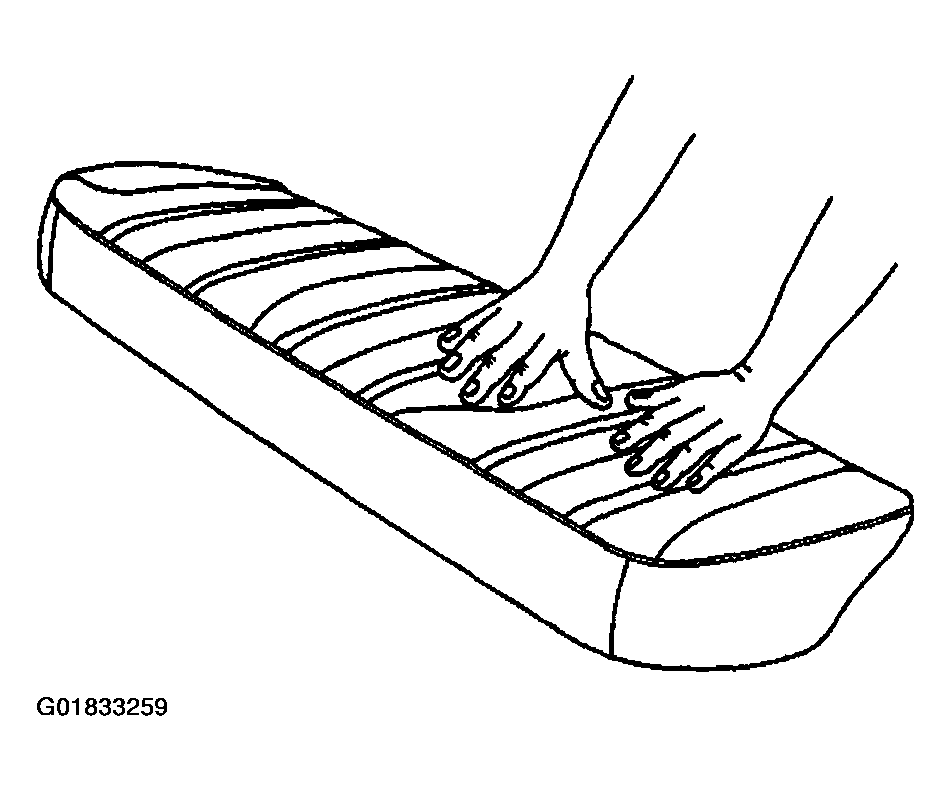

Use firm hand pressure in order to fasten the hook and the loop retainers, securing the rear seat cushion cover to the pad.

Fig 5: Fastening Hook And Loop Retainers
Courtesy of GENERAL MOTORS CORP.

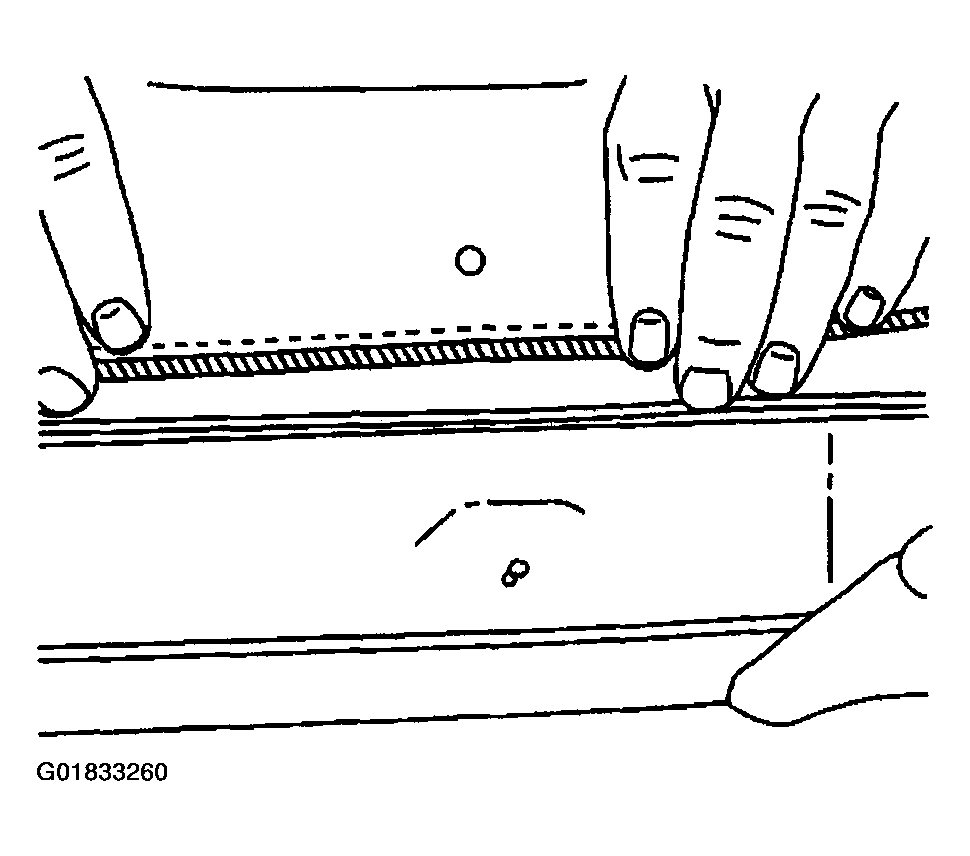

Align the alignment marks on the rear seat cushion cover to the alignment marks on the pad, on the back side.

Fig 6: Aligning Alignment Marks On Rear Seat Cushion Cover To Alignment Marks On Pad, On Back Side
Courtesy of GENERAL MOTORS CORP.

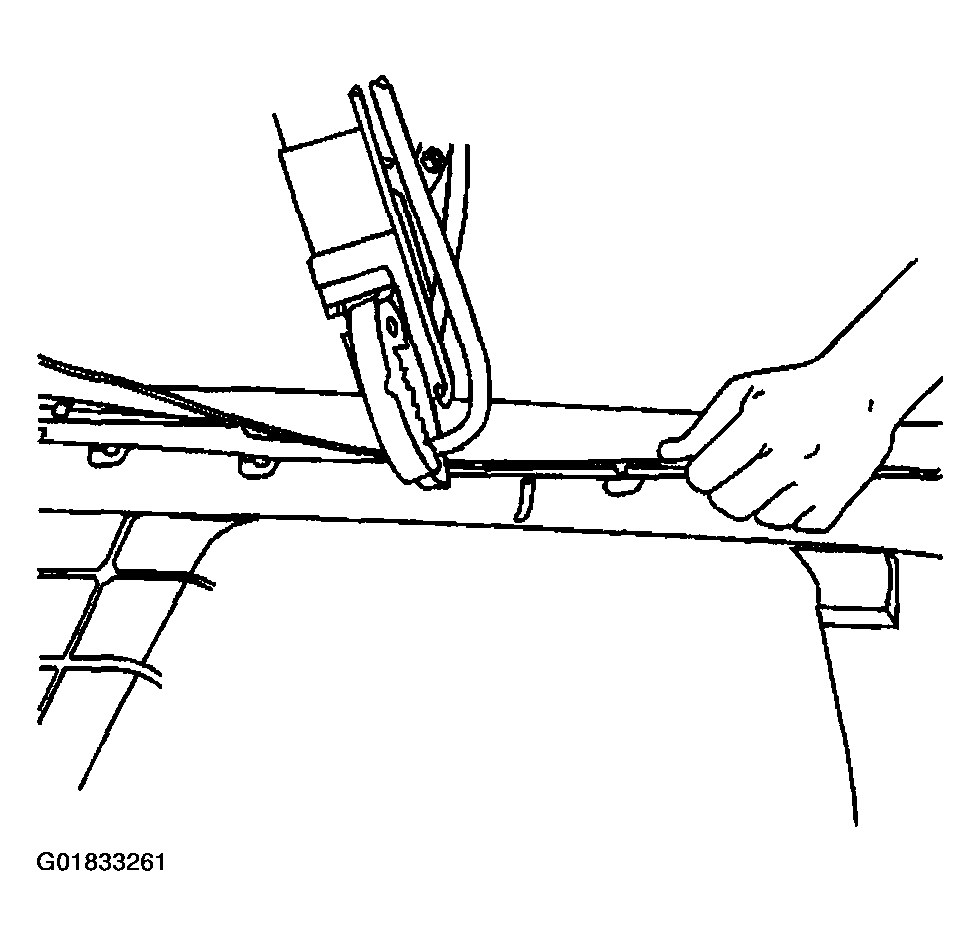

Install the hog rings to the rear seat cushion cover.
Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear .

Fig 7: Installing Hog Rings To Rear Seat Cushion Cover
Courtesy of GENERAL MOTORS CORP.
