Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
  2. Remove the rear seat back nuts from the child seat latch bracket.

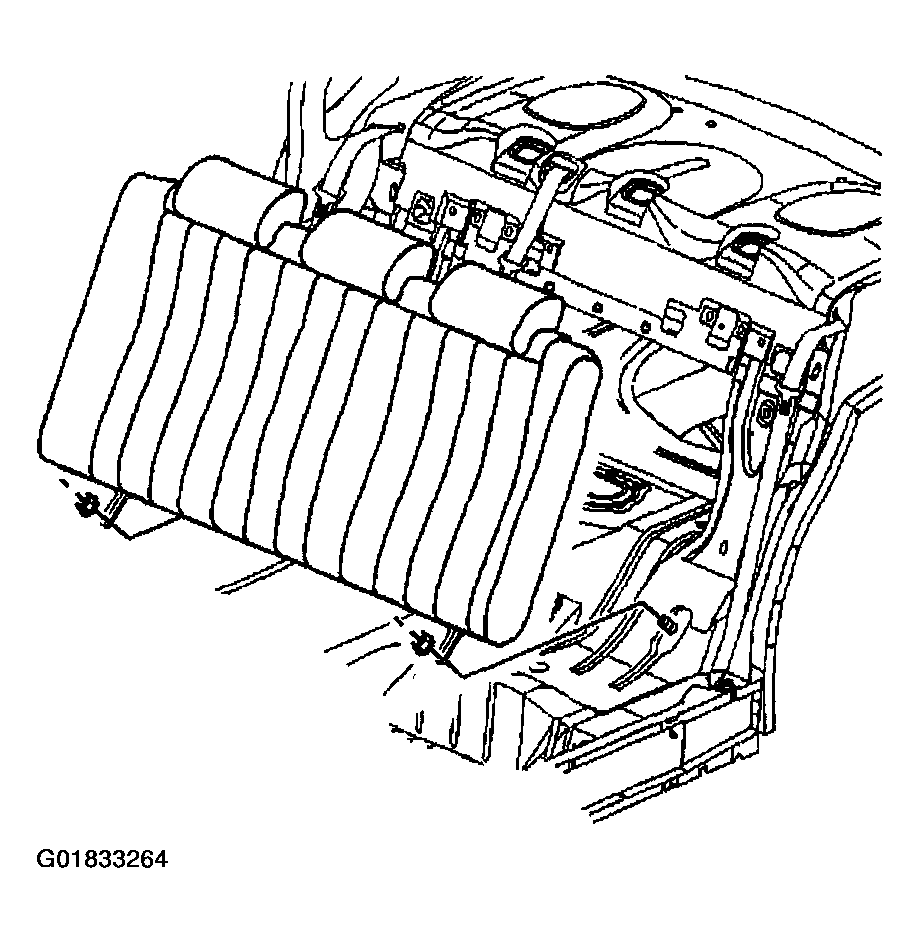

    Fig 1: Removing Rear Seat Cushion
    G01833264Courtesy of GENERAL MOTORS CORP.
  3. Grasp the bottom of the rear seat back and lift upward to disengage offsets on the upper frame bar from the hangers.
  4. Remove the rear seat back from the vehicle.

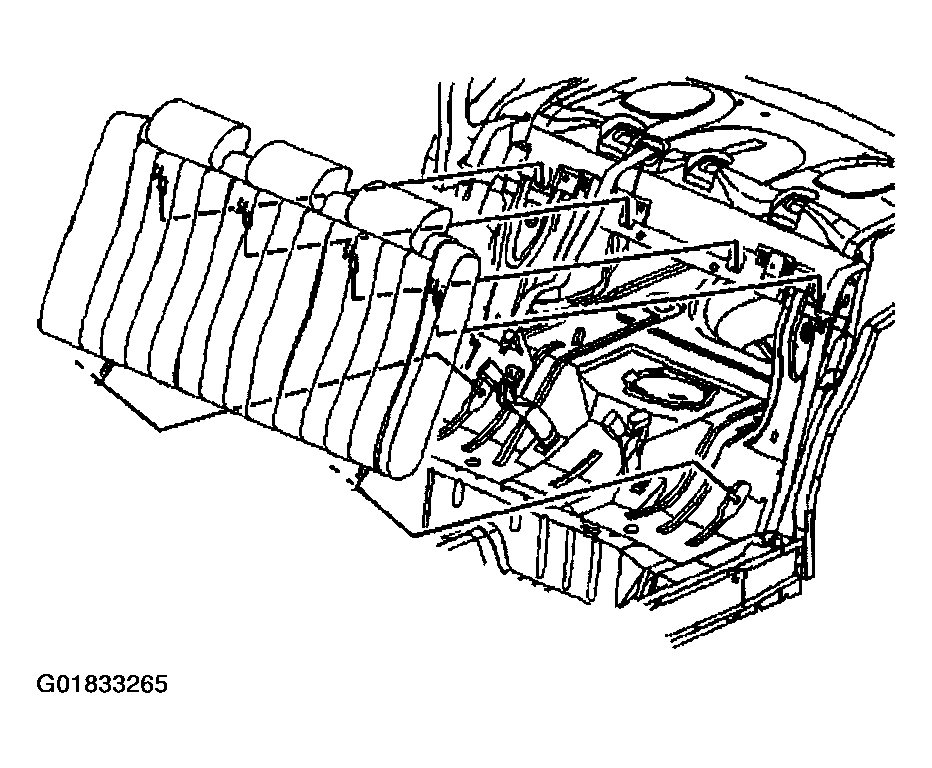

    Fig 2: Removing Rear Seat Back From Vehicle
    G01833265Courtesy of GENERAL MOTORS CORP.
