Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear seat back to the vehicle.
  2. Hook the seat back upper frame to the hangers on the rear shelf.

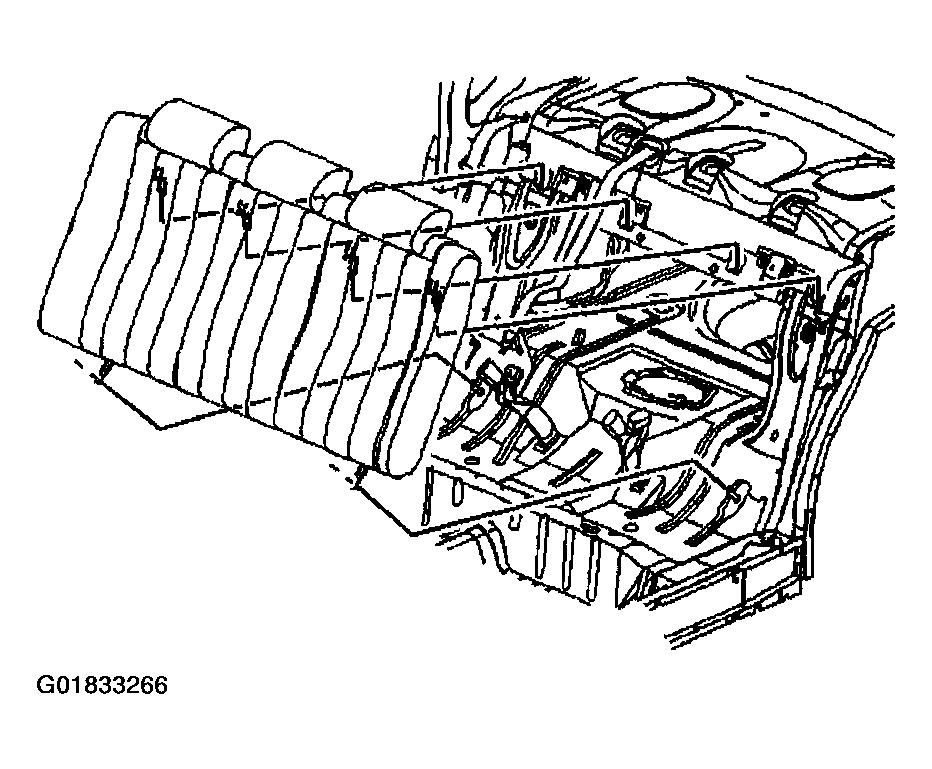

    Fig 1: Hooking Seat Back Upper Frame To Hangers On Rear Shelf
    G01833266Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the rear seat back nuts to the latch bracket.

    Tighten

    Tighten the rear seat back nuts to 10 N.m(89 lb in).

  4. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
    Fig 2: Installing Rear Seat Cushion
    G01833267Courtesy of GENERAL MOTORS CORP.
