Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
  2. Remove the rear center seat belts. Refer to SEAT BELT REPLACEMENT - CENTER REAR in Seat Belts.
  3. Remove the nut (1) from the child rear seat latch bracket.
  4. Remove the bolts (2) from each end of the latch bracket.

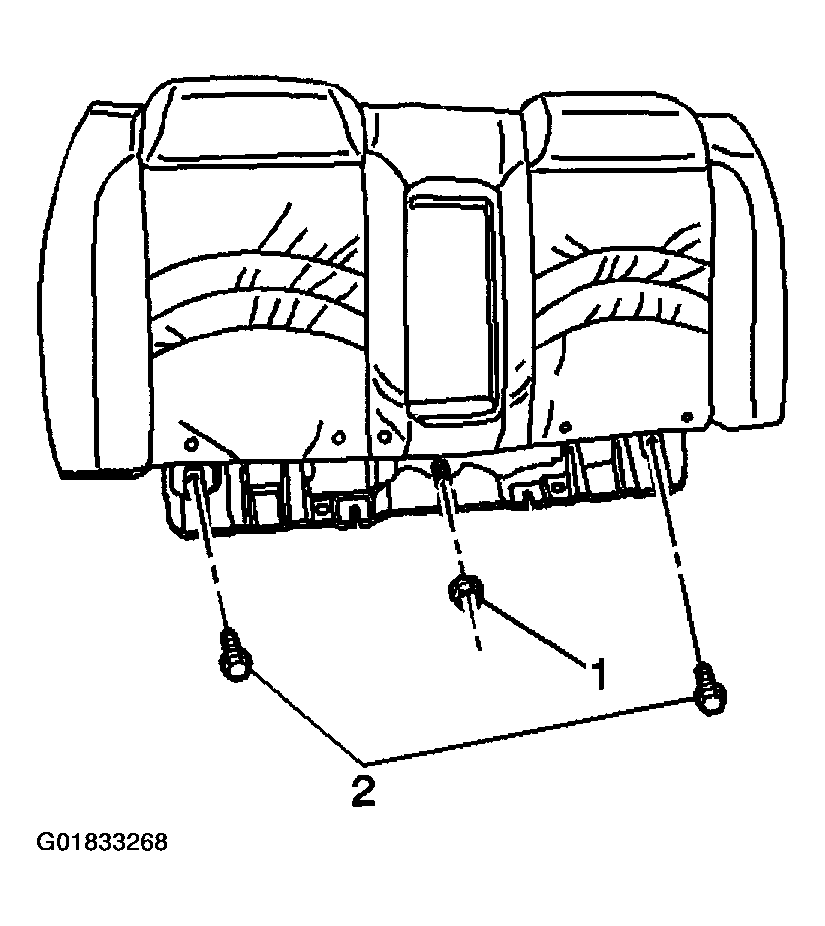

    Fig 1: Removing Child Seat Latch Bracket Nut And Bolts
    G01833268Courtesy of GENERAL MOTORS CORP.
  5. Fold the rear seat back cushions down.
  6. Remove the bolts from the rear seat latches.
  7. Remove the rear seat latches from the rear seat back.
  8. Fold the rear seat back cushions up.
  9. Reposition the seat belts from the rear seat back.
  10. Remove the rear seat back from the vehicle.

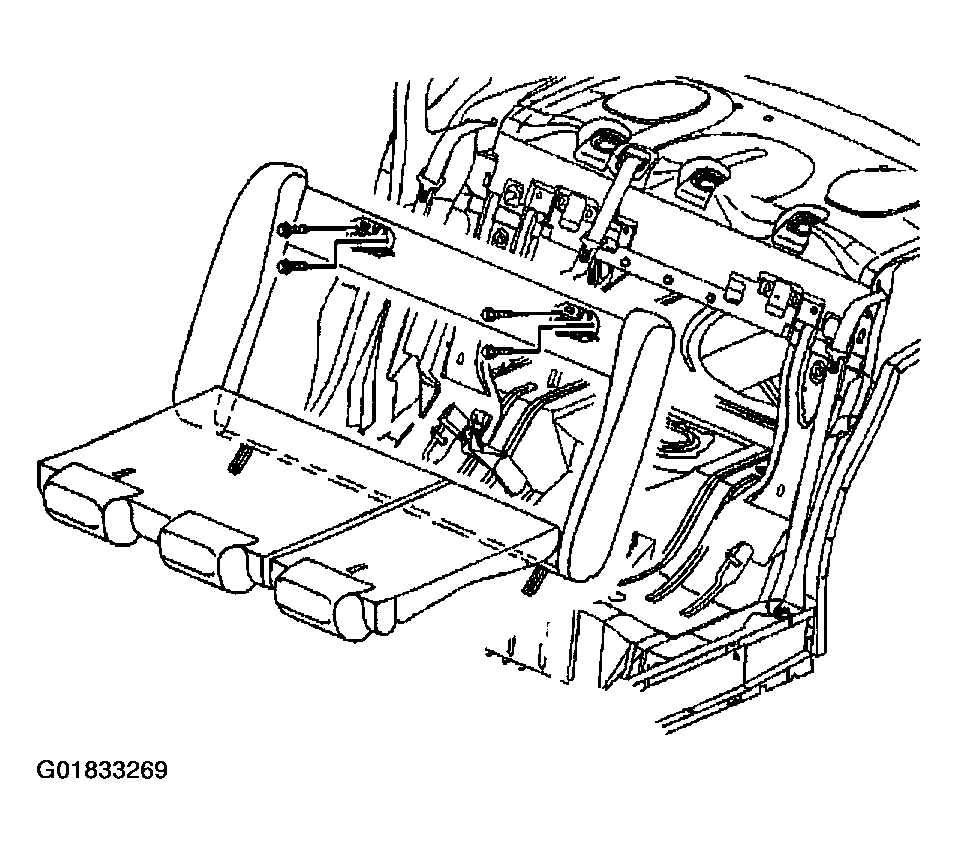

    Fig 2: Removing Bolts From Rear Seat Latches
    G01833269Courtesy of GENERAL MOTORS CORP.
