Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear seat back to the vehicle.
  2. Reposition the seat belts to the rear seat back.
    NOTE: Refer to FASTENER NOTICE .
  3. Apply a thread sealant, GM P/N 12345382 (Canadian P/N 10953489), Loctite 242, Permatex 24200 to the threads of the bolts (2) and also the stud for the bracket nut (1).
  4. Install the child seat latch bracket nut (1).

    Install the child seat latch bracket bolts (2) to each end of the latch bracket and also the latch bracket nut.

    Tighten

    Tighten the latch bracket nut and bolts to 42 N.m (31 lb ft).

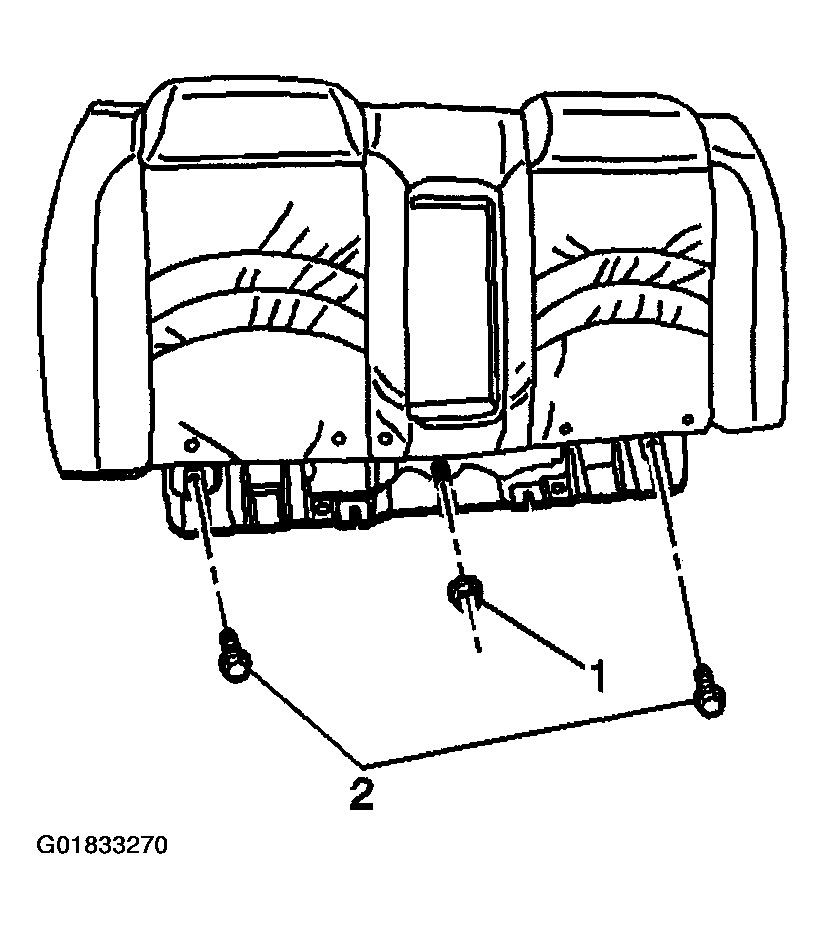

    Fig 1: Installing Child Seat Latch Bracket Nut And Bolts
    G01833270Courtesy of GENERAL MOTORS CORP.
  5. Install the rear center seat belts. Refer to SEAT BELT REPLACEMENT - CENTER REAR in Seat Belts.
  6. Fold the rear seat back cushions down.
  7. Install the rear seat latches to the rear seat back.
  8. Install the rear seat back latch bolts to the rear seat latches.

    Tighten

    Tighten the rear seat back latch bolts to 6 N.m (53 lb in).

  9. Fold the rear seat back cushions up.
  10. Inspect the rear seat for proper operation.
  11. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear .

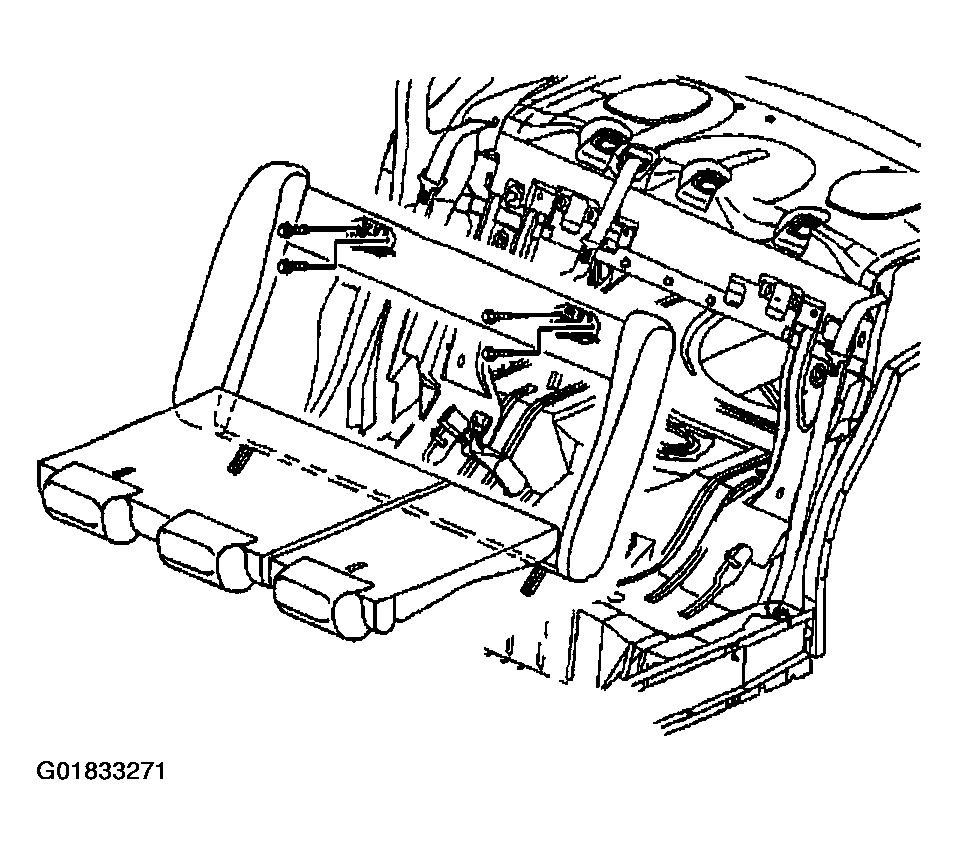

    Fig 2: Installing Rear Seat Back Latch Bolts To Rear Seat Latches
    G01833271Courtesy of GENERAL MOTORS CORP.
