Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Front Bucket .
  2. Open the J-retainers on both sides of the seat cushion cover.

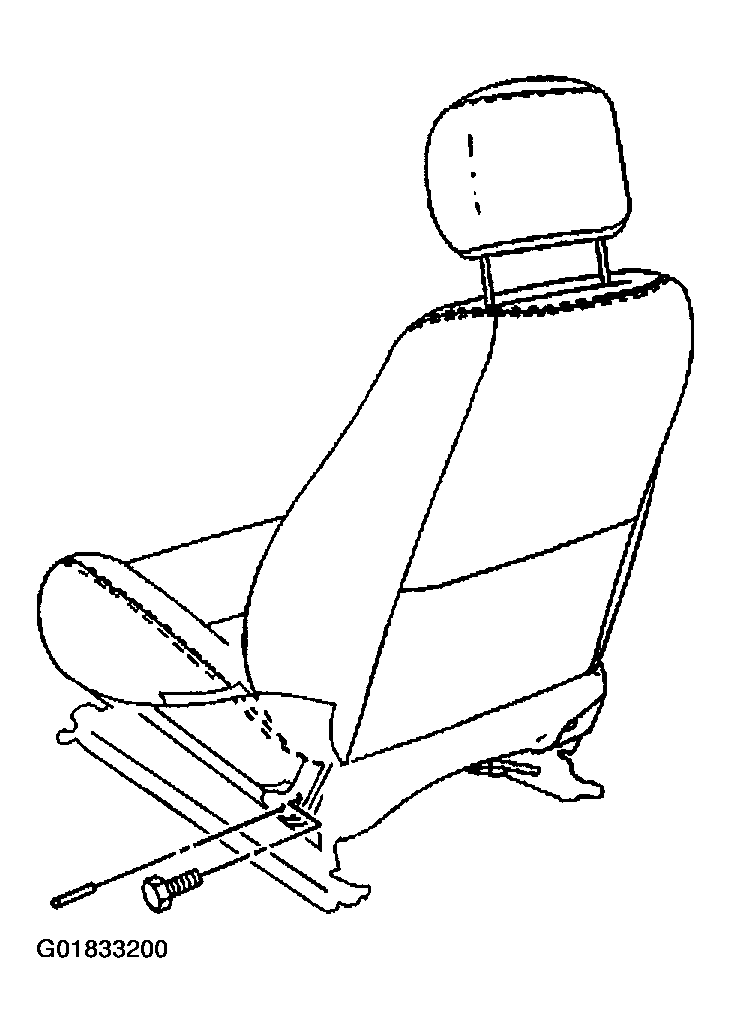

    Fig 1: Opening J-Retainers On Both Sides Of Seat Cushion Cover
    G01833200Courtesy of GENERAL MOTORS CORP.
  3. Remove the recliner to seat cushion frame roll pins. Discard the old roll pins.
  4. Remove the recliner to seat back frame pivot bolts.
  5. Remove the recliner from the seat cushion frame.

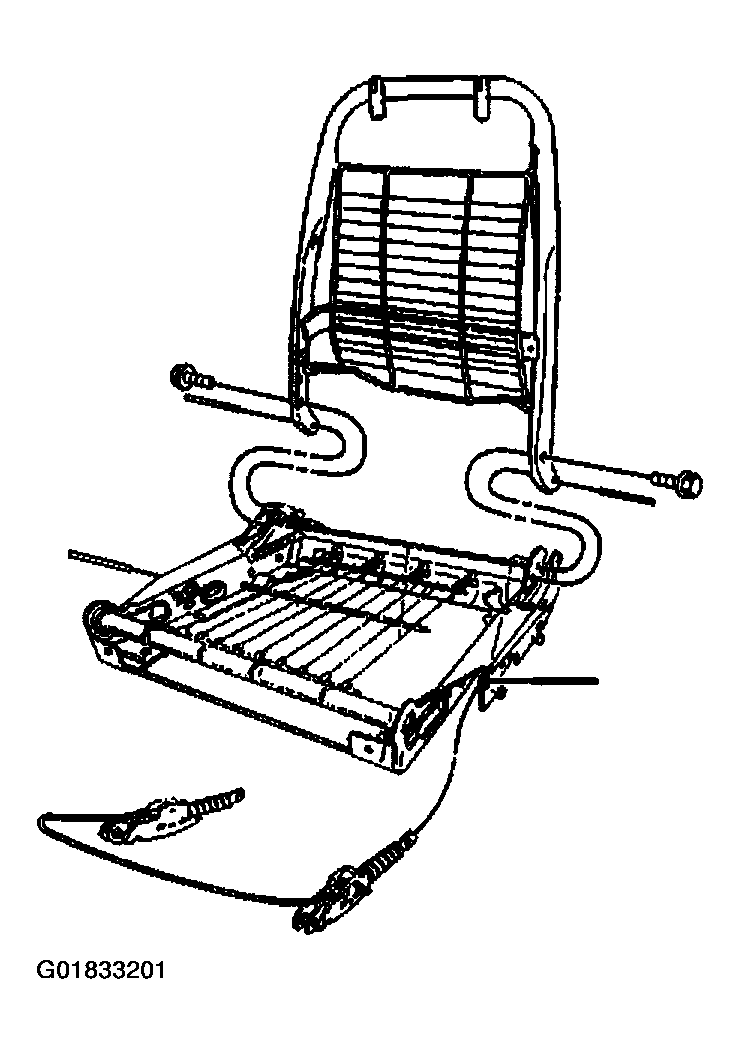

    Fig 2: Removing Recliner To Seat Cushion Frame Roll Pins
    G01833201Courtesy of GENERAL MOTORS CORP.
