Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat back recliner handle using a small flat-bladed tool to release retainer.
  2. Remove the front seat back recliner handle from the front seat.

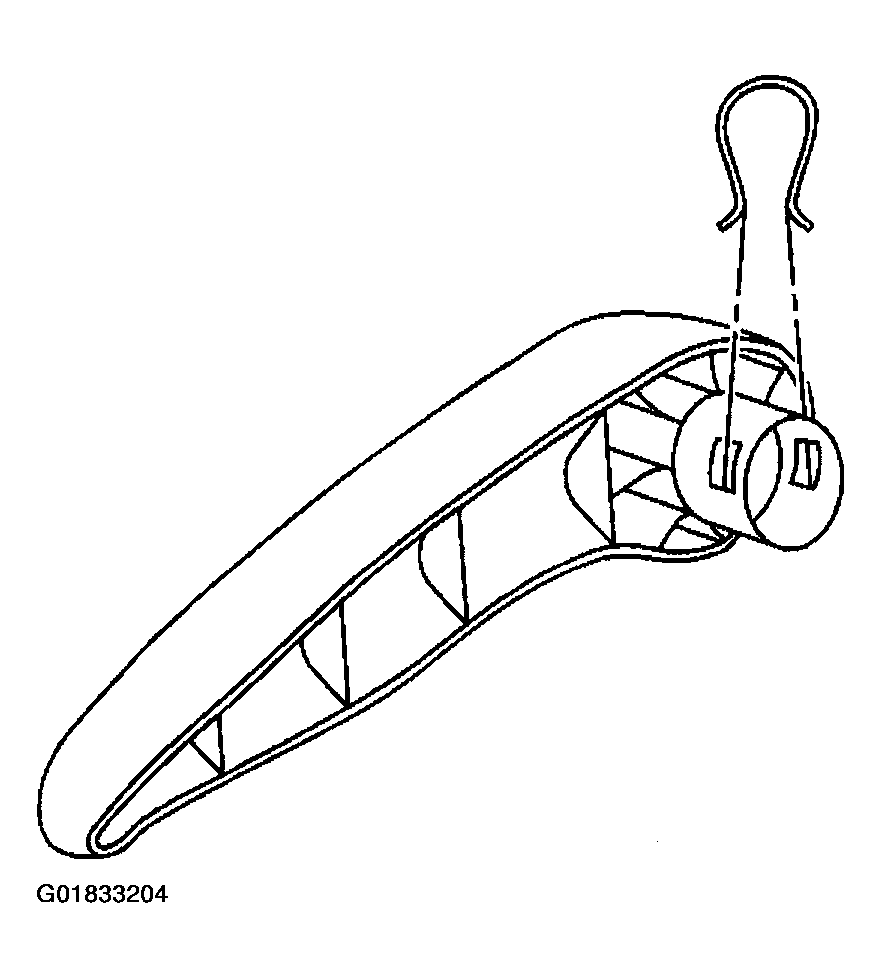

    Fig 1: Removing Retainer From Front Seat Back Recliner Handle
    G01833204Courtesy of GENERAL MOTORS CORP.
