Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .
  2. Remove the rear seat back cover from the rear seat back pad. Refer to Seat Back Cover Replacement - Rear .
  3. Remove the rear seat back pad from the seat back frame.

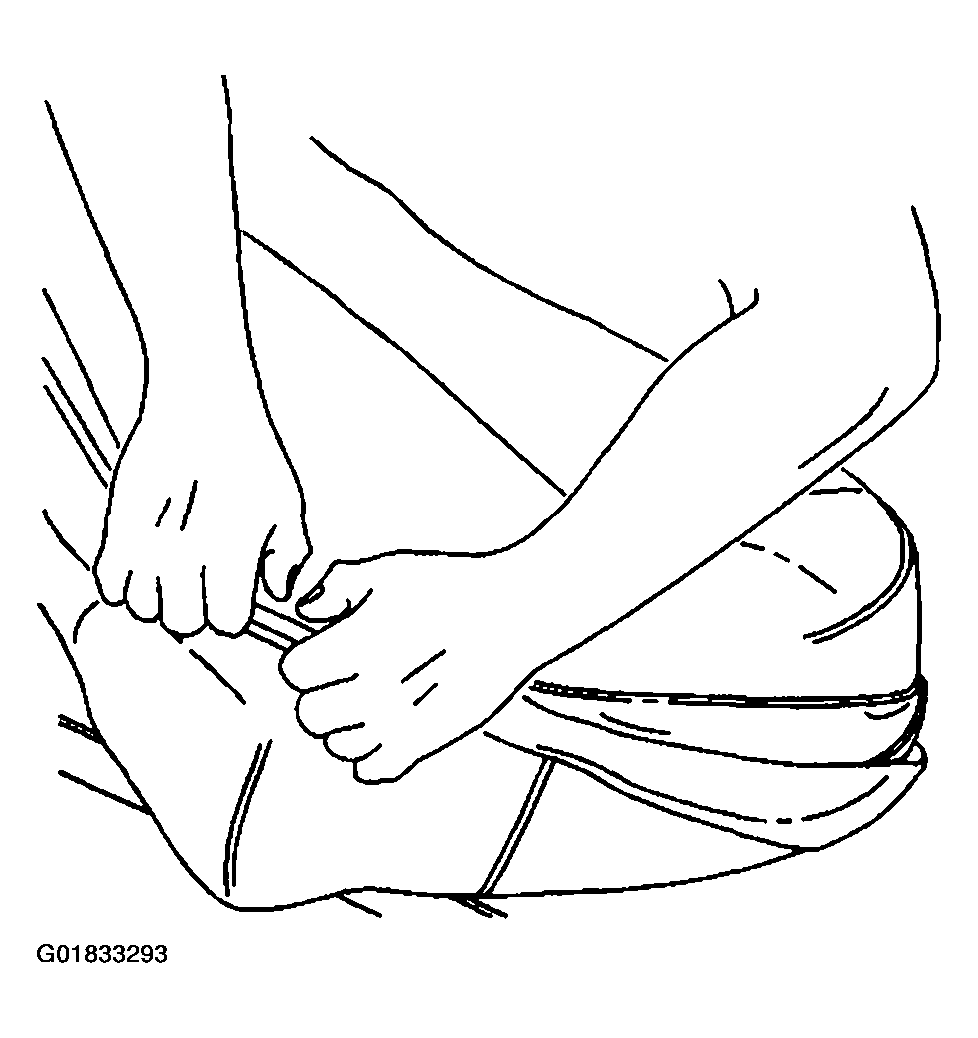

    Fig 1: Removing Rear Seat Back Cover From Rear Seat Back Pad
    G01833293Courtesy of GENERAL MOTORS CORP.
