Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back pad on the seat back frame.
  2. Install the rear seat back cover to the rear seat back pad. Refer to Seat Back Cover Replacement - Rear .
  3. Install the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .

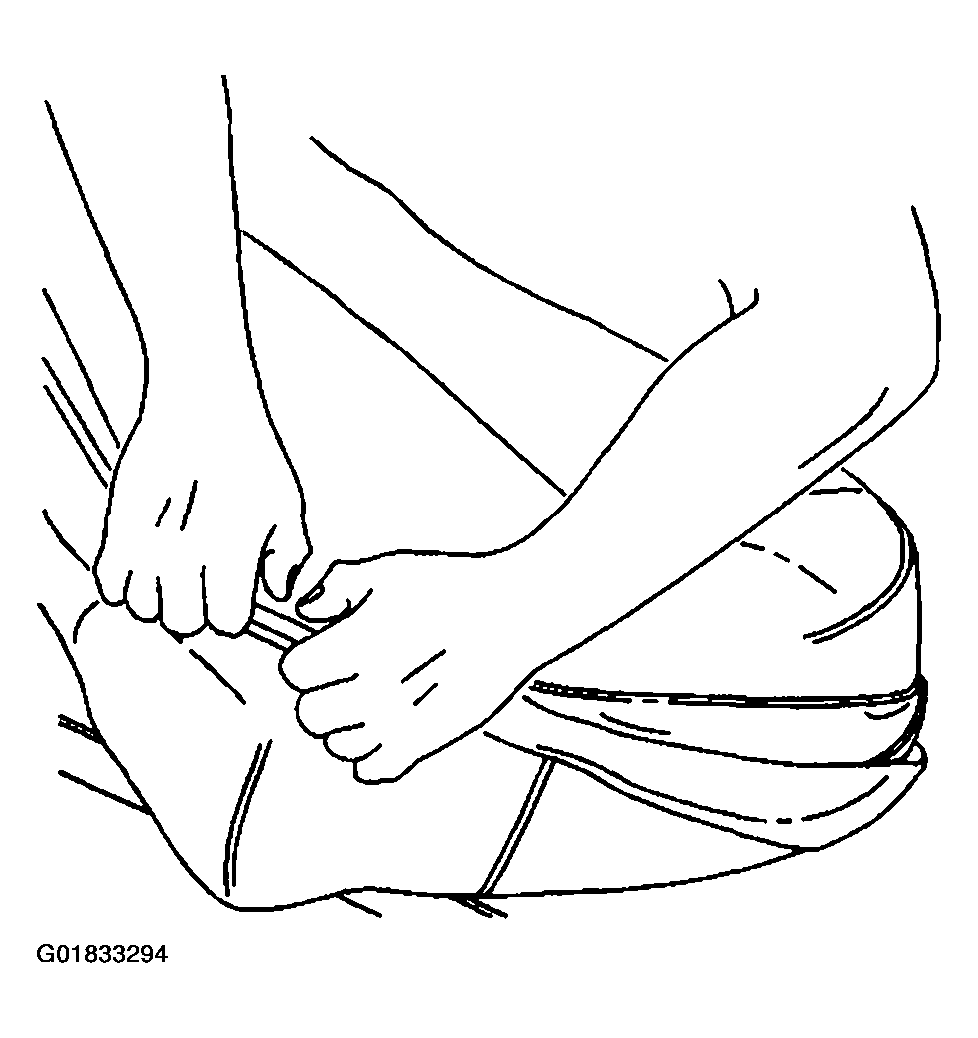

    Fig 1: Installing Rear Seat Back Cover To Rear Seat Back Pad
    G01833294Courtesy of GENERAL MOTORS CORP.
