Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .
  2. Remove the right and/or left rear seat back cover. Refer to Seat Back Cover Replacement - Rear .
  3. Remove the right and/or left rear seat back frame from the rear seat back pad.

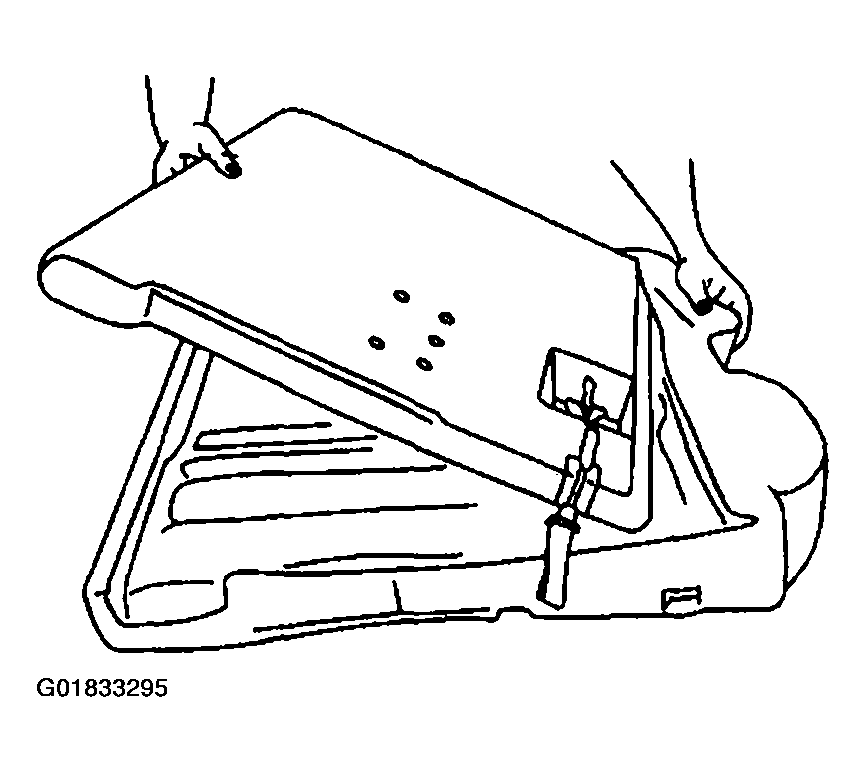

    Fig 1: Removing Right And/Or Left Rear Seat Back Frame From Rear Seat Back Pad
    G01833295Courtesy of GENERAL MOTORS CORP.
