Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back frame to the rear seat back pad.
  2. Reposition the rear seat back release cable pull strap to the right rear seat back pad.
  3. Install the right and/or left rear seat back cover. Refer to Seat Back Cover Replacement - Rear .
  4. Install the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .

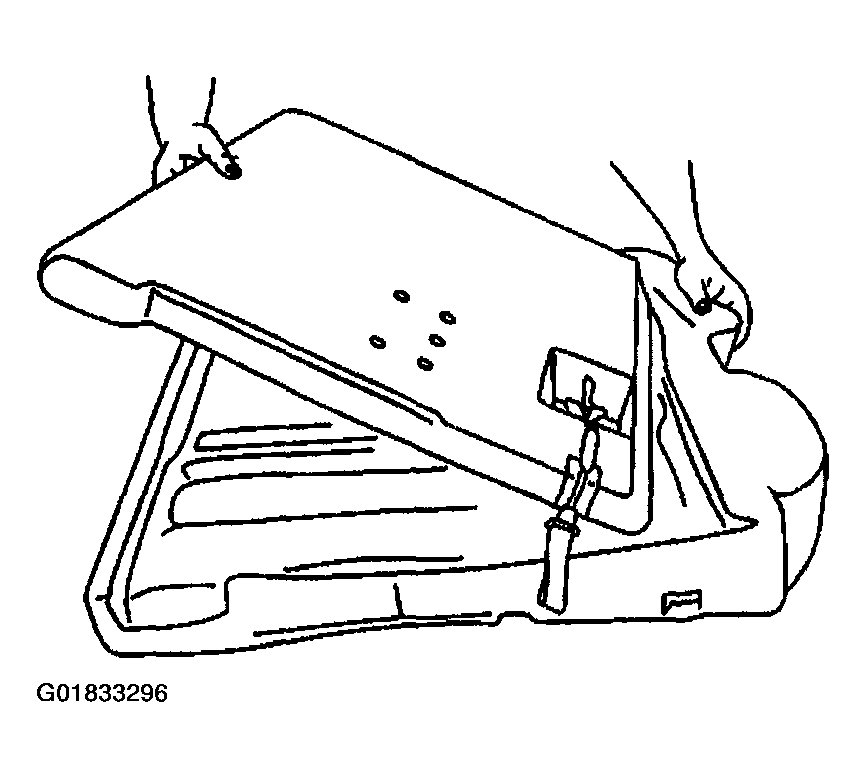

    Fig 1: Installing Rear Seat Back Frame To Rear Seat Back Pad
    G01833296Courtesy of GENERAL MOTORS CORP.
