Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat back cover. Refer to Seat Back Cover Replacement - Front .
  2. Remove the hog rings securing the seat back pad to the frame.

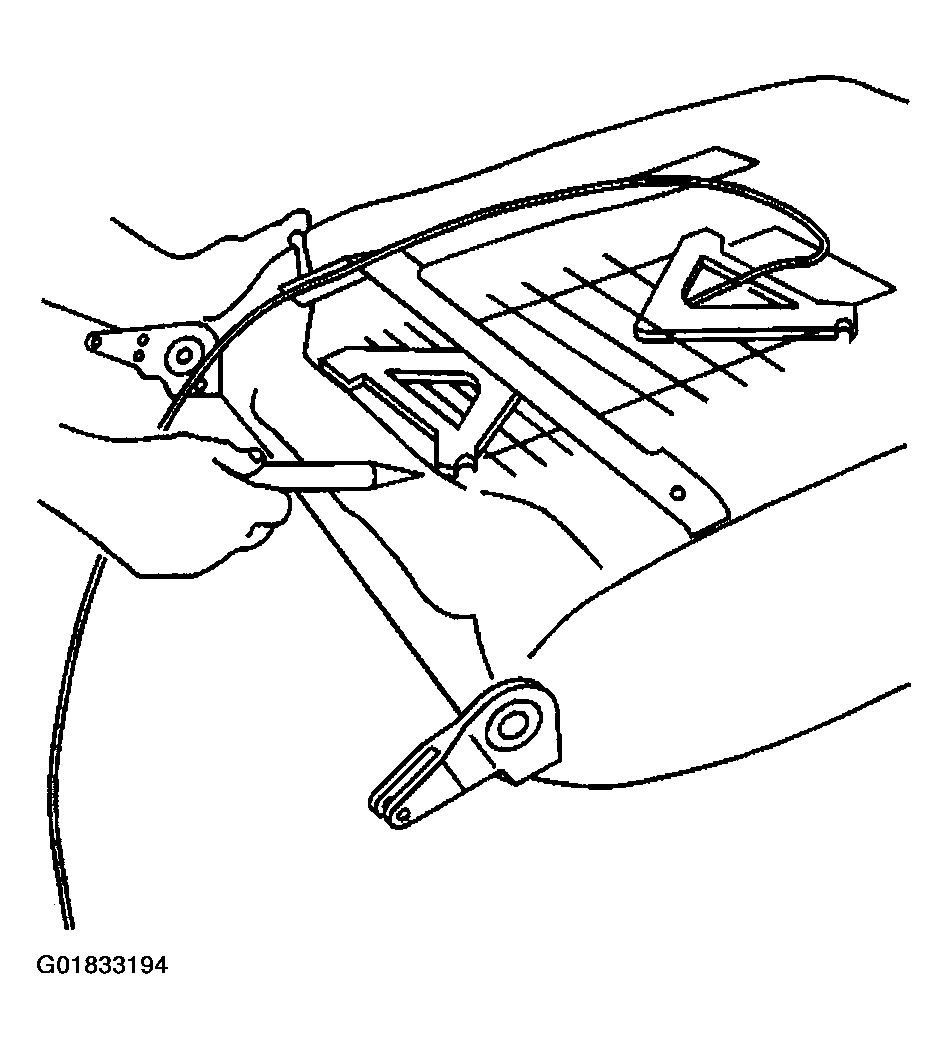

    Fig 1: Removing Hog Rings Securing Seat Back Pad To Frame
    G01833194Courtesy of GENERAL MOTORS CORP.
  3. Remove the front seat back pad from the front seat back frame.

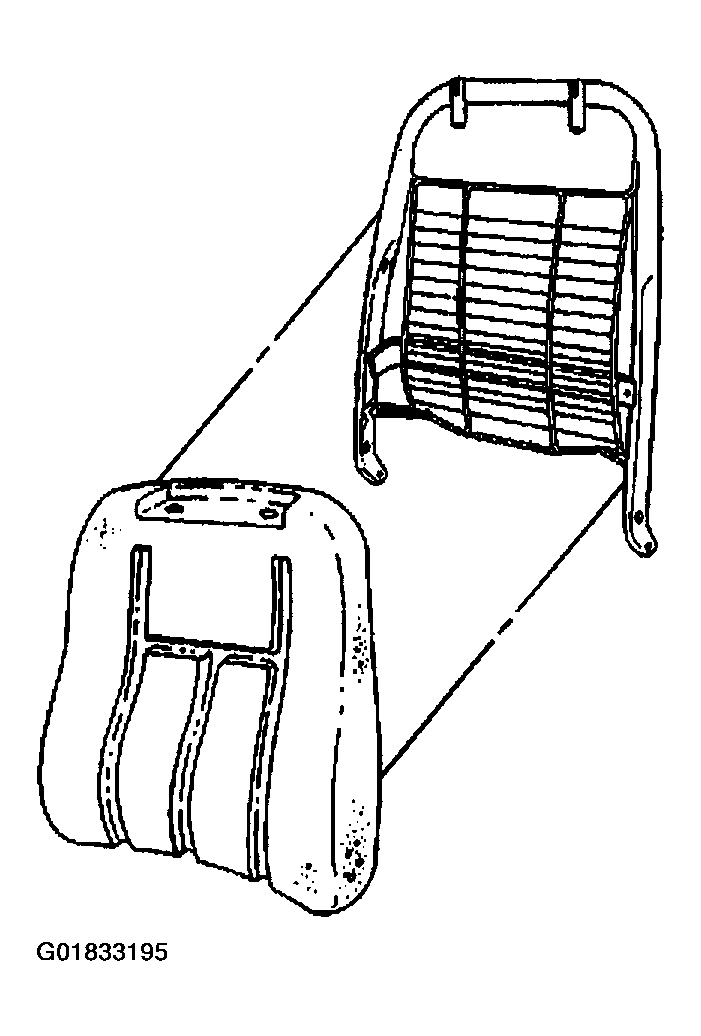

    Fig 2: Removing Front Seat Back Pad From Front Seat Back Frame
    G01833195Courtesy of GENERAL MOTORS CORP.
