Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat back pad to the front seat back frame.

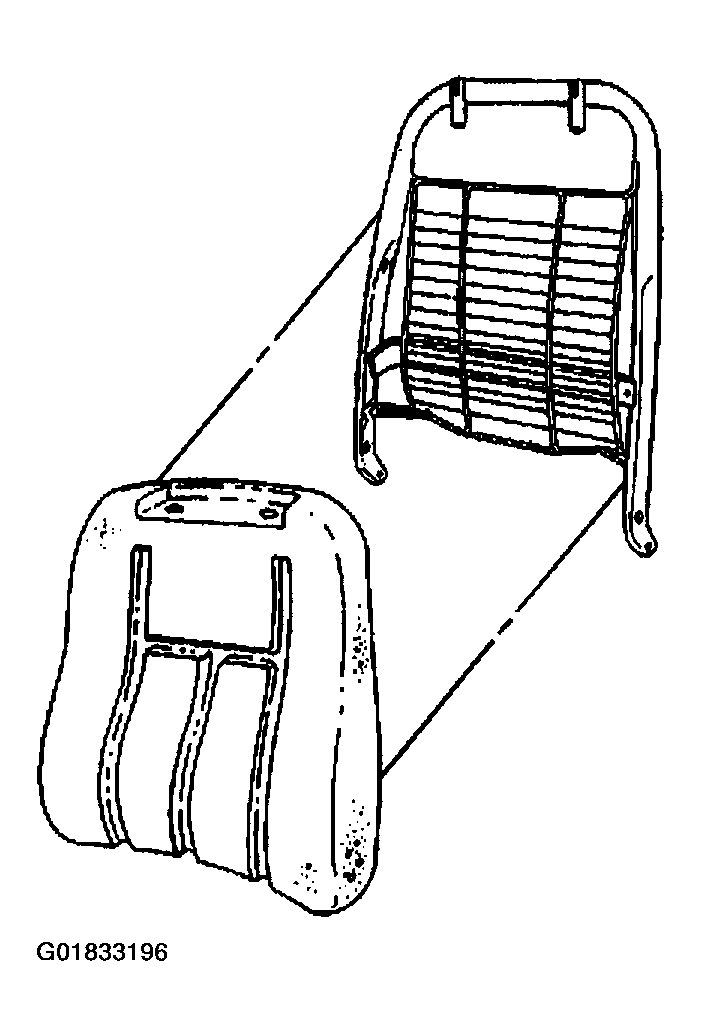

    Fig 1: Installing Front Seat Back Pad To Front Seat Back Frame
    G01833196Courtesy of GENERAL MOTORS CORP.
  2. Install the hog rings securing the seat back pad to the frame.
  3. Install the front seat back cover. Refer to Seat Back Cover Replacement - Front .

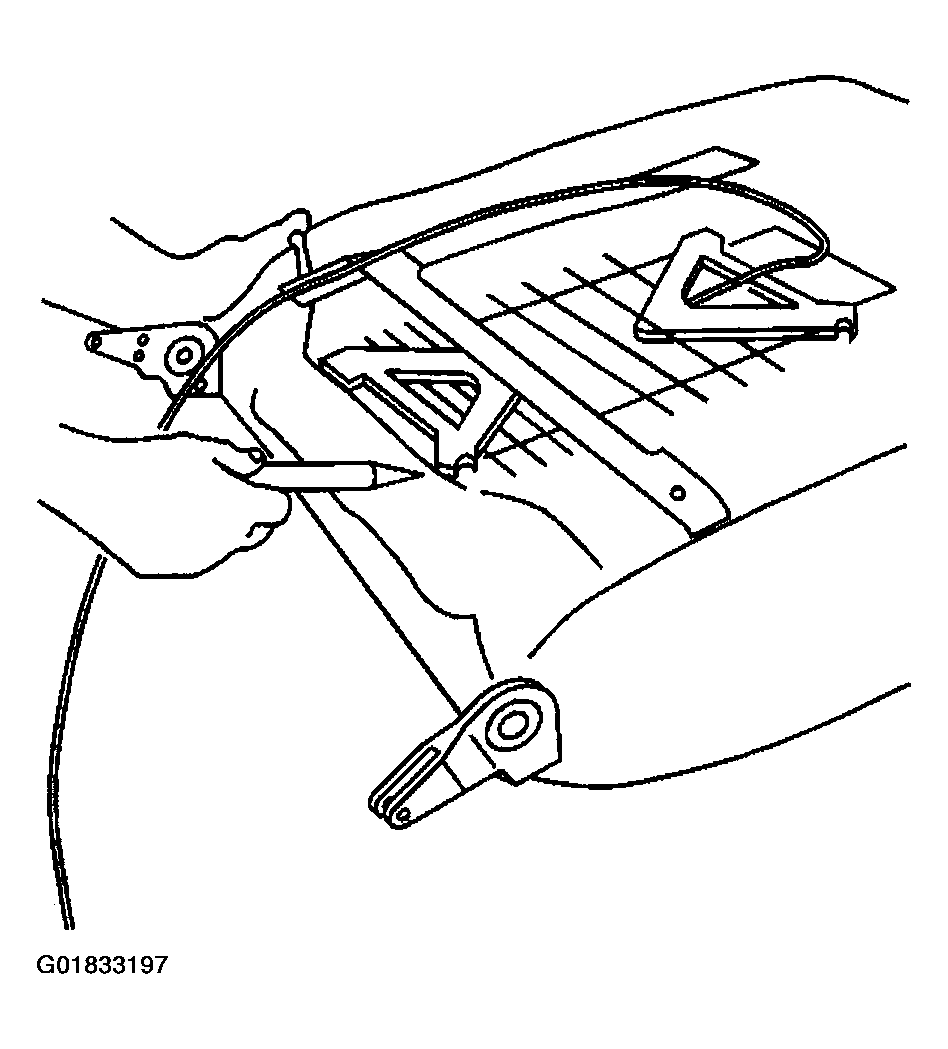

    Fig 2: Installing Hog Rings Securing Seat Back Pad To Frame
    G01833197Courtesy of GENERAL MOTORS CORP.
