Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .
  2. Lift the seat frame trim to expose the striker screws.
  3. Remove the striker screws (1).

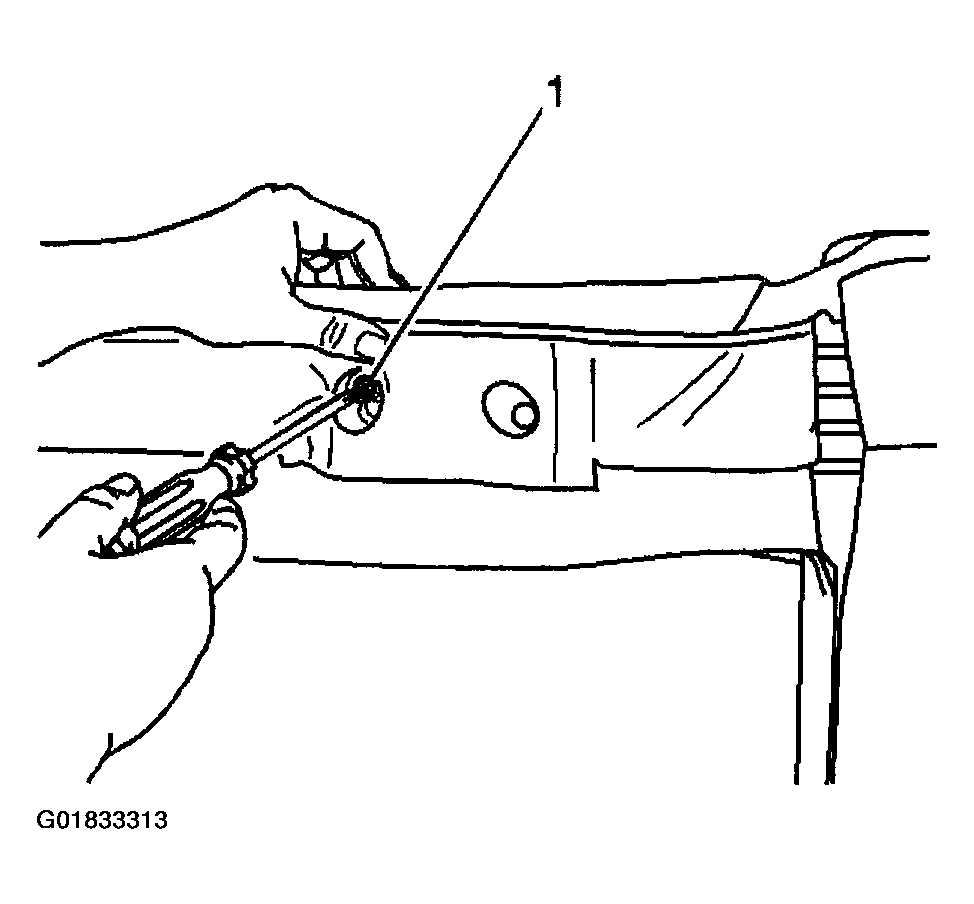

    Fig 1: Removing Striker Screws
    G01833313Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat back striker (1) and the spacer (2) from the seat back support.

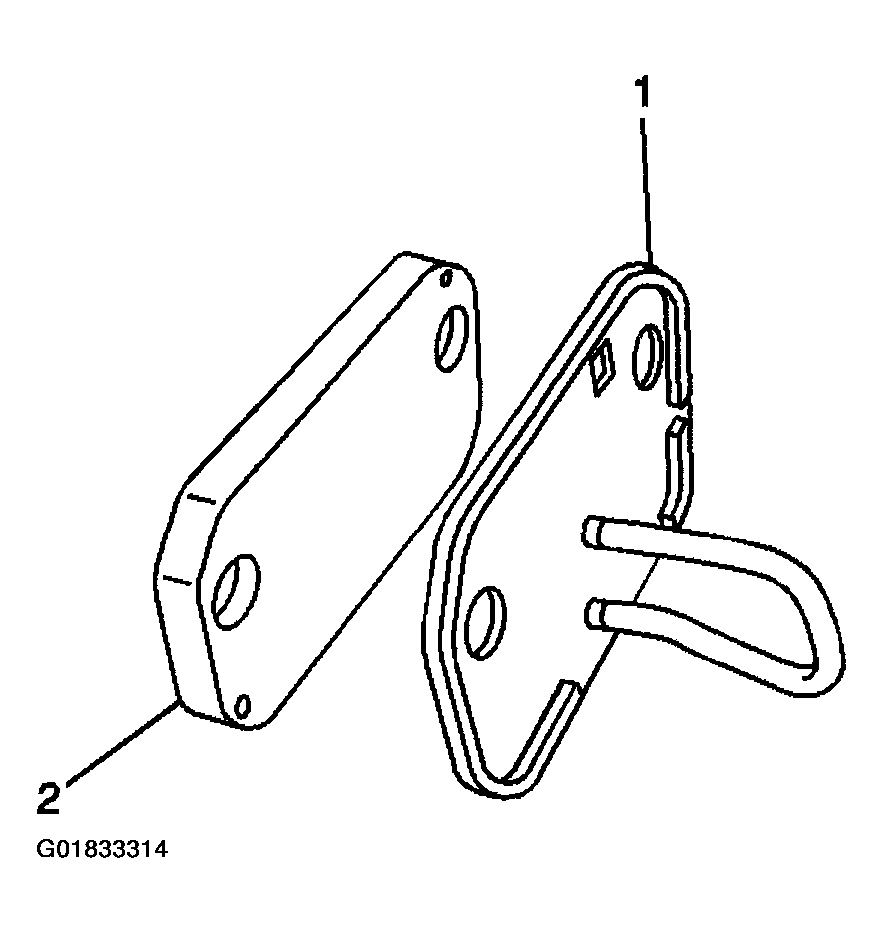

    Fig 2: Removing Seat Back Striker And Spacer From Seat Back Support
    G01833314Courtesy of GENERAL MOTORS CORP.
