Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat back striker and the spacer on the seat back support.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the seat back striker screws (1).

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  3. Reposition the seat frame trim to its original position.
  4. Install the seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding) .

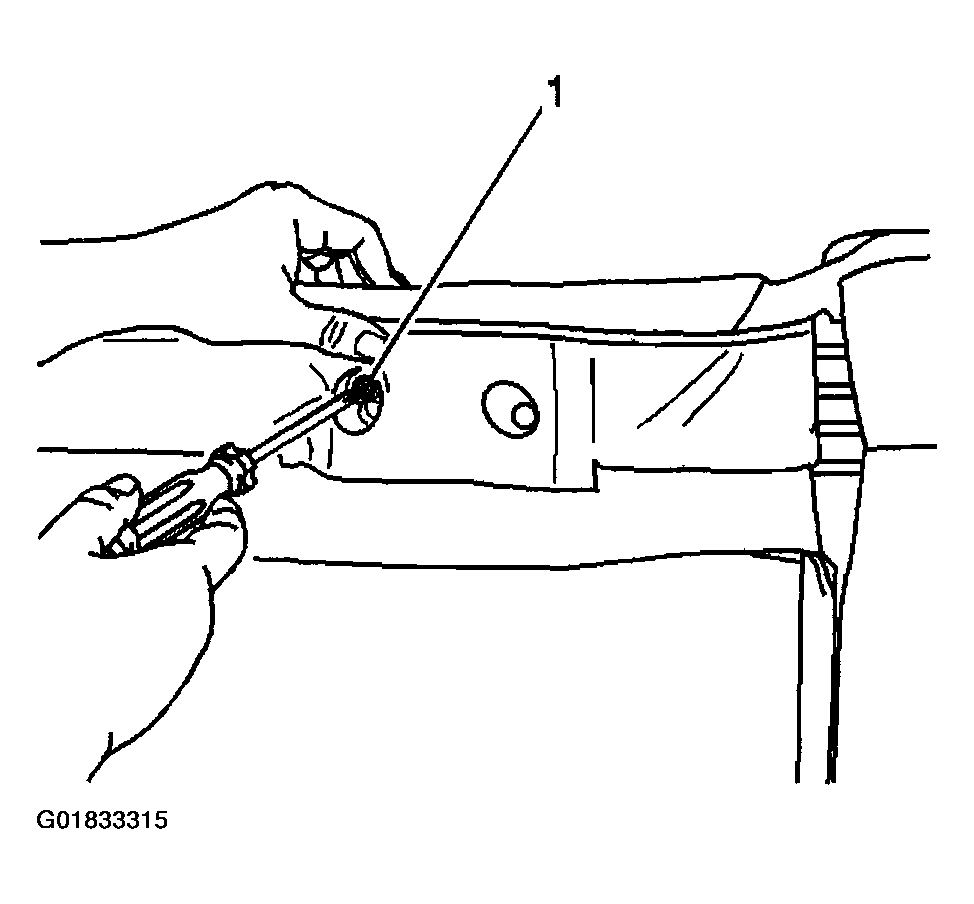

    Fig 1: Installing Seat Back Striker Screws
    G01833315Courtesy of GENERAL MOTORS CORP.
